pressure control for water pump/automatic pressure control

pressure control for water pump/automatic pressure control

Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:

1, Switching type : SPST NC or SPST NO (Selectable),

   Switch frequency & Response time: 60 Cycle /min, ≤100ms.

2, Pressure fitting: G1/4"-19BSP  Thread (Male ).

3, Electrical connection:  6.35X0.8  Male terminals (Brass &  Silver plating).

4, Voltage: 5-110VDC, 5-250VAC;

    Resistance load : 0.1A to 6A,

    Inductive load : 0.1A to 3A.

5, Fluid media: air,water, vacuum,etc.

6, Work Life: ≥100,000 Cycle.

7, Protection class : IP00 (No PVC jacket); IP54 ( Equipped with PVC jacket).

8, Ambient temperature: -20°C~55°C,

    Medium temperature: 0°C~80°C.

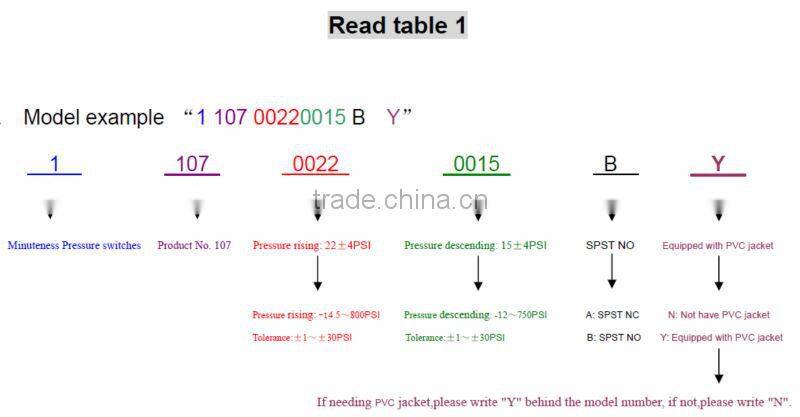

9, Model: (Read table 1).

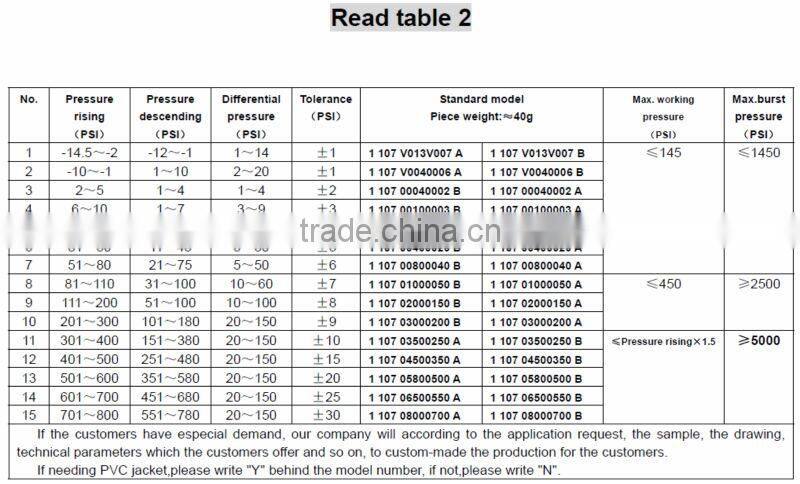

10,Working pressure: Vacuum -14.5PSI to +800PSI (Selectable,   Read table 2).

  After-sales service:
                   We promise to carry out the following after-sales service:
        Warranty: The warranty period is 12 months starting from the shipping date.
 The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.

 Certificate:

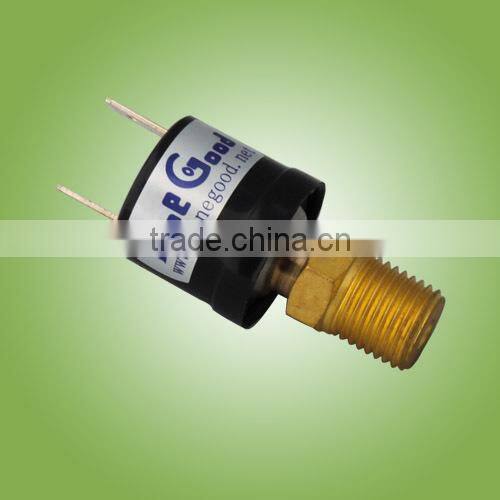

Production Photo:

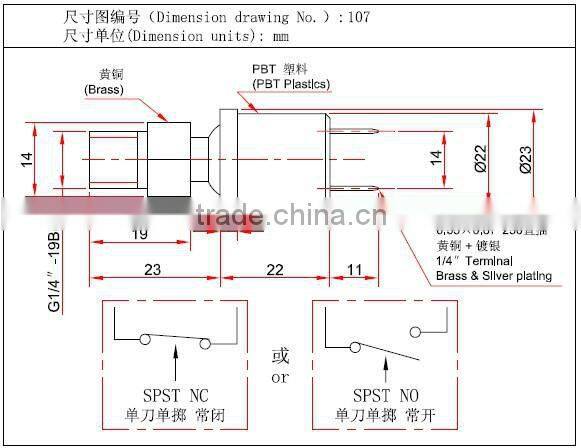

Dimension Drawing:
