Help CenterSteam Pressure Switch
Related Products
Specifications
steam pressure switchSuitable for Micro-pressure Vacuum steam.
easy installation
selectable switch model
stable performance
steam pressure switch
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPDT NC + NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: 1/8"-27NPT Thread (Female).
3, Electrical connection: UL 2517,3CX22AWG, Lead wire.
4, Voltage: 5-110VDC, 5-250VAC; Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A.
5, Fluid media: Air, Vacuum,etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP65.
8, Ambient temperature: -20°C~55°C, Medium temperature: -10°C~80°C.

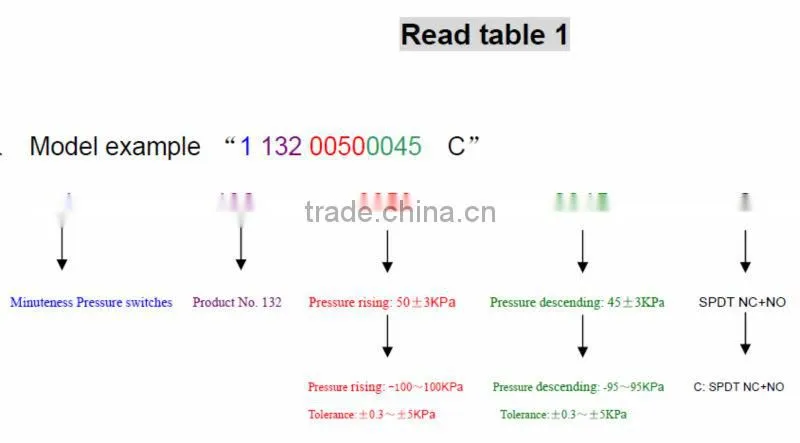

9, Model: (Read table 1).

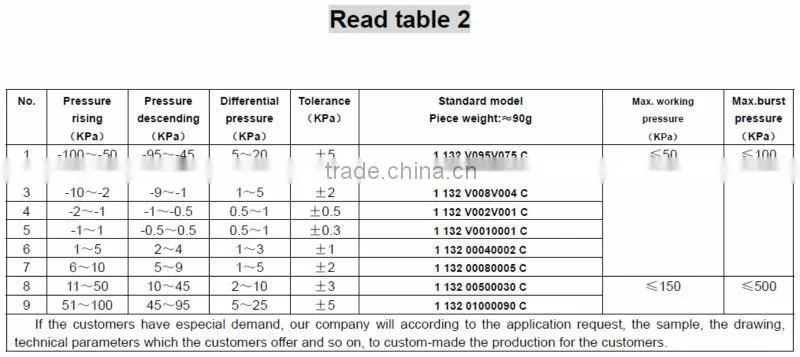

10,Working pressure: Vacuum -100KPa to +100KPa (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.
Certificate:
Production Drawing:

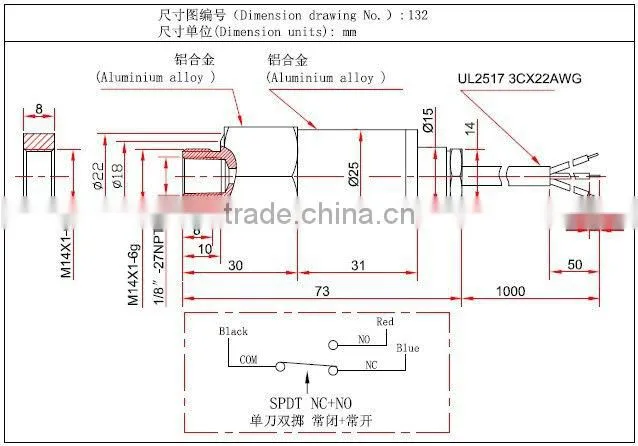

Dimension Drawing:
