electronic pressure switch

Specifications

electronic pressure switch
Suitable for Oil pressure & Vacuum
Pressure range: Vacuum -14.5 to 800PSI
stable performance

electronic pressure switch

Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:

1, Switching type : SPST NC or SPST NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.

2, Pressure fitting:  M12X1.25-6g  Thread (Male ).

3, Electrical connection:  H03VVH₂,2X0.5mm² , Lead wire.

4, Voltage: 5-110VDC, 5-250VAC;

   Resistance load : 0.1-6A,  Inductive load : 0.1-3A.

5, Fluid media: Air,Water, Vacuum,Oil,etc.

6, Work Life: ≥100,000 Cycle.

7, Protection class  :  IP65.

8, Ambient temperature: -20°C~55°C, Medium temperature: -10°C~80°C.

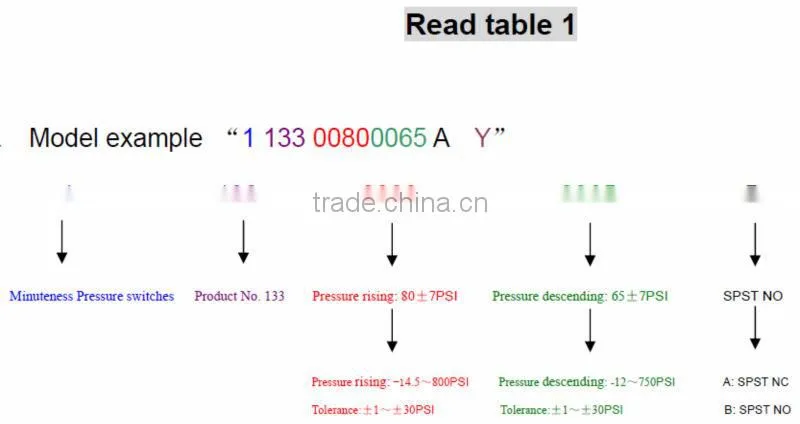

9, Model: (Read table 1).

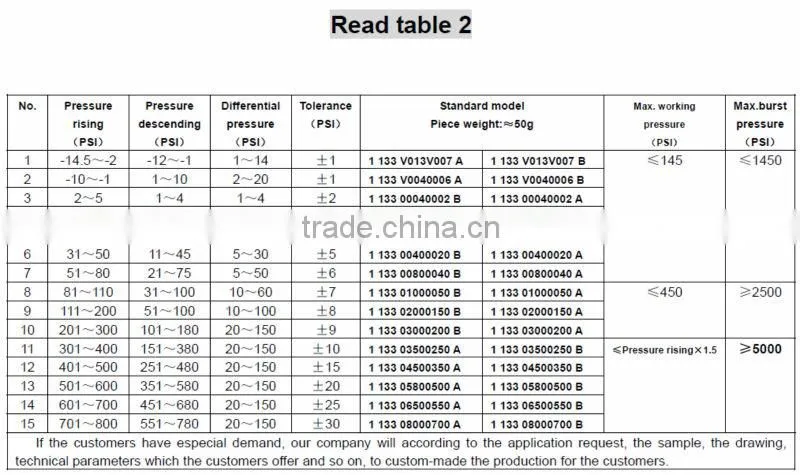

10,Working pressure: Vacuum -14.5PSI to +800PSI (Selectable,   Read table 2).



After-sales service:

              We promise to carry out the following after-sales service:

        Warranty: The warranty period is 12 months starting from the shipping date.

 The rate of Production Quality Problem is lower to 100PPM, replace the bad for free

Certificate:



Production Photo:

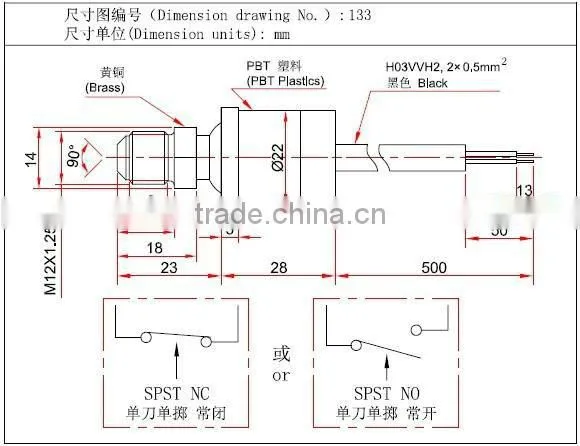

Dimension Drawing:
