Specifications
Suitable for water & gas & air & fire extinguishing agent,etc.Pressure range: Vacuum -14.5 to 3000PSI

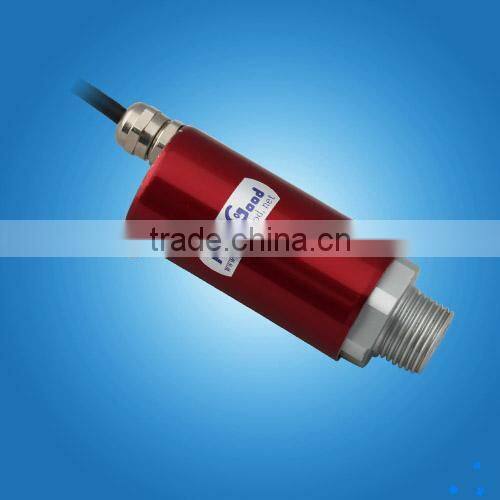

micro fire control pressure sensor switch
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPST NC or SPST NO or SPDT NC+NO or DPST or DPDT(Selectable),
Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: a variety of user-selectable.
3, Electrical connection: a variety of user-selectable.
4, Voltage: 5-110VDC, 5-250VAC;
Resistance load : 0.1-3A, Inductive load : 0.1-1.5A.
5, Fluid media: water & gas & air & fire extinguishing agent,etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP65.
8, Ambient temperature: -40°C~125°C(Selectable), Medium temperature: -40°C~150°C(Selectable).
9, Model: a variety of user-selectable.
10,Working pressure: Vacuum -14.5PSI to +3000PSI (Selectable).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.
Certificate:
Production Photo:

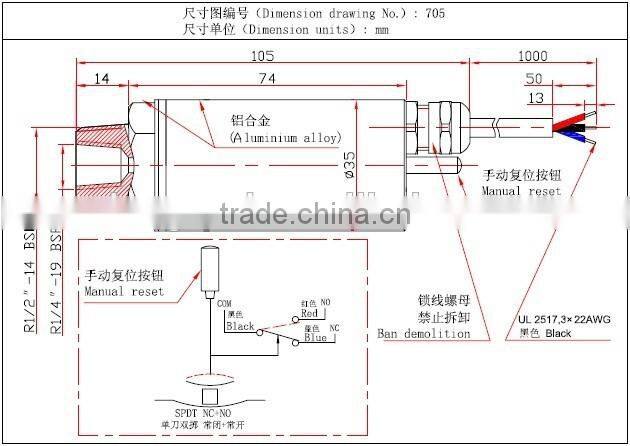

Dimension Drawing:
