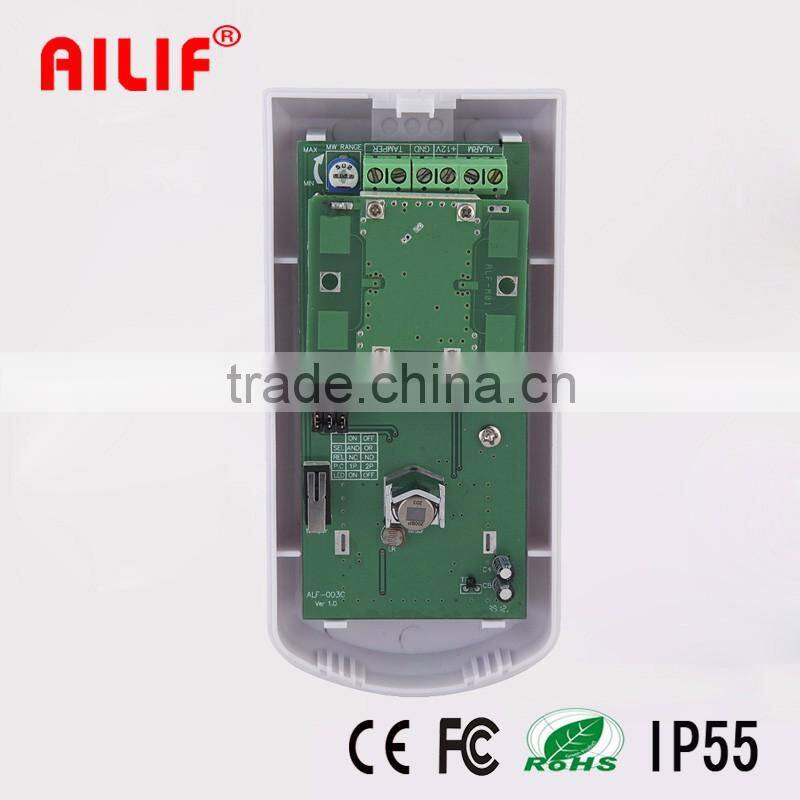

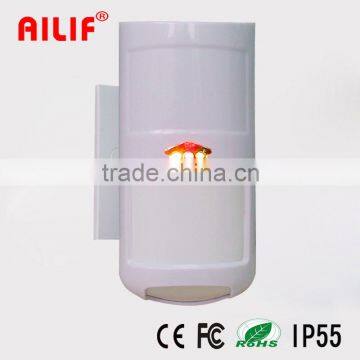

High Quality Long Distance PIR & Microwave detector Price (ALF-P101)
Parameters of High Quality Long Distance PIR & Microwave detector Price (ALF-P101)
The product is infrared with microwave detector. It works based on human body infrared spectrum and microwave doppler effect. It adopts advanced technology in signal processing, to prevent false alarm effectively for different environment factors.
The product matches with PRC national standard as bellow:
GB10408.1-2000
GB10408.6-2009
1. Adopting MCU control
2. Adopting doppler effect +energy analysis
3. Microwave adopting X-Band plane antenna
4. Microwave detecting range is adjustable
5. Auto temperature compensation function
6. Anti white light strength>6500LUX
7.LED ON/OFF optional
8. Pulse counting 1P/2P optional
9. Alarm trigger mode AND/OR optional
10.Alarm output mode NC/NO optional
11.Adopting SMT design,superhigh ability of diamagnetism
Specifications of High Quality Long Distance PIR & Microwave detector Price (ALF-P101)
| Model | ALF-P101 |
| Feature | Dual technology |
| Certificate | CE,FCC,ROHS |
| Working voltage | DC10V~16V(DC10V~24V optional) |
| Working current | ≤35mA (DC12V) |
| Detection distance | 12m |
| Detection angle | 100 degree |
| Mounting | Wall mounted |
| Mounting height | Suggest 2m |
| Type of sensor | Dual low noise pyroelectric infrared sensor |
| Detection mode | Doppler effect+ energy analysis |
| LED indicating | green is infrared; yellow is microwave; red is alarm |
| Alarm switch | electromagnetic relay or solid state optronics relay optional |
| Operating temperature | -10°C~+50°C(14°F to 122°F) |
| Environment humidity | ≤95%RH(no condensation) |
| Alarm output | NC/NO optional; Contact capacity: 28VDC, 100mA |
| Anti-dismantle switch | NC, no voltage output |
| Demension | 135mm*66mm*64mm |
AILIF ADVANTAGE
1.The same product,the lowest price.
2.The same price,the best quality.
3.The same quality,the fast delivery time.
To provide our customers with best price and quality is our long term target.
COMPANY INTRODUCTION
(1)Having our own factory which provides you the most competitive price.

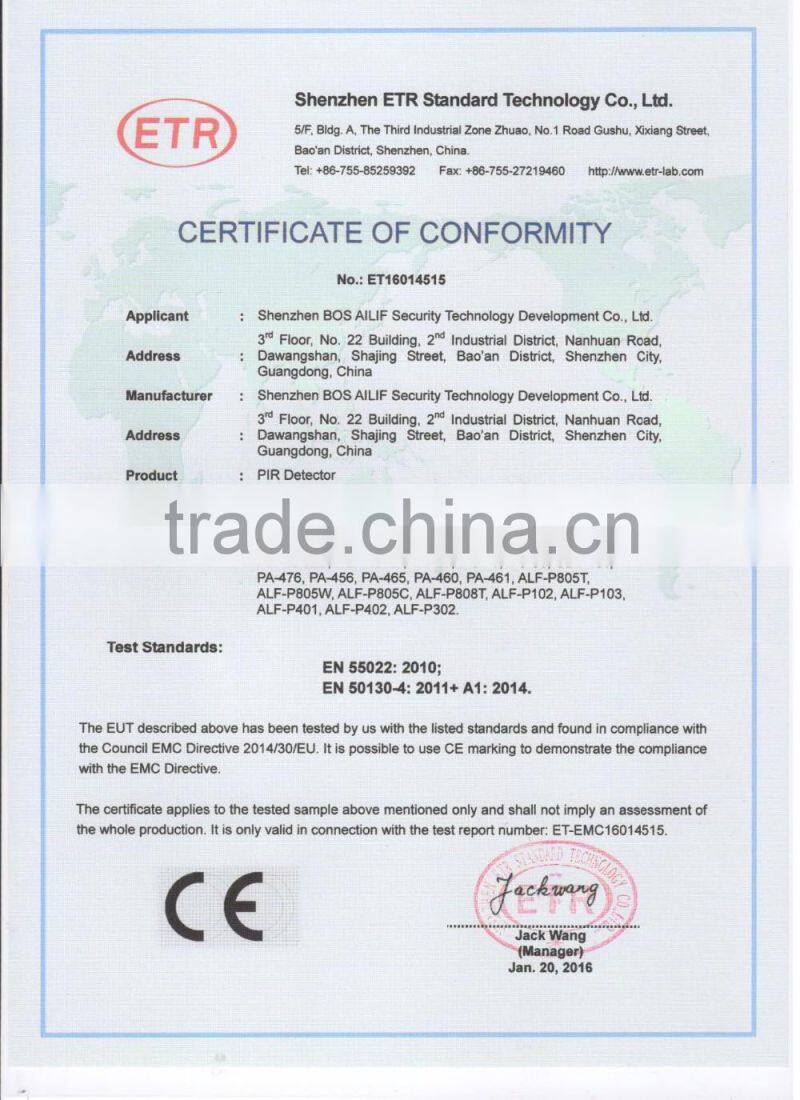

(2)CE,FCC,ROHS,IP55 for some products and ISO9001 certificate make you satisfied with quality when using our products.
(3)Professional team provide you the latest design and satisfying sevices.
Thanks for your time of viewing.
Please contact me freely to get more information.
