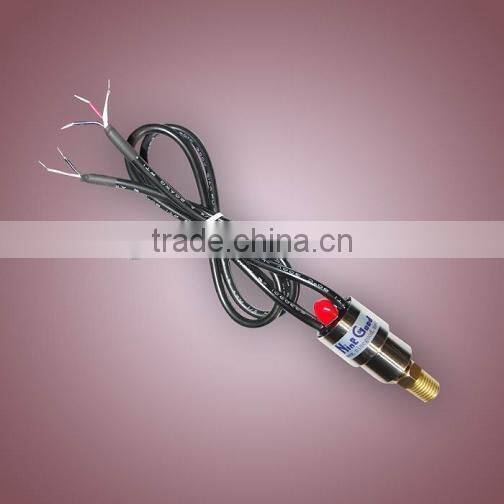

Air Condition Manual Reset Pressure Control Switch (212)

Specifications

air condition manual reset pressure control switch

Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:

1, Switching type : DPDT 1NC+2NO ,

   Switch frequency & Response time: 10 Cycle /min, ≤100ms.

2, Pressure fitting: 1/4"-18NPT  Thread (Male ).

3, Electrical connection:   UL 2464 20AWG, Lead wire .

4, Voltage: 5-110VDC, 5-250VAC;   Resistance load : 0.1-6A,  Inductive load : 0.1-3A.

5, Fluid media: Water,Gas,Fire extinguishing agent, etc.

6, Work Life: ≥100,000 Cycle.

7. Protection class : IP65.

8, Ambient temperature: -30°C~55°C, Medium temperature: -40°C~80°C.

9, Model: (selectable).

10,Working pressure: 10 to +800PSI (Selectable).

After-sales service:

              We promise to carry out the following after-sales service:

       Warranty: The warranty period is 12 months starting from the shipping date.

 The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.

Certificate:

Production Photo:

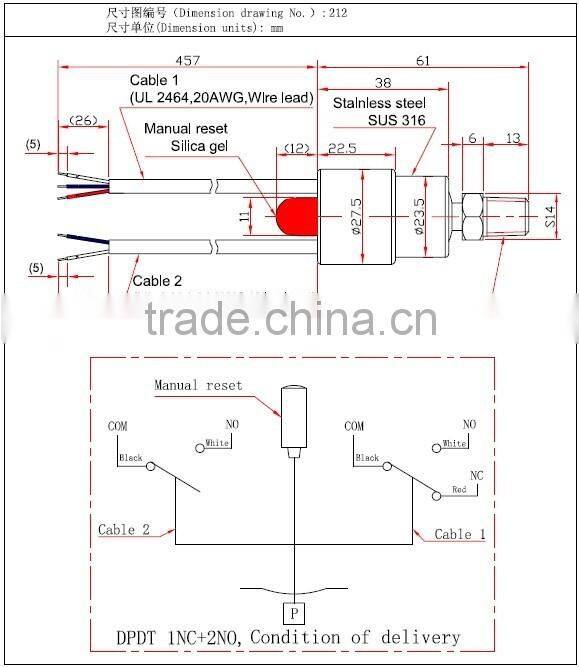

Dimension Drawing:
