Air Condition Manual Reset Pressure Switch 201

Specifications

air condition manual reset pressure switch

Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers

Technical Parameter:

1, Switching type : SPST NC or SPST NO (Selectable), Switch frequency & Response time: 10 Cycle /min, ≤100ms.

2, Pressure fitting: 7/16"-20UNF  Thread (Female).

3, Electrical connection:   UL 1015 18AWG, Lead wire .

4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC;

    Resistance load : 0.1A to 6A,  Inductive load : 0.1A to 3A.

5, Fluid media: R22, R134a, R407c, R410a, etc.

6, Work Life: ≥100,000 Cycle.

7,  Protection class : IP65.

8, Ambient temperature: -30°C~55°C, Medium temperature: -40°C~80°C.

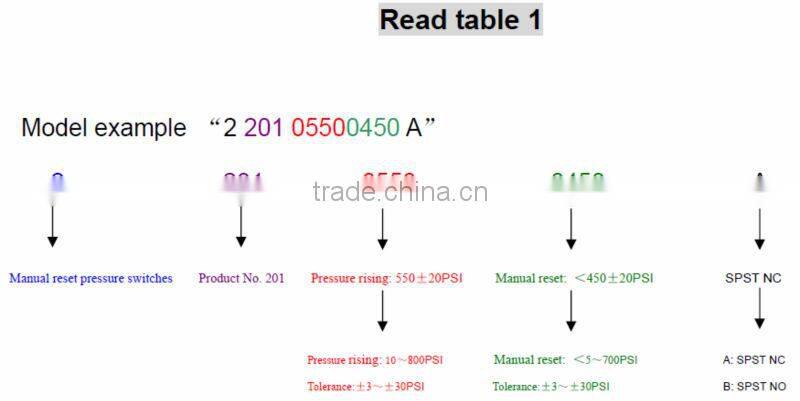

9, Model: (Read table 1).

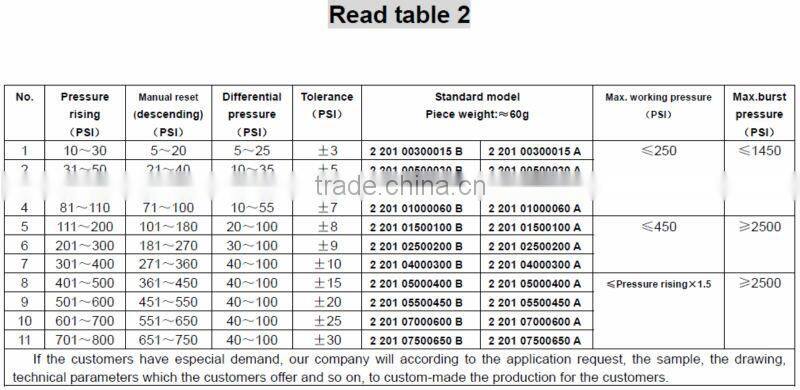

10,Working pressure: 10 to +800PSI (Selectable,   Read table 2).

  After-sales service:
              We promise to carry out the following after-sales service:
       Warranty: The warranty period is 12 months starting from the shipping date.
 The rate of Production Quality Problem is lower to 100PPM, replace the bad for free

Certificate:

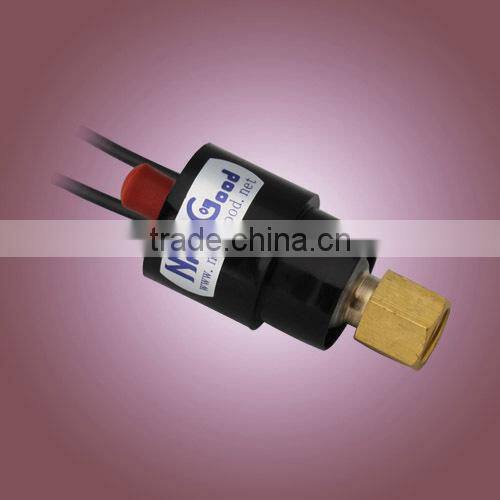

Production Photo:

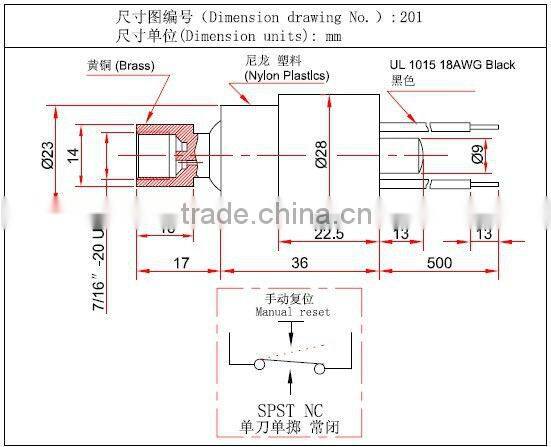

Dimension Drawing:
