Help CenterHVAC Manual Reset Pressure Switch (204)
Related Products
-
Air Compressor Manual Reset Pressure Controller Switch (206)US$ 13 - 21MOQ: 100 Pieces -
Fire Service Manual Reset Pressure Controller Switch (210)US$ 13 - 21MOQ: 100 Pieces
-
Fire Service Pressure Manual Reset Pressure Control 211US$ 13 - 21MOQ: 100 Pieces
-
HVAC Air Condition Refrigeration Manual Reset Pressure Control Switch (208)US$ 5 - 8MOQ: 100 Pieces
-
HVAC Air Condition Manual Reset Pressure Controller Switch (207)US$ 5 - 8MOQ: 100 Pieces
Specifications
Suitable forAir - Conditioning
Refrigeration Equipment
Product No.204
Pressure range: 10 to 800PSI(Selectable)

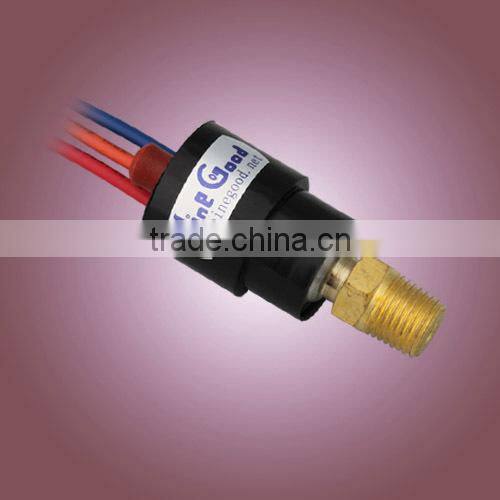

HVAC manual reset pressure switch
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPDT NC+NO , Switch frequency & Response time: 10 Cycle /min, ≤100ms.
2, Pressure fitting: 1/4"-18NPT Thread (Male ).
3, Electrical connection: UL 1015 18AWG, Lead wire .
4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC;
Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A.
5, Fluid media: R22, R134a, R407c, R410a, etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP65.
8, Ambient temperature: -30°C~55°C, Medium temperature: -40°C~80°C.

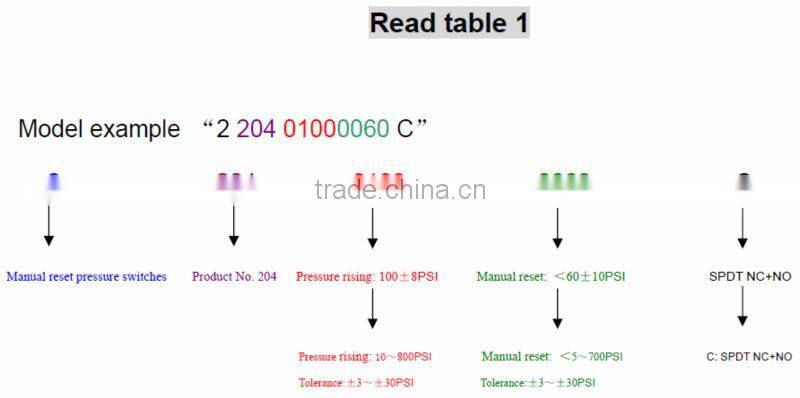

9, Model: (Read table 1).
10,Working pressure: 10 to +800PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free
Certificate:
Production Photo:

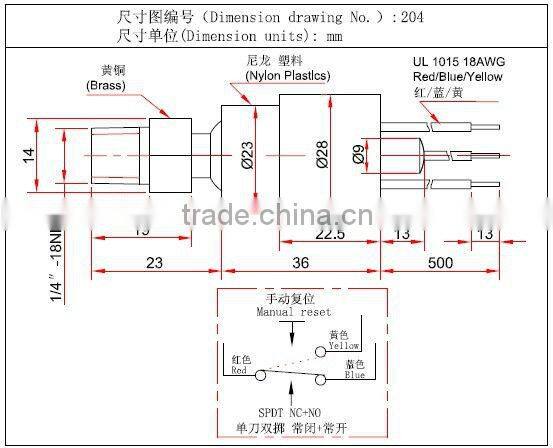

Dimension Drawing:
