Submersible Pump Pressure Switch
- Guangzhou or Shenzhen
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | NineGood | |
| Model Number | 145 | Max. Current | 6A | |
| Max. Voltage | 250VAC | Max. Working Pressure | 800PSI |
Product Description
Specifications
submersible pump pressure switchSuitable for air, vacuum, pump.water,
stable performance
easy installation.
compact size
submersible pump pressure switch
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPST NC or SPST NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: 1/4"-18NPT Thread (Male ).
3, Electrical connection: H03VV-F,2X0.75mm2 , Lead wire.
4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC;
Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A.
5, Fluid media: ,Water, Vacuum,Oil,etc.
6, Work Life: ≥100,000 Cycle.
7, Protection: IP65.
8, Ambient temperature: -40°C~55°C, Medium temperature: -40°C~80°C.
9, Model: (Read table 1).
10,Working pressure: Vacuum -14.5PSI to +800PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free
Certificate:

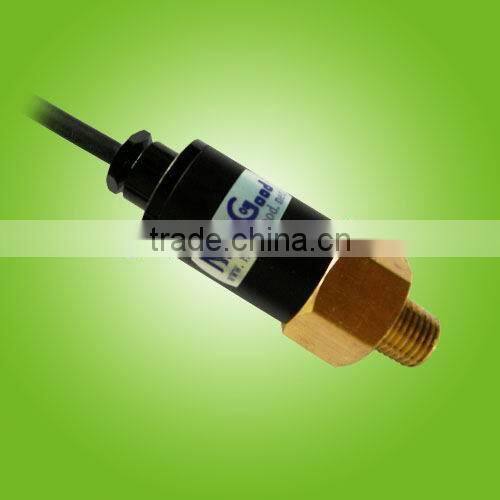

Production Photo:

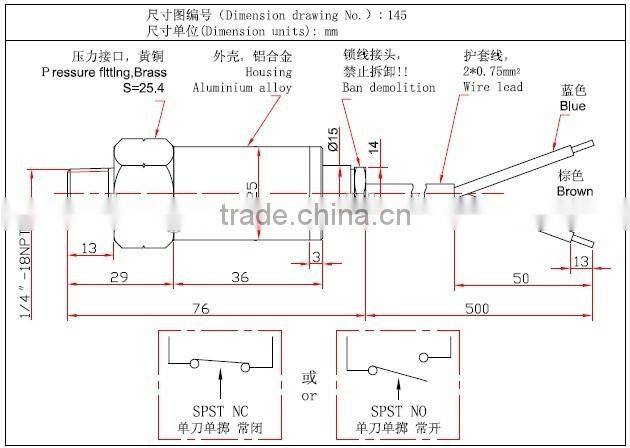

Dimension Drawing:
