Specifications
1) SUS 304 CE certificate2) Capacity: 2000-40000BPH.
3) Volume: 200-2500ml
4) PET bottle, Glass Bottle
Bottle Tilting Chain
1) CE certificate
2) ISO9000: 2000 Certificate
3) Volume: 0.25-2.5L
4) PET bottle, Glass Bottle , Can Bottle
5) Automatic system
6) High efficiency , easy maintenance
General description

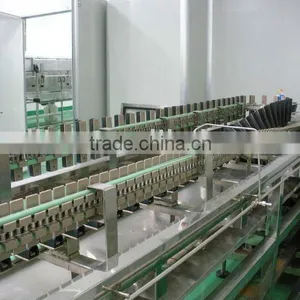

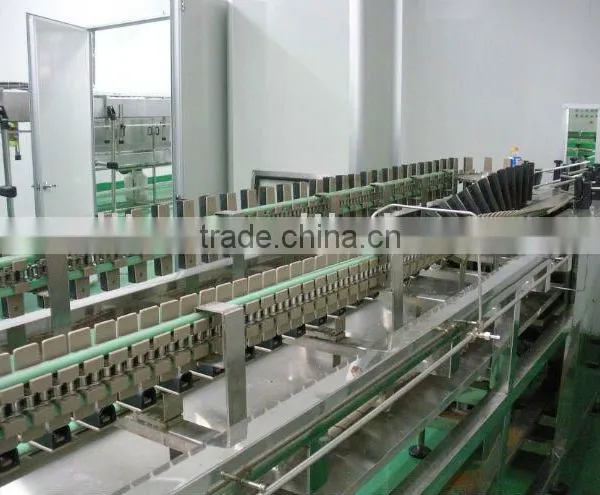

Bottle tilting sterilizer is special equipment studied for hot filling production line according to technological features of the hot filling line. The bottle tilting sterilizer tilts the products after filling and capping, and makes the second sterilization at a certain period making using its high temperature, softening the gasket of the bottle cap, which improves the tightness of the bottle cap and bottle body, and make sure of the quality of the product.
Model | Production capacity b/h(500ml) | Sterilization times | Power consumption kw | Dimension L × W × H mm | Weight kg |
DP-6 | 6000 | 30 | 1.5 | 6000×650×1300 | 620 |
DP-8 | 8000 | 30 | 1.5 | 8000×650×1300 | 780 |
DP-10 | 10000 | 30 | 1.85 | 10000×650×1300 | 940 |
DP-12 | 12000 | 30 | 2.25 | 12000×650×1300 | 1100 |
DP-16 | 15000 | 30 | 2.25 | 16000×650×1300 | 1420 |
DP-18 | 20000 | 30 | 2.95 | 18000×650×1300 | 1580 |
