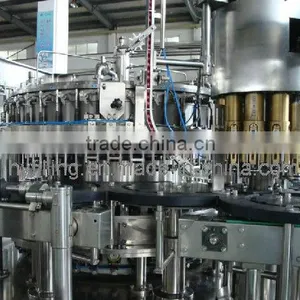

Help CenterPET CSD Filling Machine
Related Products
Specifications
1) CE certificate2) ISO9000: 2000 Certificate
3) Volume: 0.25-2.5L
4) PET bottle, Glass Bottle ,Can Bottle
DCGN series carbonated soft drink filling machine
General description
This model special for carbonated beverage filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.
Main features
Rinser
This machine adopts rotary washing method, mainly used for water new bottle rinsing purpose, and then sent the bottles to filling part.
PET bottles enter the machine by distributing bottle star wheel, and making the bottle mouth adown with clamp pincers and overturning device by grip the bottles mouth. After sanitary water rinse and drain, automatically turn to the bottle up, bottle after a star wheel conveyor to the filling machine. Mainly parts of equipment structure, washing media material, external protect frame are high-quality stainless steel, open-gear transmission.
Into-water pipes has pressure meter. Washing machine has water defrosting tray for recycling washing water. Washing water capacity per bottle is 105ml/s(0.25Mpa hour)
Technical parameters
Rating output: 5000-5500(0.5L)
Washing heads: 18
Washing time: 2-2.5s
Filling valve heads: 18
Filling valve speed: 140-150ml/s
Capping heads: 6
Filling temperature: 0-4°C
Suitable bottle type D=50-100mm, H=150-320mm
Capping torque: 0.6-2.8Nm (adjustable)
Installed capacity: 3.37KW
Compressed air consumption: 0.25Nm3/min (when 0.6MPa)
Water consumption: about 1.5m3/h for washing (0.2-0.25Mpa)
Overall dimension: 2500x2100x2700mm
Weight: 5.5T
Description |
Supplier |
PLC |
Mitsubishi, Siemens |
Touch screen |
Mitsubishi, Siemens, PROFACE |
Frequency converter |
Mitsubishi, Siemens, Danfoss |
Air switch |
Schneider |
Breaker |
Siemens |
Contactor |
Siemens |
Photoelectric switch |
Omron, Keyence, P+F |
Approach switch |
Truck |
Main bearing |
NTN |
Lubrication bearing |
IGUS |
Sealing |
Sealtech |
Pneumatic components |
Camozzi |
