Help CenterGalvanized Flange Rubber Joint
Related Products
Specifications
galvanized flange rubber joint1.flexible rubber joint
2.hifh quality
3.good price
4.used for pipe line industry

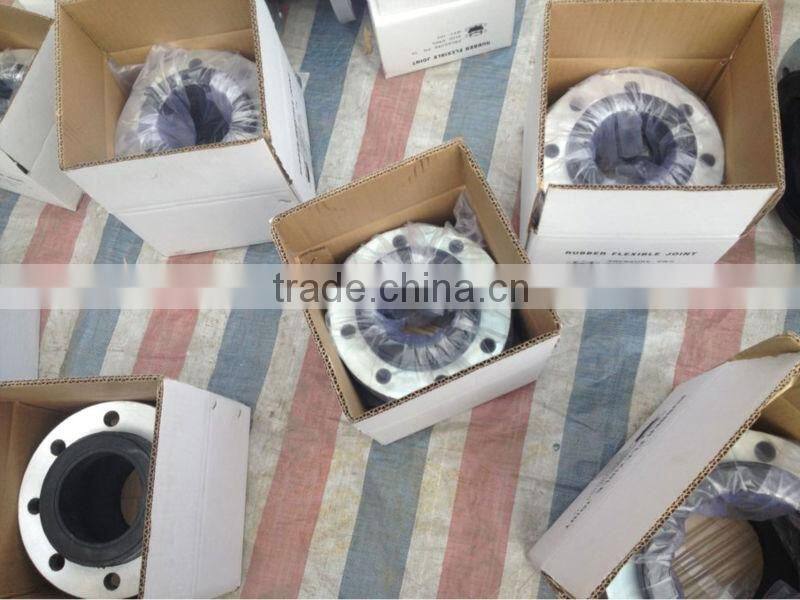

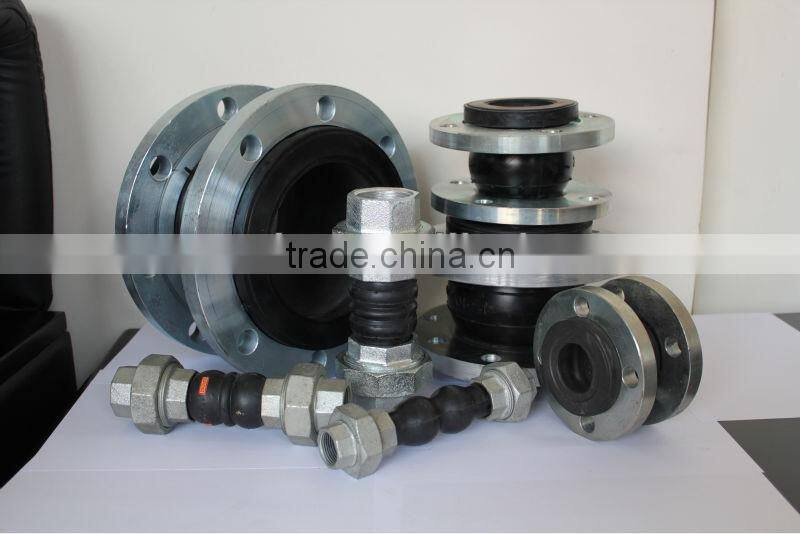

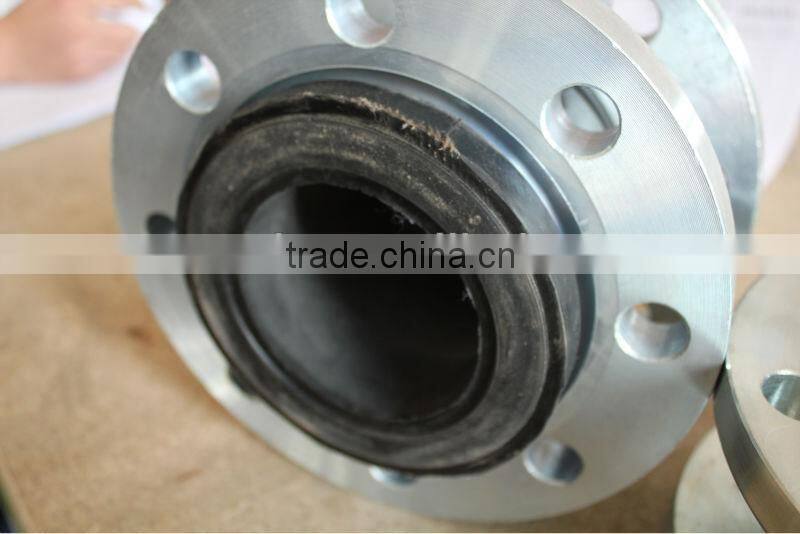

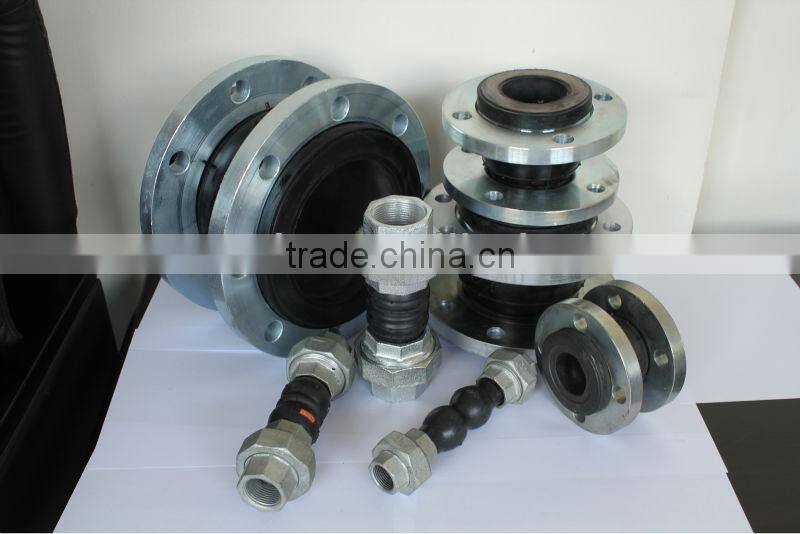

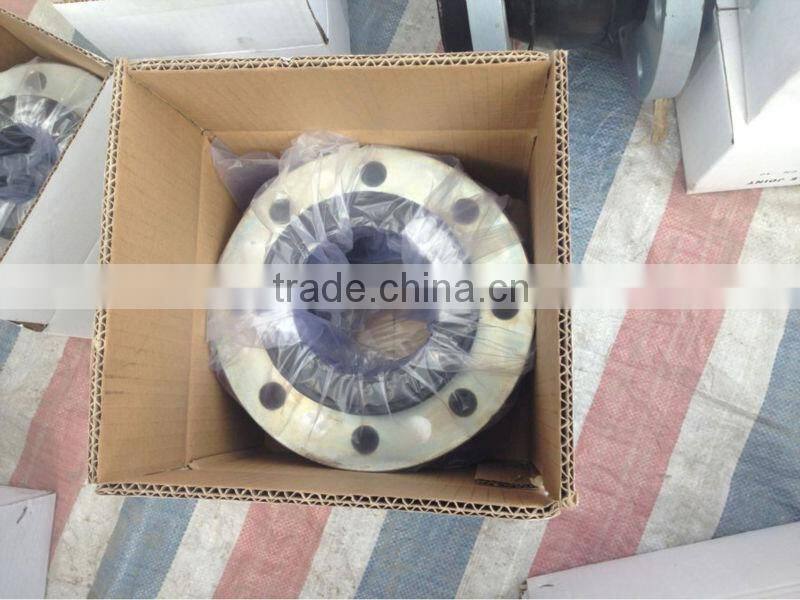

galvanized flange rubber joint
1.CE&ISO CERTIFICATE
2.offer OEM production
duce as you enquired
Outer & Inner Rubber: EPDM,NR,NBR,NEOPRENE
Casing Ply. : Nylon Polyester Fabric
Strengthen Ring: Steel wire ring
Flange: Q235, SS304, SS316
Technical data:
Model |
KXT-1 |
|
KXT-2 |
KXT-3 |
Working Pressure MPa(Kgf/cm2) |
1(10) |
|
1.6(16) |
2.5(25) |
Burst Pressure MPa(Kgf/cm2) |
2(20) |
|
3(30) |
4.5(45) |
Vacuum Degree KPa(mmHg) |
53.3(400) |
|
86.7(650) |
100(750) |
Suitable Temperature °C |
-15~115 (-30~250 for special materials) |
|||
Suitable Medium |
Air, Compressed Air, Fresh Water, Sea Water, Oil, Acid, Alkali etc. |
|||
Dimensions:
Nominal Diameter DN |
Length mm |
Axial Displacement |
Lateral Displacement mm |
Deflection Angle a1+a2 |
||
mm |
Inch |
Extension mm |
Compression mm |
|||
32 |
1 1/4 |
95 |
6 |
9 |
9 |
15° |
40 |
1 1/2 |
95 |
6 |
10 |
9 |
15° |
50 |
2 |
105 |
7 |
10 |
10 |
15° |
65 |
2 1/2 |
115 |
7 |
13 |
11 |
15° |
80 |
3 |
135 |
8 |
15 |
12 |
15° |
100 |
4 |
150 |
10 |
19 |
13 |
15° |
125 |
5 |
165 |
12 |
19 |
13 |
15° |
150 |
6 |
180 |
12 |
20 |
14 |
15° |
200 |
8 |
210 |
16 |
25 |
22 |
15° |
250 |
10 |
230 |
16 |
25 |
22 |
15° |
300 |
12 |
245 |
16 |
25 |
22 |
15° |
