Hydraulic Rubber Bridge Expansion Joint

Name: Hydraulic Rubber Bridge Expansion Joint
Brand: Euroasia Group
SKU: 115937091

US$ 0.1 - 100 MOQ: 1 Case

Key Specifications

Material:

Other, EPDM,NBR,NR,Polarity Rubber

Technics:

Other, Casting, Machining, Gas Moulding

Type:

Other, Union Type or Flange Type Rubber Expansion Joints

Hebei Euroasia Industry Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Material Other, EPDM,NBR,NR,Polarity Rubber

Technics Other, Casting, Machining, Gas Moulding

Type Other, Union Type or Flange Type Rubber Expansion Joints

Place of Origin Hebei, China

Model Number Union Type/Flange Type Rubber Expansion Joints

Brand Name Euroasia Group

Connection Other, Flanged or Threaded Union Type Rubbe Expansion Joints

Shape Equal

Head Code Other, Flanged or Threaded Unions

Specifications

Hydraulic Rubber Bridge Expansion Joint
1.Greater movements are available
nvey seawater, hot wate, etc

Hydraulic Rubber Bridge Expansion Joint

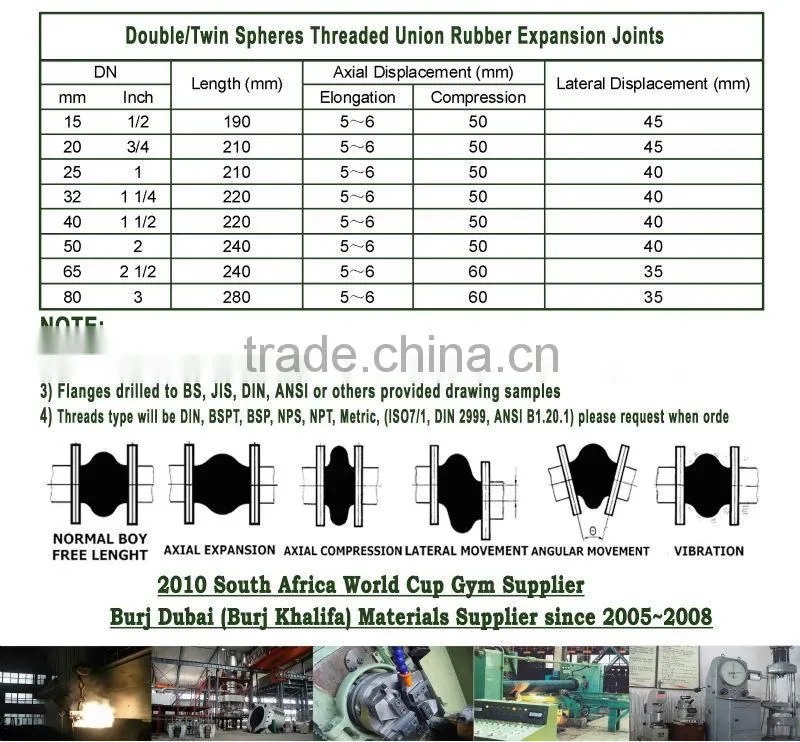

Rubber Expansion Joints

1) Material	EPDM, NBR, NR, Polarity rubber
2)Construction	Inner core, Outer cover, Frame, Metallic ring, M. I. union or Carbon steel flange
3)Connector Approval	Flanged, flange type Threaded, Union type Rubber Joint
4)Type	Single sphere or arch, Double spheres or arch
5)Threads	DIN, BSPT, BSP, NPS, NPT, Metric, (ISO7/1, DIN 2999, ANSI B1.20.1)
6)Flange Drilled	BS, DIN, ANSI, JIS or others provided drawing samples
7)Surface	Galvanized, Epoxy
8)Normal Specification	DN32 to1200mm(1 1/4 to 48 inch); For threaded union connector only be DN15 to 80mm(1/2 to 3 inch)
9)Usage	Protecting piping and equipments systems from stress or motion
10)Application	Air, Pressurized air, Water, Sea water, Hot water, Oil, Acid, Alkali etc
