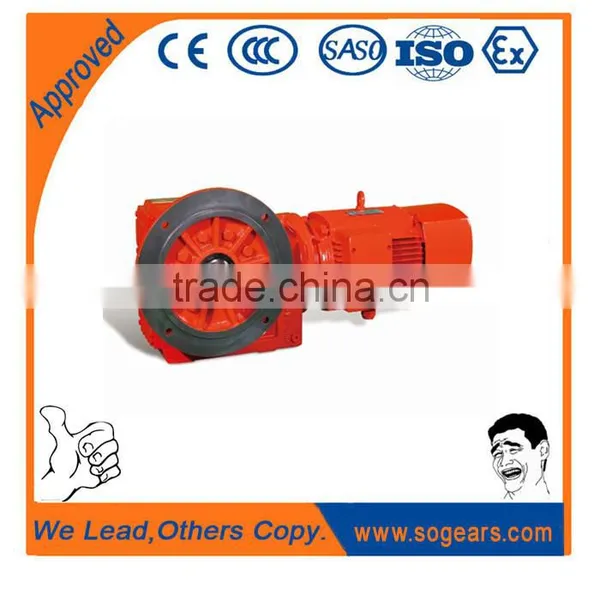

Helical-bevel Gearmotors
@Helical-bevel Gearmotors designation
Example: GK(AF)77-Y1.5-4P-52.07-M2-Ø300-270°-3
GK(AF): GK series Helical-bevel Gearmotors
(AF): None-shaft output, F-flange output with solid shaft, A-Output hollow shaft type. H-Hollow shaft output with shrink disk AT- Torque-arm mounted (S17…R77)- Combined types
77:Gearbox model number
Y1.5: 1.5kw standard electric motor.
4P: 4Pole motor, 2P-2Pole motor, 6P-6Pole motor, 8P-8Pole motor.
52.07: Gear reduction ratio
M2: Mounting way
Ø300:External diameter of output flane (if there is a flange)
270°: Terminal box position
3:Position of cable entry
@Helical-bevel Gearmotors Features
Models:12 models ranging from K37 to K187
Large output torque,smooth startup,high efficiency
Noise Level: Low type 65-75 Db, Smooth and stable in run
Material: Carburized gears & shafts and gears HRC58-62
Transmission efficiency: the efficiency of single machine is bigger than 90%.

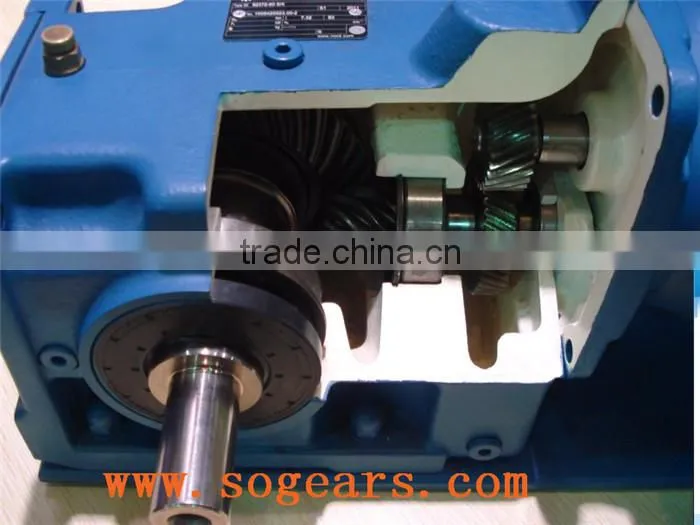

Equipped with spiral bevel transmission which meets 90 output requirements.
Output way:Hollow shaft with keyed connection, shrink disk, splined ,solid shaft etc.
Bearing: China standard. But SKF, FAG, NSK, TIMKEN, NTN, KOYO, C&U is a aviable if need
Mounted way: Hollow shaft,foot-mounted,flange-mounted,shaft-mounted,flange-mounted with hollow shaft,foot-mounted with hollow shaft.
@Helical-bevel Main Application
• Conveyors • Food Machinery • Wastewater Treatment
• Mixers •Coat & Mining • Poultry Plants • Construction Equipment
• Paper Mills •Recycling Machines • Rotary Feeder • Textile Logistics
•Hoist & transport •Harbor & ship building •Harbor & ship building
•Cement & material •Electric power& energy •Coal & Mining •Chemical & recyclin
