Cycloidal pinwheel reducers
- 300000 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Gearing Arrangement: | Cycloidal | Output Torque: | 12000Nm | Rated Power: | 0.12~200kw |
Input Speed: | 750-1500rpm | Output Speed: | 3000-0.01rpm | Place of Origin: | Jiangsu, China |
Model Number: | gearbox | Brand Name: | DONGSHUN |
Product Description

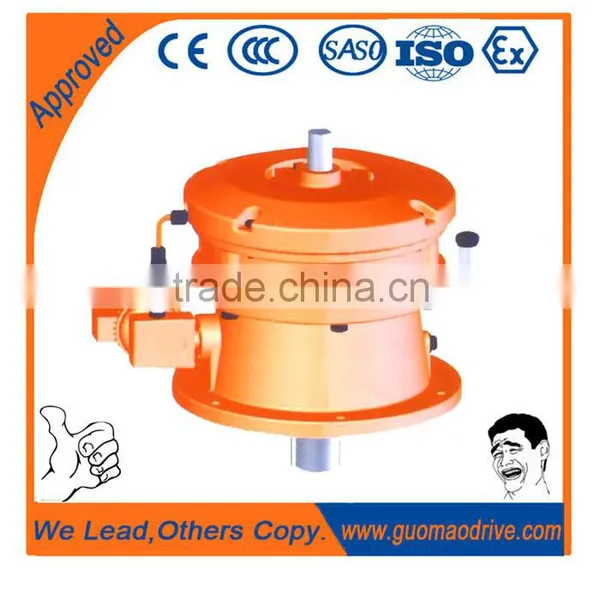

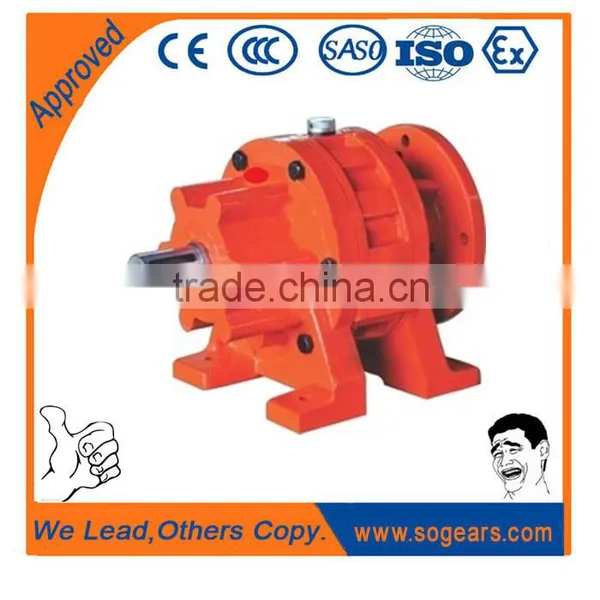

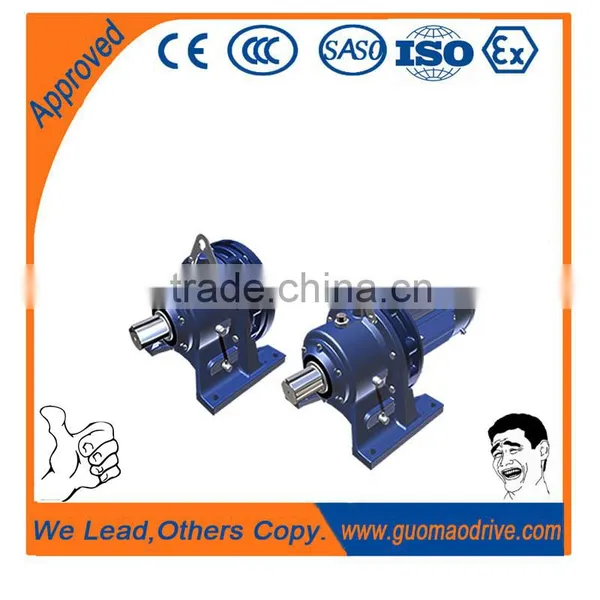

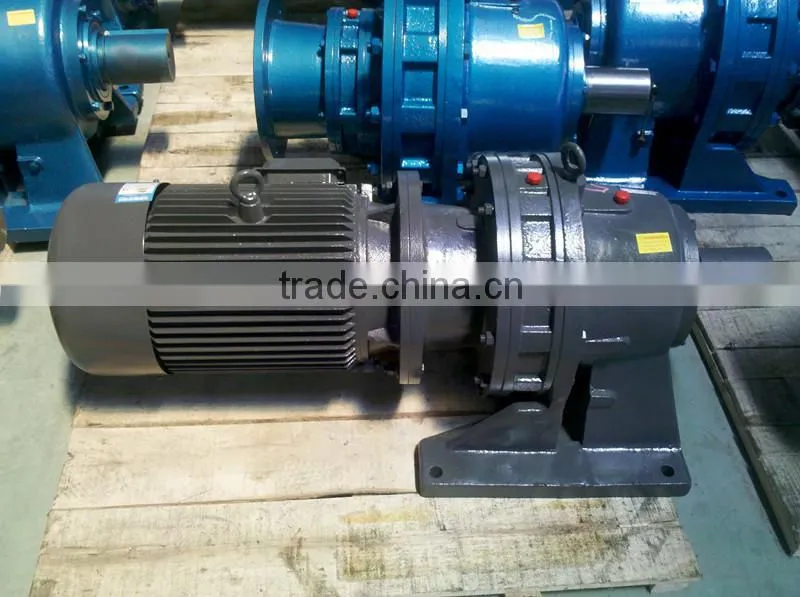

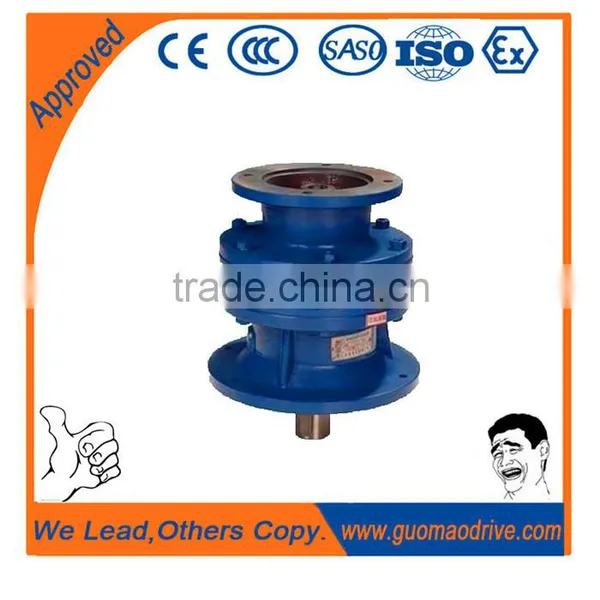

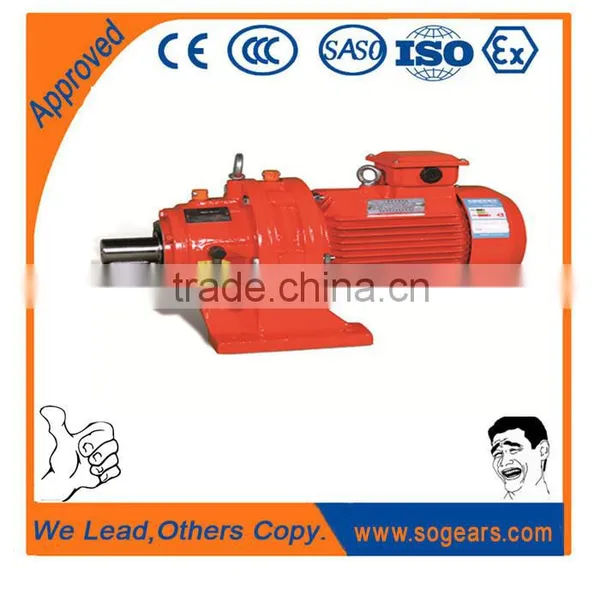

Cycloidal pinwheel reducers
@Cycloidal reducers designation
Example: BW(E)D41-1225-0.37-W
B: B series Cycloidal gear motors
W: Horizontal speed-reducers, with inline shaft.
(E): None-one stage, E-two stage, S-three stage
D:Standard electric motors
41: Model number 41
1225: Speed Reduction Ratio
0.37: Electric motor power:0.37kw
W: Mounting way.
All models of this Cyclo Gear Motor are
B09,B0,B1,B2,B3,B4,B5,B6,B7,B8,B9,B10,B20,B31,B41,B42,B52,B53,B63,B74,B84,B85,B2009,
B310,B420,B531,B631,B742,B852,B953.
Reduction ratio mainly is 7,9,11,17,23,29,35,43,59,71,87,99,121,187,289,391,493,595,731,841,1003,1225,1505,1849,
2065,2065,2537,3481,4189,5133,7569.
@pinwheel reducers Features
Paint Color: Various
Cooling System: Fan cooler
Noise Level: Low type 65-75 Db, Smooth and stable in run
Seals: Nitrile material, dual lipped, double output seals available
Transmission efficiency: the efficiency of single machine is not less than 95%.
Material: Rugged cast iron or ductile housings, hard shafts and gears HRC58-62
Output way:Hollow shaft with keyed connection, shrink disk, splined ,solid shaft etc.
Bearing: China standard. But SKF, FAG, NSK, TIMKEN, NTN, KOYO, C&U is a aviable if need
@Cycloidal pinwheel reducers Main Application
• Conveyors • Food Machinery • Wastewater Treatment
• Mixers •Coat & Mining • Poultry Plants • Construction Equipment
• Paper Mills •Recycling Machines • Rotary Feeder • Textile Logistics
•Hoist & transport •Harbor & ship building •Harbor & ship building
•Cement & material •Electric power& energy •Coal & Mining •Chemical & recyclin
