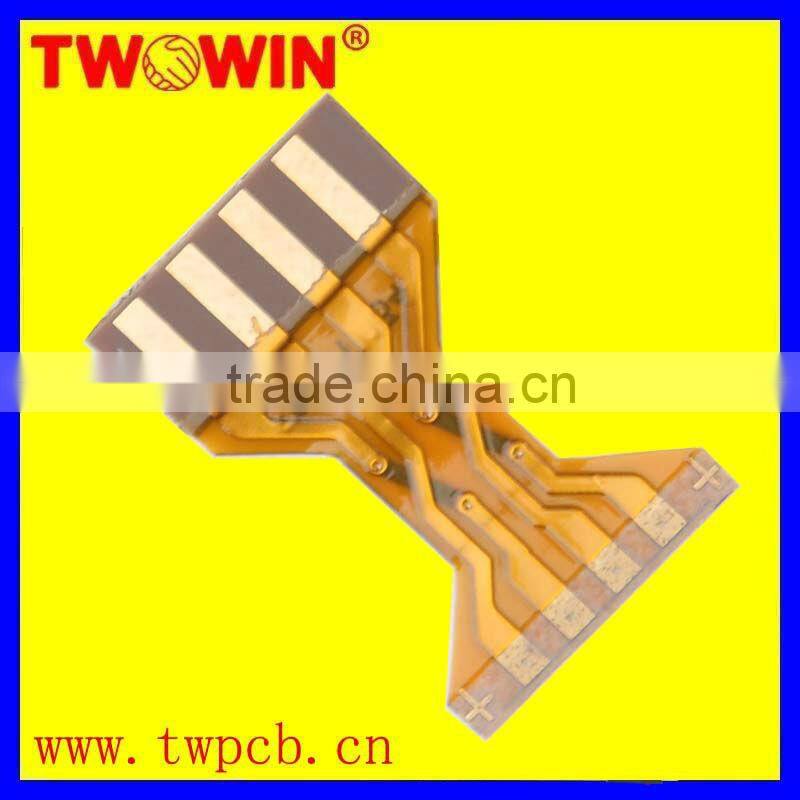

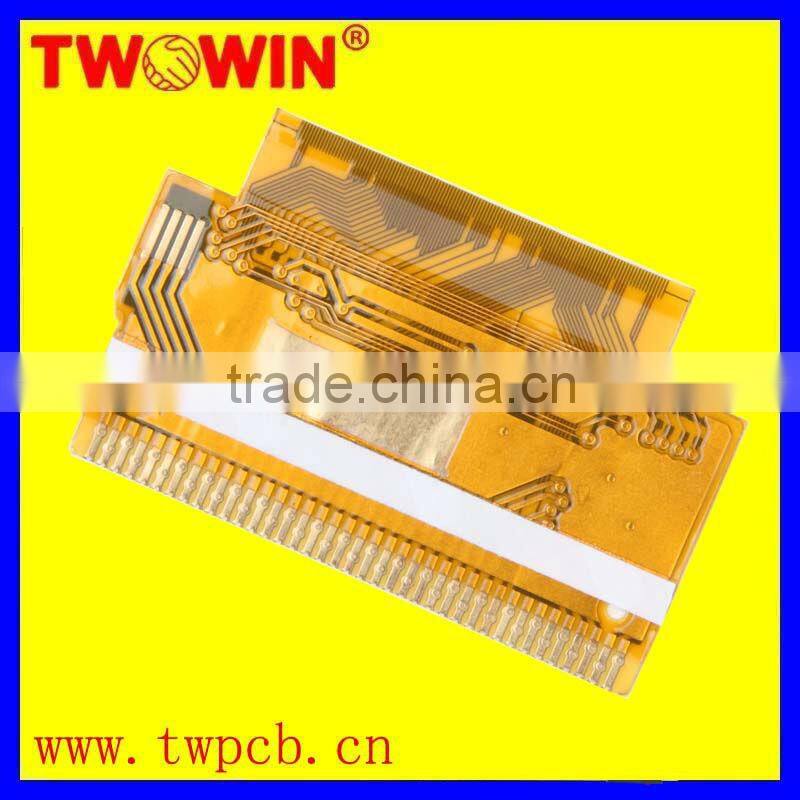

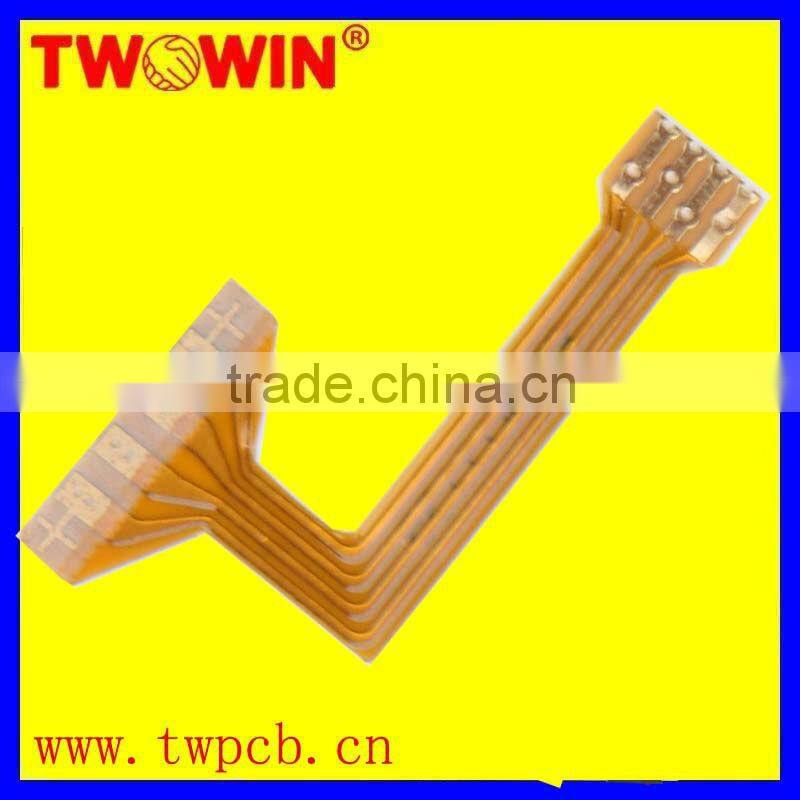

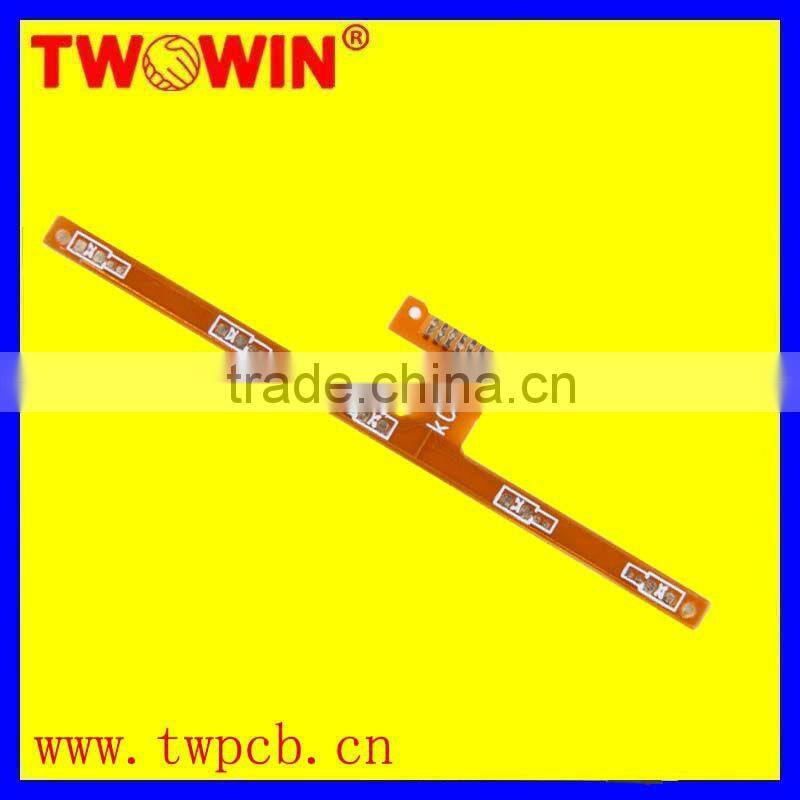

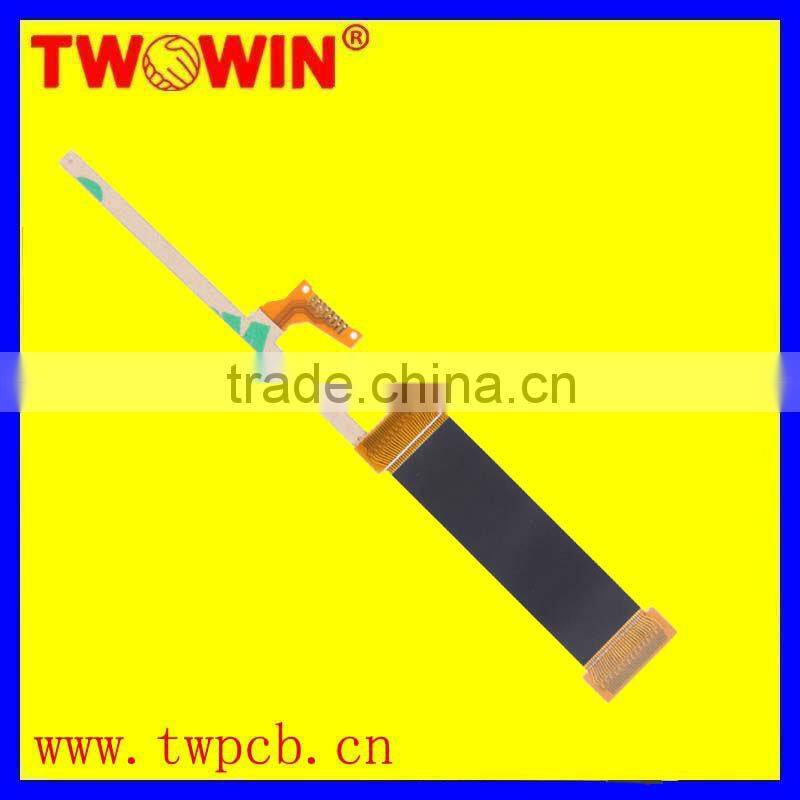

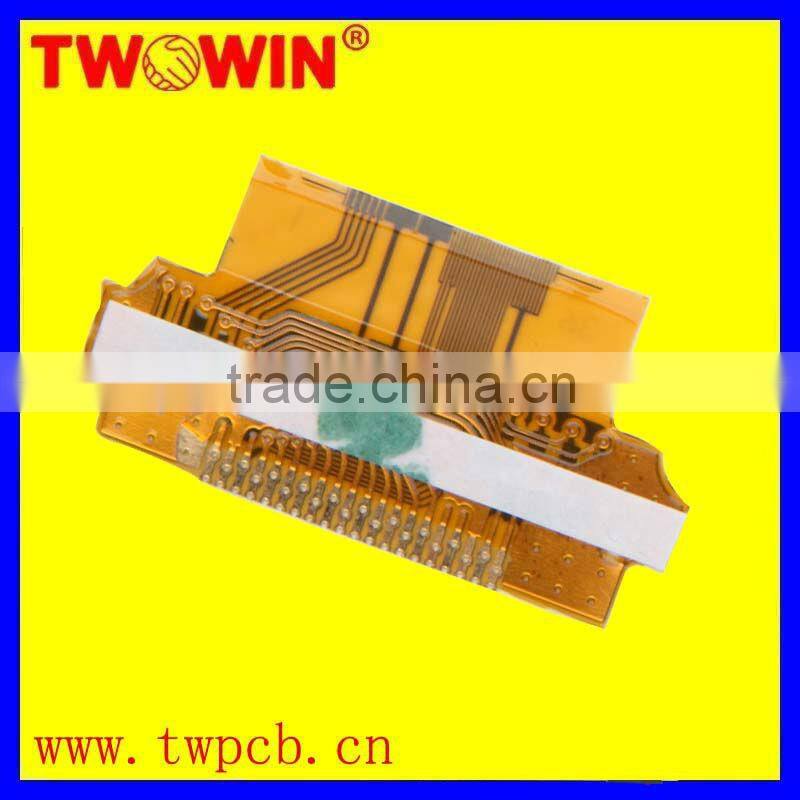

Help CenterShenzhen TW Fpc Pcb
US$ 1 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TWOWIN
Model Number:
TW015
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Shenzhen TW Flexible PcbUS$ 1 - 100MOQ: 10 Pieces -
Shenzhen TW Electronics Led Pcb BoardUS$ 1 - 100MOQ: 1 Piece
-
Shenzhen TW Electronics Mobile Phone Pcb BoardUS$ 1 - 100MOQ: 1 Piece
-
Shenzhen TW Electronics Aluminium PcbUS$ 1 - 100MOQ: 1 Piece
-
Shenzhen TW Electronics Induction Cooker Pcb BoardUS$ 1 - 100MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
TWOWIN
Model Number
TW015
Base Material
PI
Copper Thickness
1oz, 1oz
Board Thickness
0.13-0.25MM, 0.13-0.25mm
Min. Hole Size
0.5mm, 0.5mm
Min. Line Width
5mil, 5mil
Min. Line Spacing
5mil, 5mil
Surface Finishing
HASL/GOLD, HASL
Specifications
fpc pcb:1.thicknese:PI 0.13-0.25MM
2.Colour:White/yellow
3.layer:1-2
4.Finished:HASL/Gold
fpc pcb
| ITEMS: | SPECIFICATION |
| LAYER: | 1-4layer |
| BOARD MATERIAL: | PI+FR4 |
| BOARD THICKNESS: | 0.13-0.25mm |
| CAMBER: | D>5.0+/-0.076mm 0.3<D<+/-0.05MM D<0.3+/-0.08MM |
| MIN.FINISHED HOLE SIZE: | 0.5MM |
| HOLE COPPER THICKNESS: | >20UM |
| MIN.TRACK WIDTH: | 5mill |
| MIN.TRACK SPACING: | 5mill |
| PROFILE SIZE TOLERANCE: | + / -0.15 |
| PROFILE: | MILLING,MOULDING,VUT,CHANFER |
| COATING: | HAL/GOLD |
| SOLDER MASK COLOR: | green/yellow/black/white/red/blue |
| TECHNNOLOGY: | / |
| LEGEND COLOR: | green/yellow/black/white/red/blue |
| CERTIFICATE: | UL,ROHS,ISO9001,T/S 16949 |
| ASSEMBLY: | LEDA FREE,NOT LEAD FREE |
