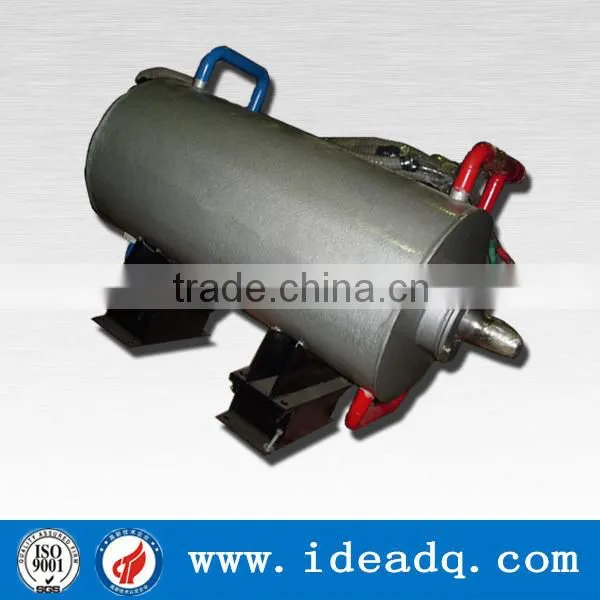

All Sorts of Function of Electromagnetic Pump

All Sorts of Function of Electromagnetic Pump thumbnail-1
All Sorts of Function of Electromagnetic Pump photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
IDEA
Model Number:
DCB,DCB series
Contact Supplier Request Quote Chat Now
Shijiazhuang Idea Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name IDEA
Model Number DCB,DCB series
Usage Other, Heat transter metal
Standard or Nonstandard Standard
Pressure High Pressure
Application Other, Heat transfer metal, Aluminium melting
Theory Other, electromagnetic pump





     Aluminium electromagnetic pump is based on the principle of linear motor. When the pump body work by special coil structure in the traveling wave magnetic field generated inside, magnetic field and the internal melting liquid interact to produce magnetic thrust, electromagnetic thrust high temperature melting furnace will take high speed to the circular liquid material well inner cavity, and on the material in high speed whirlpool well formed, whirlpool will be broken material involved, through the back into the melting pot bottom tube. Change the power supply voltage and current phase, can change the size of the electromagnetic thrust and direction.









            Electromagnetic pump has no mechanical moving parts, simple structure, good sealing, reliable operation, and don't need shaft seal, so in chemical, printing industry used to transport some toxic heavy metals, such as mercury, lead, etc. Used in nuclear power and nuclear fusion device transmit the molten nonferrous metals (sodium and potassium, sodium potassium alloy, lithium lead), more widely used in metallurgy transport molten nonferrous metal casting production. The flow rate can reach 13000 m/h, the pressure can reach 1.5 MPa, temperature is 1200 °C.





          Series type



unit type

EMP50-AL

EMP100-AL

EMP150-AL

EMP200-AL

electric parameter

supply voltage

380V±10%

380V±10%

380V±10%

380V±10%

supply frequency

50Hz

50Hz

50Hz

50Hz

phase number

3 phase

3 phase

3 phase

3 phase

input power

60 KVA

100 KVA

150 KVA

200 KVA

effective power

36Kw

60Kw

90Kw

120Kw

voltage regulation

classification adjust

classification adjust

classification adjust

classification adjust

performance parameter(as 720°C;Density of 2.3 Kg/dm. 3 calculate)

Maximum flow rate T/min

3

5

10

15

peak flow rate m/sec

6

6

8

8

maximum operating temperature

1000°C

1000°C

1000°C

1000°C

Aluminium smelter capacity *

<10

<20

<35

<50

Cooling water parameters

cooling power

20Kw

60Kw

90Kw

120Kw

Pure water pressure

0.45~0.6MPa

0.45~0.6MPa

0.45~0.6MPa

0.45~0.6MPa

Pure water flow

6 t/h

10 t/h

14 t/h

16 t/h

specific conductance

≤40μS

≤40μS

≤40μS

≤40μS

appearance and weight of machine

Electrical cabinet size

650×1000×2000

650×1000×2000

650×1000×2000

650×1000×2000

Number of electrical cabinet

1

2

2

2

transformer capacity

60 KVA

100 KVA

150 KVA

200 KVA

Pump body size

480*480*650

(φ70)

500*500*650

(φ86)

600*600*890

(φ110)

650*650*890

(φ120)

Pump weight T

0.35

0.4

0.6

0.65

Pump body cooling way

Closed loop water cooling

Closed loop water cooling

Closed loop water cooling

Closed loop water cooling

Supporting insulation wear-resisting pipe parameters

internal diameter of the pipeline

φ70

φ86

φ110

φ120

Pipe outside diameter

φ190

φ206

φ230

φ240

Wear-resistant tube life

4-6 months

4-6 months

4-6 months

4-6 months

Thermal insulation pipe material

alumina silicate fibre

alumina silicate fibre

alumina silicate fibre

 alumina silicate fibre
