CBF Explosion-proof Centrifugal Draught Fan
- Ningbo/Shanghai
- T/T D/P D/A
You May Like
-
LED Explosion-proof Fitting Energy-efficient Floodlight Lamp (IIB,IIC,DIP)
-
LED Explosion Proof Protected Lighting Fixtures (IIB,IIC,DIP)
-
LED Explosion-proof Energy-efficient Floodlight Lamp (IIB,IIC,DIP)
-
Hot Sales and Save Energy LED Explosion Proof Protected Lighting Fixtures (IIB,IIC,DIP)
-
Low Price LED Explosion Proof Protected Lighting Fixtures (IIB,IIC,DIP)
-
Large Power 150W LED Explosion-proof Floodlight Lamp (IIB,IIC,DIP)
Product Details
| Electric Current Type | AC | Mounting | Wall Fan | |
| Blade Material | Cast Iron | Place of Origin | Zhejiang, China | |
| Brand Name | Exguangs | Model Number | CBF | |
| Voltage | 220V/380V | Power | 0.18KW | |
| Air Volume | 2280 | Speed | 1400-3300 R/min | |
| Certification | CCC | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications

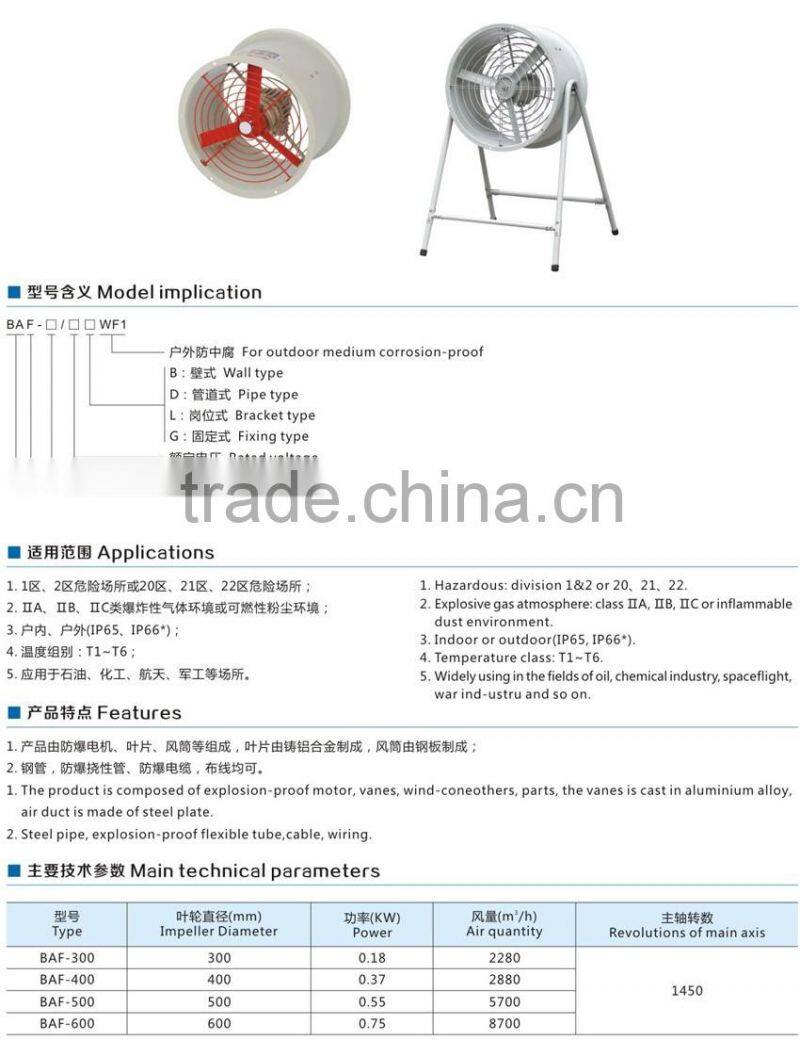

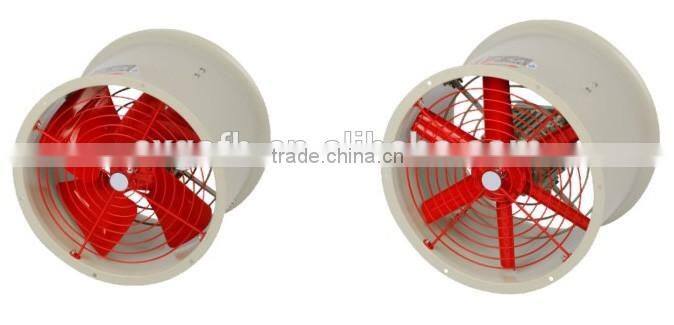

Ex Axial Flow Fan
1,Ex-mark:Exd II BT4
2,Rated voltage:AC220V/380V
3,Wind cylinder :Superior quality steel plat
- Application
1,Designed forExplosive atmosphere Zone 1, Zone 2
2,Designed forGroups IIA,IIB,IIC, Temperature classes T1~T4
3,Designed for sites with explosive atmosphere, such as petroleum exploitation, refinery, storage, chemistry, medicine, military facilities, etc.

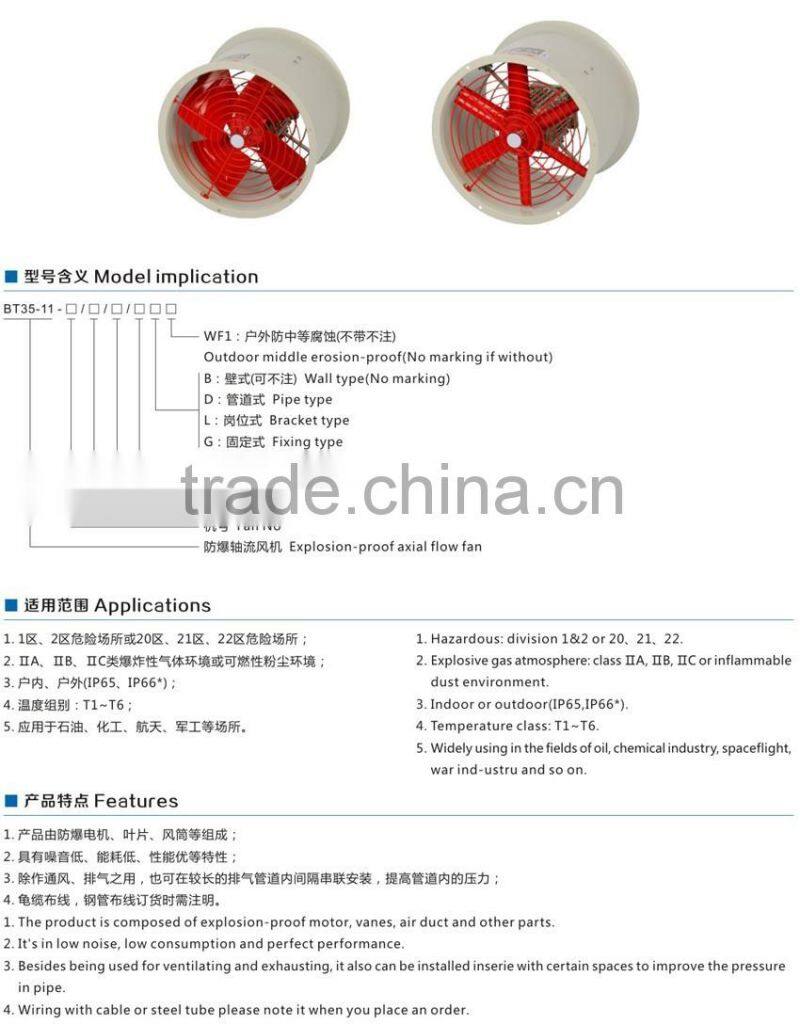

- Features
1, Explosion proof axial flow fan is composed of explosion proof motor, fan blade ,wind cylinder,etc.
2, Wind cylinder is welded of superior quality steel plate, die casted fan of Aluminium alloy
with high pressure electrostatic plastic-sprayed surface.

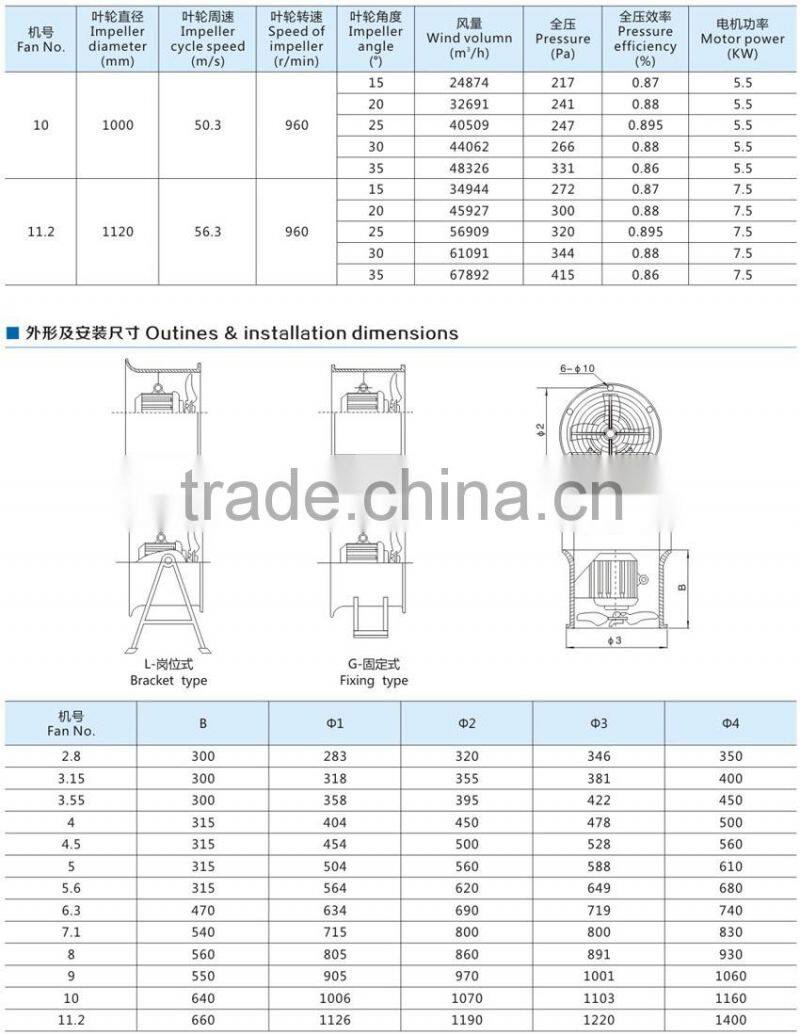

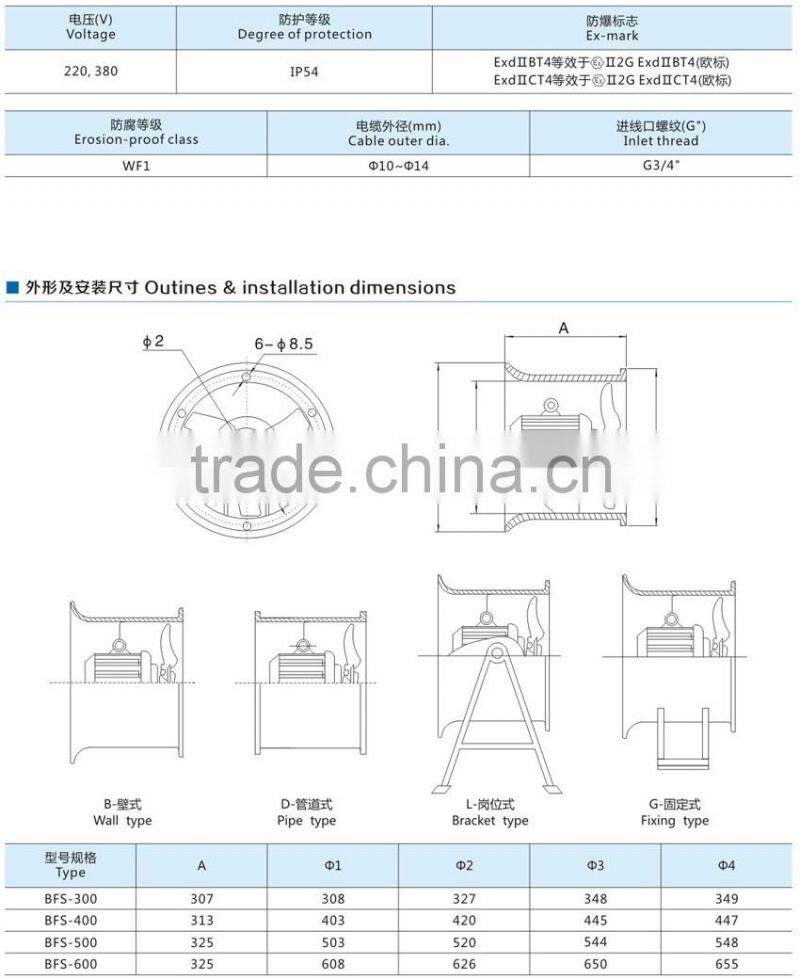

3,Mounting mode has four ways can be chosen: Bracket type, pipe type, post type, fixed type.
4, Steel pipe wiring and cable wiring.

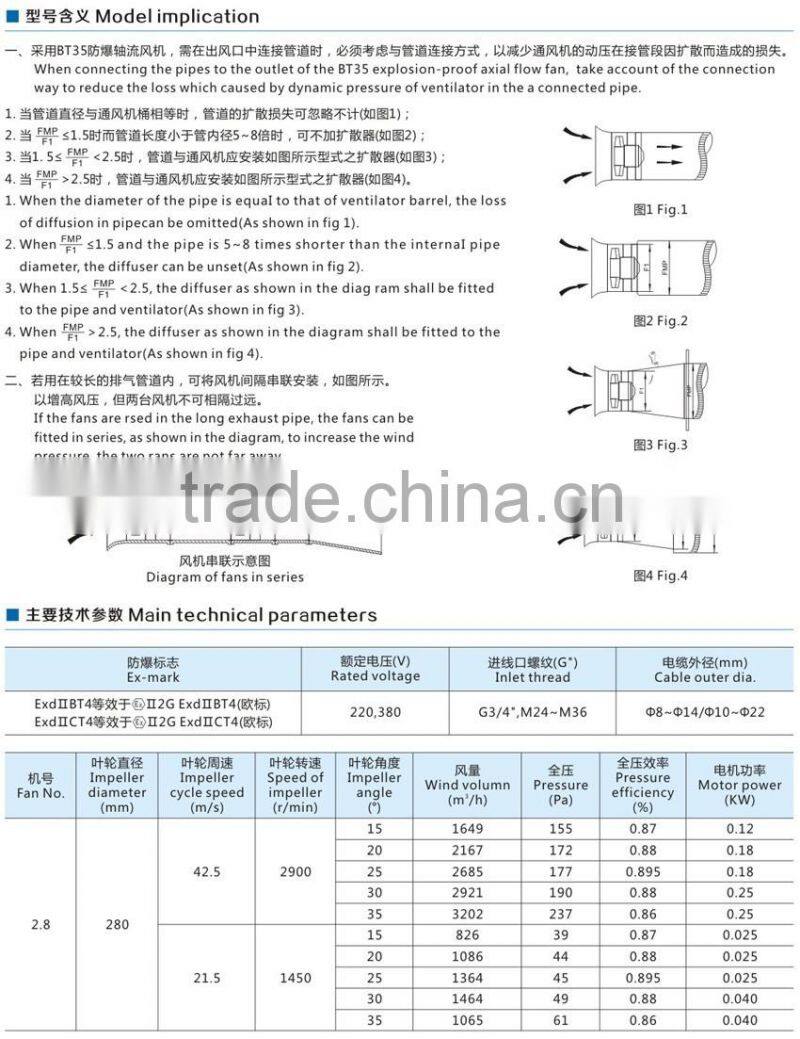

- Technical parameters
1,Explosion protection: Exd IIBT4
2,Rated voltage:AC 220/380V
3,Main shaft revolution:1450 r/min
4,Corrosion proof grade:WF1
5,Ingress thread specification:G3/4"
6,Cable's outer diameter:9mm~14mm
7,Compliance with: GB 3836.1,GB 3836.2,IEC60079-0,IEC60079-1
Model No. | Impeller dia(mm) | Wind (m³/h) | Power (W) | Main-role rotary No. (r/min) |
CBF-300 | 300 | 2280 | 180 | 1450 |
CBF-400 | 400 | 2880 | 370 | 1450 |
CBF-500 | 500 | 5700 | 550 | 1450 |
CBF-600 | 600 | 8700 | 750 | 1450 |
Packaging Details: 1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
Delivery Detail: Shipped in 15 days after payment
Dear Customers,
Welcome to visit Exguangs online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
Exguangs sales team.
Zhejiang Guangshun Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
