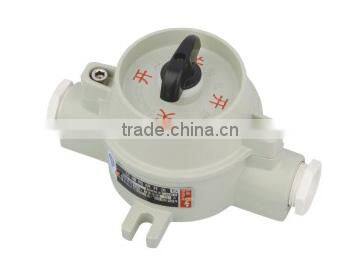

SW-10 Hazardous Area Explosion Proof Illumination Switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Exguangs | |
| Model Number | SW-10 | Max. Current | 10A | |
| Max. Voltage | AC380V |
Product Description

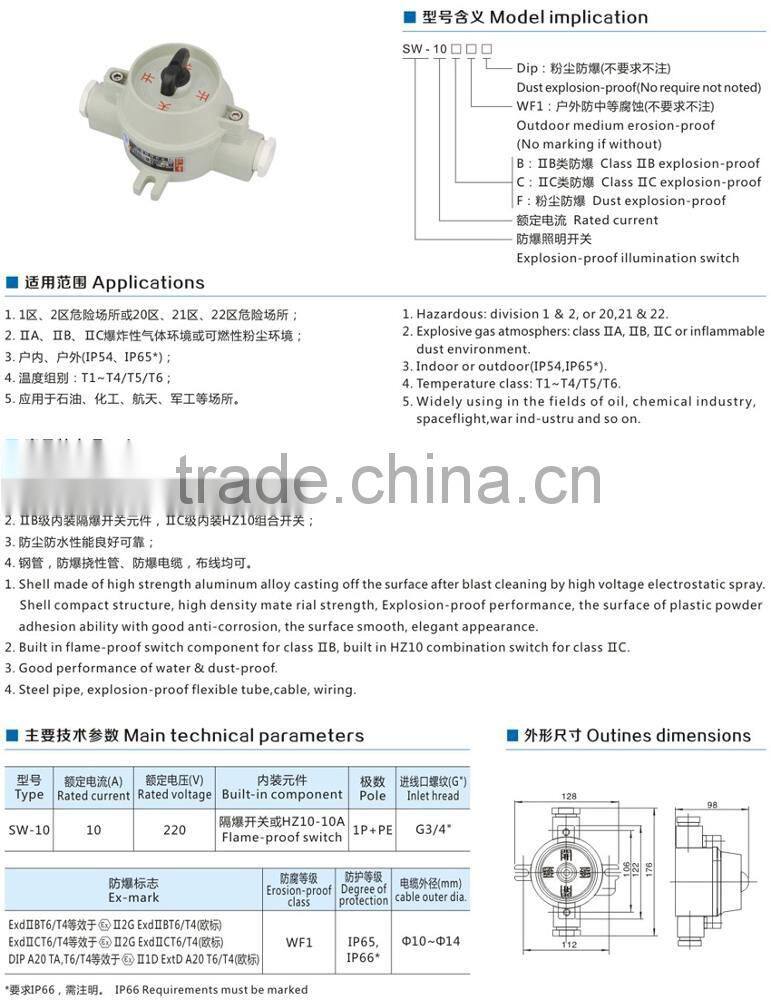

SW-10 Series Explosion Proof Light Switch (IIB, DIP)
•Application
1. Design for
Explosive atmosphere Zone 1,Zone 2
Combustible dust Zone 20 , Zone 21, Zone 22
2. Designed for
Groups IIA,IIB
Temperature classes T1~T6
3. Designed for sites with explosive atmosphere such as petroleum exploitation, refinery, storage, chemistry, medicine, textile, printing, military and military facilities etc..
4. Used for switching for lighting circuit.
•Features
1. Enclosure is die casted of aluminum alloy with high voltage electrostatic powder coated surface after shot blasted.
2. Built-in combination switch with stable property.
3. Special designed water resistance and dust resistance gasket.
4. With good water resistance and dust resistance property, etc.
5. Steel conduit and cable wiring.
•Technical Specification
| 1. | Compliance with | GB3836.1,GB3836.2,GB3836.3,IEC60079-0,IEC60079-1,IEC60079-7 |
| 2. | Explosion protection | Exed IIBT6, DIPA20TA,T6 |
| 3. | Rated voltage | AC220V |
| 4. | Pole | single pole |
| 5. | Rated current | 10A |
| 6. | Ingress protection | IP65 |
| 7. | Corrosion resistance | WF1 |
| 8. | Cable entries Spec. | 2-G3/4" |
| 9. | Cable’s outer dia. | Φ9mm~Φ14mm |
| Packaging Details: | Export standard packing |
|---|---|
| Delivery Detail: | 7 to 20 Days as per order quantity |
