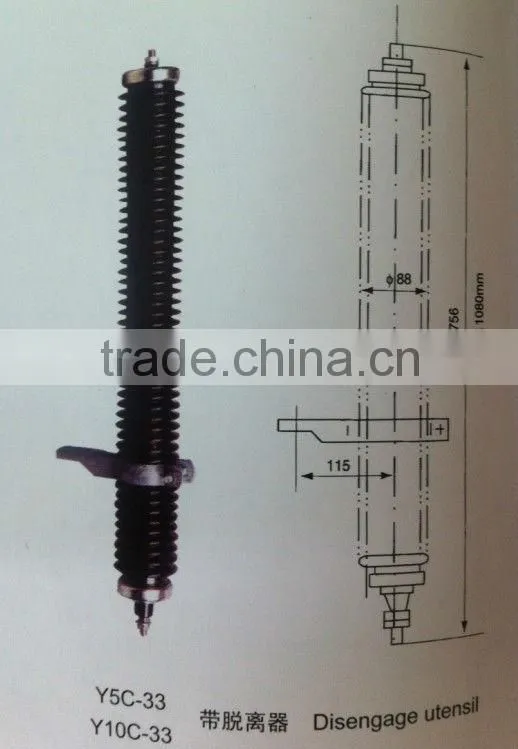

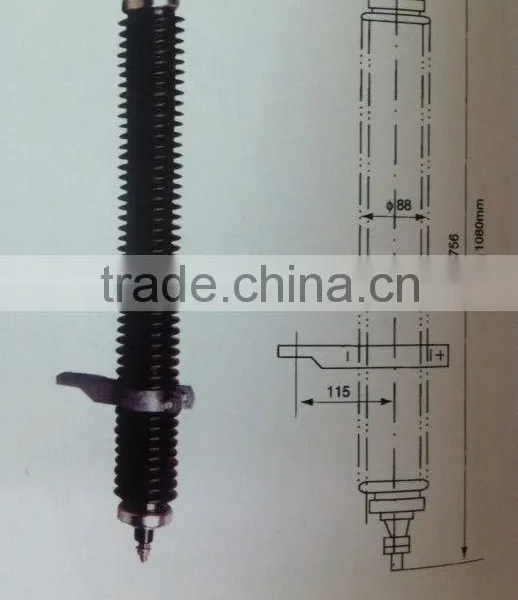

11kv Lighting Surge Arrester
US$ 20.03 - 90.06
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
YIXING
Model Number:
Y10C-36
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
YIXING
Model Number
Y10C-36
Specifications:
1) MOA rated voltage: 36KV
2) MCOV: 29KV
3) Power frequency discharge voltage: 61KV
4) 1.2/50μs impulse discharge voltage: 108KV
5) 8/20μs lightning current impulse: 108KV
6) 2ms rectangular current impulse withstand: 100A
7) 4/10μs high current impulse withstand: 65KA
Code No. |
Rated Voltage |
MCOV |
Power frequency discharge voltage |
1.2/50μs Impulse discharge Voltage |
8/20μs Lightning impulse residual voltage |
Long impulse withstand current2000us |
4/10μs High current impulse withstand |
KV(rms) |
KV(rms) |
KV(rms) |
KV(rms) |
KV(crest) |
KV(crest) |
KV(crest) |
|
Y5C-36 |
36 |
29.0 |
61 |
108 |
108 |
100 |
65 |
Y10C-36 |
36 |
29.0 |
61 |
108 |
108 |
200 |
65 |
