UL Air conditioner contactor
- 100000 Piece / Pieces per Month
- NIBO/SHANGHAI
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | KAYAL/OEM, KAYAL or OEM | Model Number: | CJX9, CJX9 |
| Electricity Type: | AC | Number of Pole: | Other, 1p-1.5p, 1p/1.5p | Phase: | 1 |
| Main Circuit Rating Voltage: | Other, 24V-240V, 220V 1 pole contactor | Main Circuit Rating Current: | Other, 20A-40A, 20A~40A |
Product Description
| Magnetic Starter | Circuit Breaker | ELCB RCCB | Relay | AC contactor |
UL Air conditioner contactor,definite purpose contactor,spare parts for air compressor
APPLICATIONS
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CJX9 definite purpose contactor (Follow defers to DP Contactor),mainly is suitable for 50HZ or 60HZ.When the AC-8A use category fixed working voltage is 204V or 277V the normal current up to the 40A electric circuit is suitable for the starting and the control single - phase motor (or compressor) and other single - phase loads.Mainly uses in the domestic electric appliances profession,specially in air conditioning profession,conforms to IEC60947.
SPECIFICATION
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Coil rating | 1Pole contactors | 2 pole contacts | ||||||
| Nominal coil voltage | 24 | 120 | 208/240 | 277 | 24 | 120 | 208/240 | 277 |
| Nominal coil resistance Ohms | 18 | 420 | 1800 | 2500 | 11 | 237 | 1000 | 1600 |
| Maximum pick up voltage | 18 | 88 | 177 | 221 | 18 | 88 | 177 | 221 |
| Maximum drop out voltage | 6-15 | 20-70 | 40-140 | 50-165 | 6-15 | 20-70 | 40-140 | 50-165 |
| Nominal rush Va@50Hz | 31 | 31 | 31 | 31 | 33 | 33 | 33 | 33 |
| Nominal rush Va@60Hz | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 |
| Nominal rush Va@50Hz | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 |
| Nominal rush Va@60Hz | 5 | 5 | 5 | 5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Maximum coil voltage | 30 | 132 | 264 | 300 | 30 | 132 | 132 | 300 |
| Coil rating | 3Pole contactors | 4 pole contacts | ||||||
| Nominal coil voltage | 24 | 120 | 208/240 | 277 | 24 | 120 | 208/240 | 277 |
| Nominal coil resistance Ohms | 7 | 180 | 720 | 900 | 6 | 150 | 600 | 750 |
| Maximum pick up voltage | 18 | 88 | 177 | 220 | 18 | 88 | 177 | 220 |
| Maximum drop out voltage | 6-15 | 20-70 | 40-140 | 50-165 | 6-15 | 20-70 | 40-140 | 65-185 |
| Nominal rush Va@50Hz | 65 | 65 | 65 | 65 | 62 | 62 | 62 | 62 |
| Nominal rush Va@60Hz | 60 | 60 | 60 | 60 | 59 | 59 | 59 | 59 |
| Nominal rush Va@50Hz | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 |
| Nominal rush Va@60Hz | 6 | 6 | 6 | 6 | 7 | 7 | 6 | 7 |
| Maximum coil voltage | 30 | 132 | 264 | 300 | 30 | 132 | 264 | 300 |

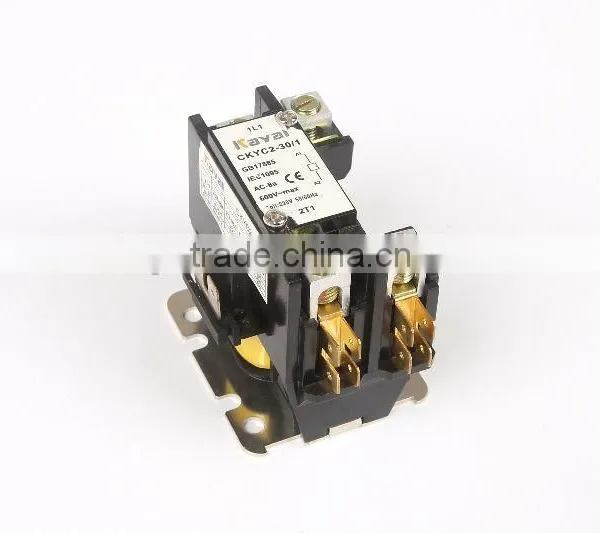

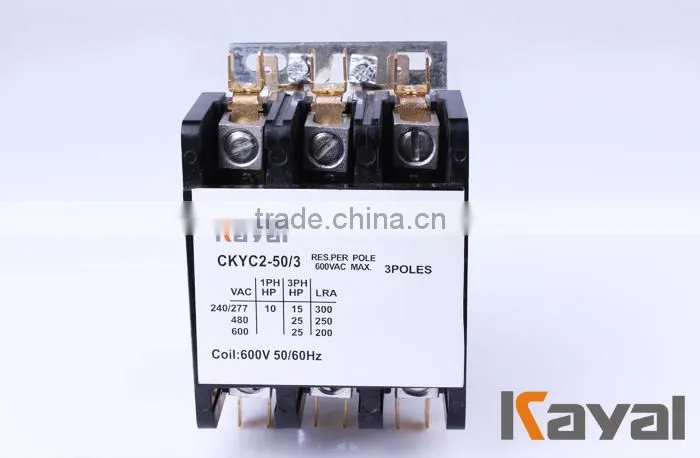

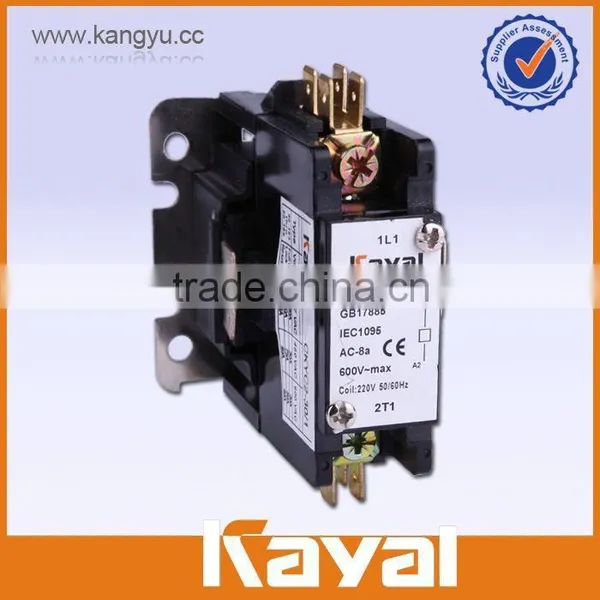

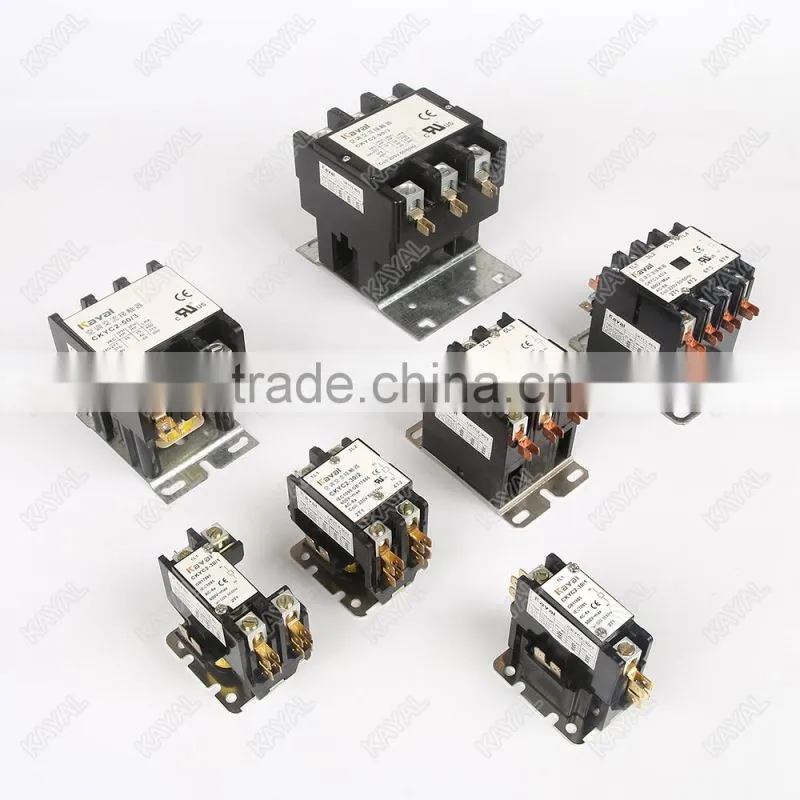

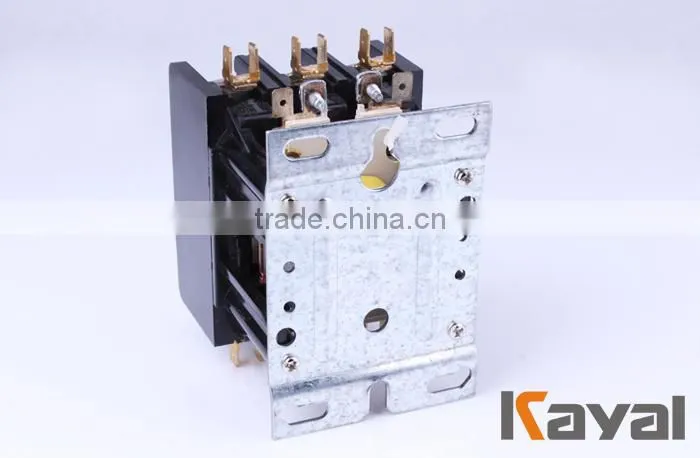

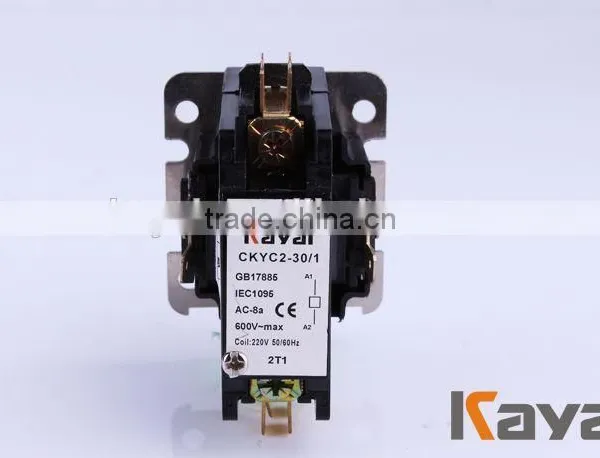

PRODUCT PICTURE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Established in 2002, Wenzhou Kangyu Electrical CO.,LTD. is a specialized manufacturer of definite purpose contactors,AC/DC magnetic contactors,circuit breakers. Located in Xinguang industry zone Liushi town Wenzhou city, we enjoy convenient transportation. Our company occupies an area of 30000 and has advanced facilities of injection molding machine,punching machine,monitoring station and so on. Our annual production capacity is 50,000,000 pieces. With export license, we export products to China,America,Australia, Europe,South America and Southeast Asia. Our products gain wide praises at home and abroad. Our company has won ISO9001:2008,CUL,CB,KEMA,CE,CCC,Rohs and PICC. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is “Quality First; Improve Technology; Expecting Future”. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together. |
FAQ
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or
other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
