Air compressor parts ac contactor,25A definite purpose contactor,contactor 220v
1.Application
CJX9 definite purpose contactor (Follow defers to DP Contactor),mainly is suitable for 50HZ or 60HZ.When the AC-8A use category fixed working voltage is 204V or 277V the normal current up to the 40A electric circuit is suitable for the starting and the control single - phase motor (or compressor) and other single - phase loads.Mainly uses in the domestic electric appliances profession,specially in air conditioning profession,conforms to IEC60947.
2.Specifications
| Coil rating | 1Pole contactors | 2 pole contacts | ||||||
| Nominal coil voltage | 24 | 120 | 208/240 | 277 | 24 | 120 | 208/240 | 277 |
| Nominal coil resistance Ohms | 18 | 420 | 1800 | 2500 | 11 | 237 | 1000 | 1600 |
| Maximum pick up voltage | 18 | 88 | 177 | 221 | 18 | 88 | 177 | 221 |
| Maximum drop out voltage | 6-15 | 20-70 | 40-140 | 50-165 | 6-15 | 20-70 | 40-140 | 50-165 |
| Nominal rush Va@50Hz | 31 | 31 | 31 | 31 | 33 | 33 | 33 | 33 |
| Nominal rush Va@60Hz | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 |
| Nominal rush Va@50Hz | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 |
| Nominal rush Va@60Hz | 5 | 5 | 5 | 5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Maximum coil voltage | 30 | 132 | 264 | 300 | 30 | 132 | 132 | 300 |
| Coil rating | 3Pole contactors | 4 pole contacts | ||||||
| Nominal coil voltage | 24 | 120 | 208/240 | 277 | 24 | 120 | 208/240 | 277 |
| Nominal coil resistance Ohms | 7 | 180 | 720 | 900 | 6 | 150 | 600 | 750 |
| Maximum pick up voltage | 18 | 88 | 177 | 220 | 18 | 88 | 177 | 220 |
| Maximum drop out voltage | 6-15 | 20-70 | 40-140 | 50-165 | 6-15 | 20-70 | 40-140 | 65-185 |
| Nominal rush Va@50Hz | 65 | 65 | 65 | 65 | 62 | 62 | 62 | 62 |
| Nominal rush Va@60Hz | 60 | 60 | 60 | 60 | 59 | 59 | 59 | 59 |
| Nominal rush Va@50Hz | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 |
| Nominal rush Va@60Hz | 6 | 6 | 6 | 6 | 7 | 7 | 6 | 7 |
| Maximum coil voltage | 30 | 132 | 264 | 300 | 30 | 132 | 264 | 300 |

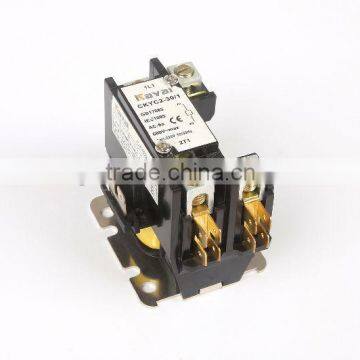

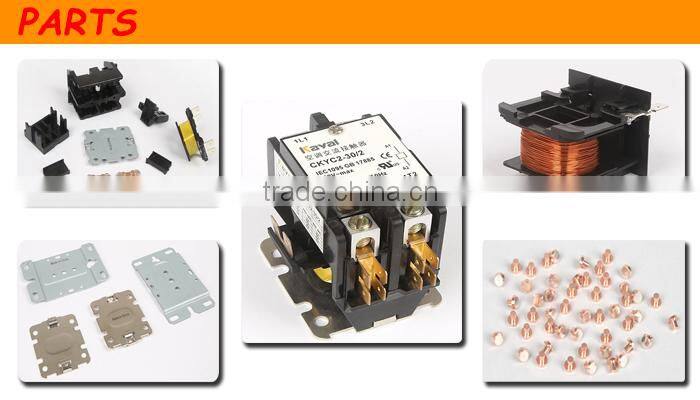

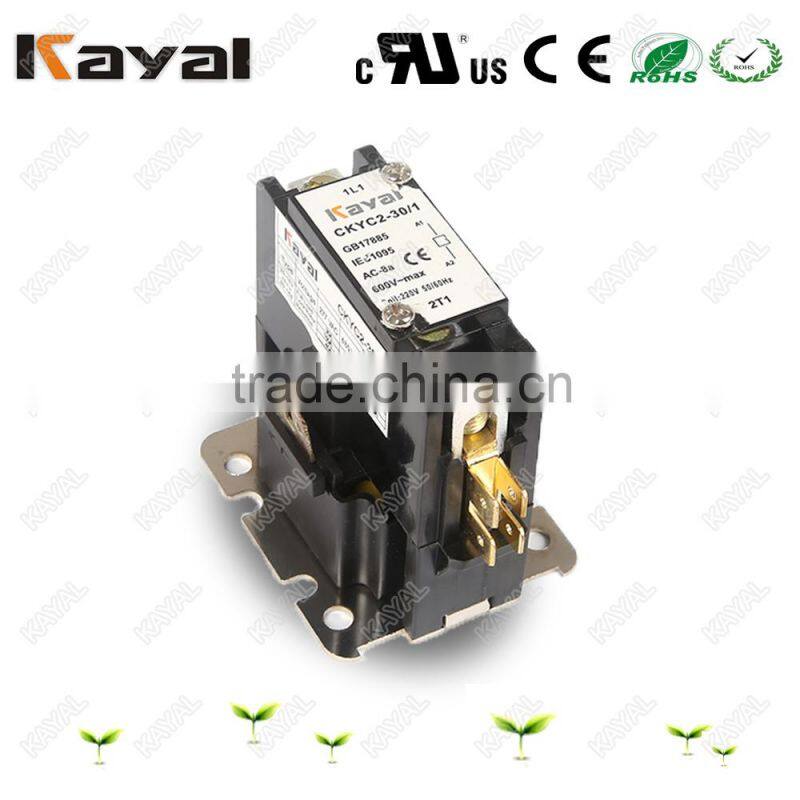

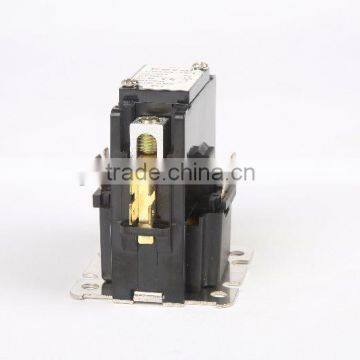

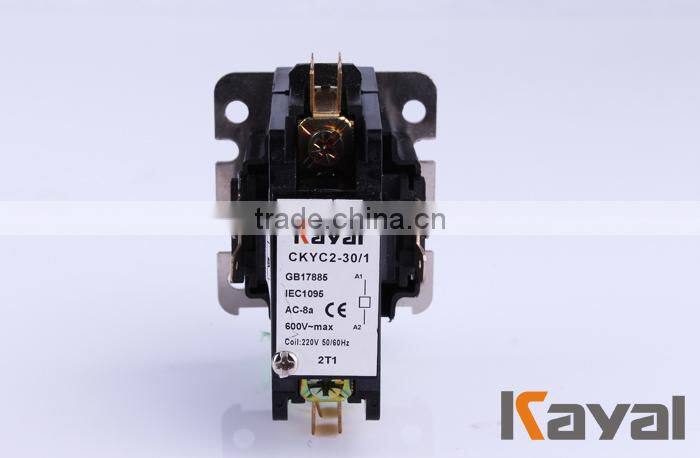

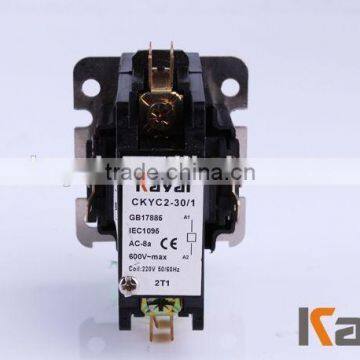

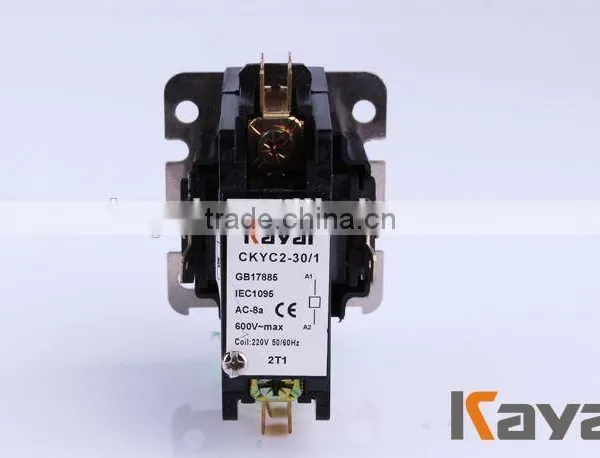

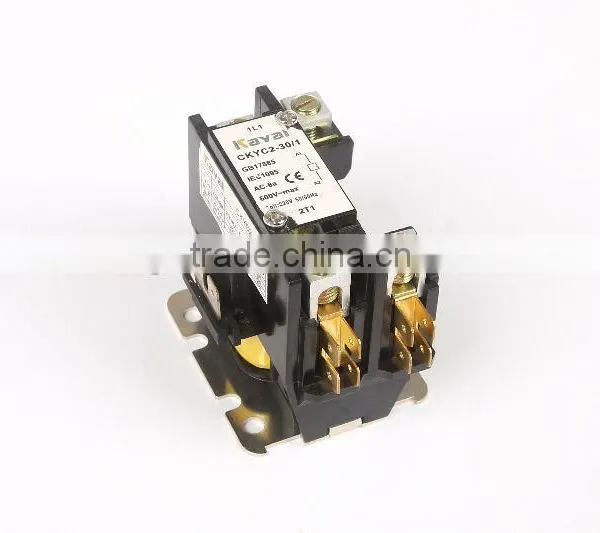

3.Pictures

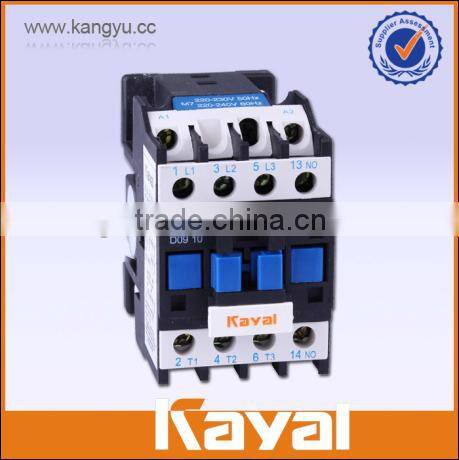

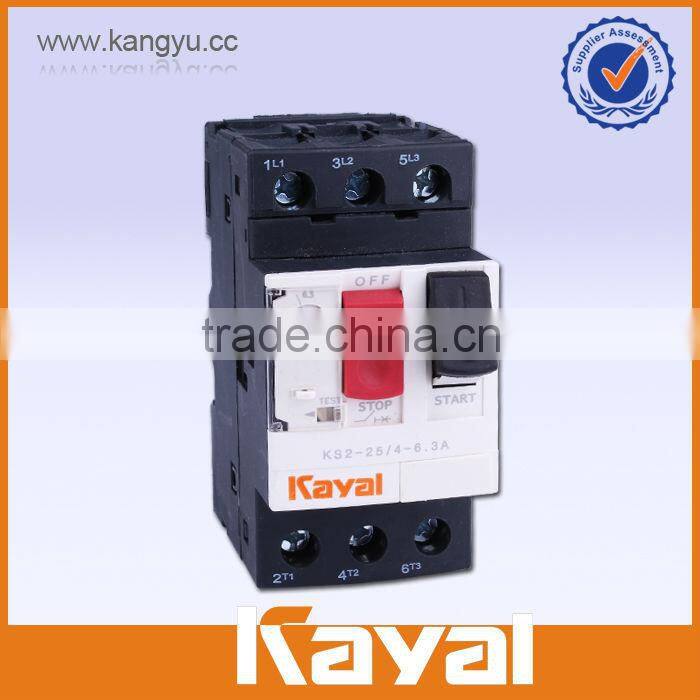

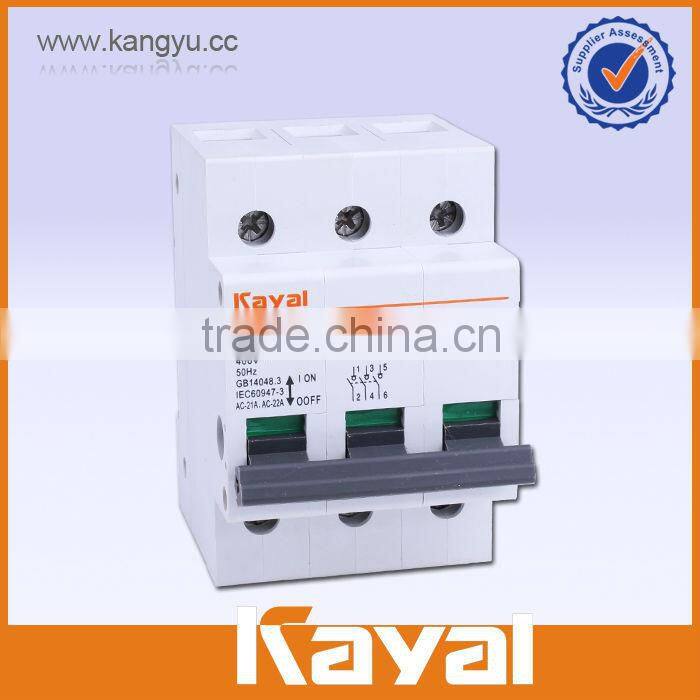

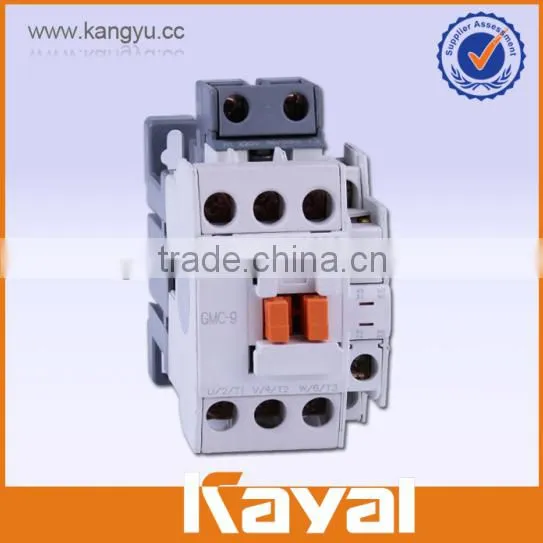

4.Other products
Our company is specializing in manufacturing low voltage electrical products such as AC contactors, definite purpose AC contactors, circuit breakers, earth leakage circuit breakers, distribution boxes, illumination
equipment, and distribution switches. With advanced technology, we have gained a series of approvals, such asISO9001:2000, CE, CB, CCC and PICC, and especially we got UL certificate for definite purpose AC contactors.We always consider quality and service first. Our policy is "Quality First; Improve Technology; Expecting Future".
Our tenet is "Product & Brand Competition; Quality Serve the world".
Cooperate with us, we will be honored and you will benefit from:
1.- Your client satisfied on the right schedule and quality;
2.- Your can get good reputation from your market and obtain more orders;
3.- Our professional service before and after sale;
4.- The reasonable price;
5.- Any questions from you are welcome and will be replied in 24 hours.
- Package :Polybag and carton box export standard package or designed by yourself
- Delivery date :Within 2 weeks after get payment
- Delivery mode:Ocean shipping/Air transport/Express delivery
- Payment terms:T/T in advance L/C at sight
Q 1.How about your experience?
A.We have our own professional factory and R&D department & more than 13 years producing experience
Q 2. What's your advantage ?
A. We have complete set of machines such as ,injection molding machines and punchers,
with these,we can make by ourselves from the inside parts to outside.
It greatly increases the efficiency and saves the cost.
Q 3. How's the delivery time ?
A. usually it will take about 15-30 days for production
Q 4. Tell me the standard of package?
A. For inner box and master carton are made as per international standards,
and we can make special design for you if need.
Also if necessary, will be packed in pallet to avoid any damage.
Q 5.Will be any warranty for your item ?
A. We offer one year warranty for our products. Please feel assured.
