Specifications
terminal types for electrical cable1.insulated cable terminal lug
2.CE,SGS,ROHS
3.Full ranges of ring shape
4.Sample free

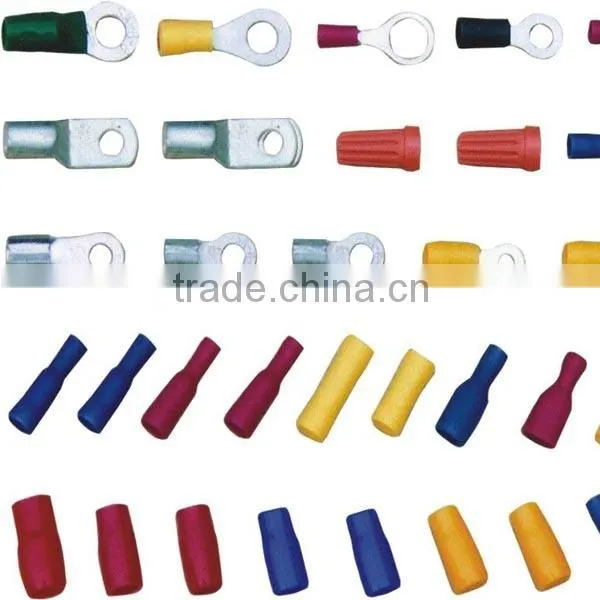

Terminal types for electrical cable with CE ROHS
Terminal types for electrical cable
1.insulated ring shape terminal types lug
2.CE,SGS,ROHS,TUV
3.Full ranges of terminals for selection
4.Sample free
lor:blue red black yellow white
Terminal types for electrical cable
1.Material: Al,Steel,Brass,PB,copper
2.Surface Treatment: Tin-Plated ,Gold Plated or As your customer request
3.Provide accordingly with our own made connectors
4.Package: Standard Export Carton,Wood Carton, or customize
5.Application: Be crimped with cable and suitable for electric machines,home appliance and automobiles
6.Great Capability to Open Mold
7. We have various different shape products ,please be welcome to contact us
we also specialized in varieties of terminals or connector,in stock,item name: cable tie; joint; ground brass ring terminal lug type;ground copper terminal lug type, terminal crimping tool lug; Gland;terminal block; ;furcate terminal;ring terminal;naked terminal;pre insulated terminal;insert needle naked terminal;middle joint;naked terminal in the middle;male/female terminal.etc,if you have any need,please dont hesitate to contact me.
Electrical cable terminal type's structure drawing
copper insulated ground ring terminal type for electrical cable terminal cable lugs red | |||||||||
| lead section: 0.5~1.5mm2(A.W.G: 22~16) Imax=19A material: pure copper thickness:0.75mm | |||||||||
| Item NO | USA BOLT NO | BOLT dia.d2(mm) | dimension(mm) | color | |||||
| B | L | F | H | Dφ | |||||
| RV 1.25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10 | 4.3 | red | |
| RVS 1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | ||||
| RVM 1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | ||||
| RVL 1.25-3.5 | #6 | 4.3 | 8 | 21.5 | 7 | ||||
| RVS 1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | ||||
| RVL 1.25-4 | #8 | 4.3 | 8 | 21.5 | 7 | ||||
| RV 1.25-5 | #10 | 5.3 | 8 | 21.5 | 7 | ||||
| RVL 1.25-5 | #10 | 5.3 | 9.8 | 23 | 8.5 | ||||
| RVS 1.25-6 | 1/4 | 6.4 | 9.8 | 23 | 8.5 | ||||
| RV 1.25-6 | 1/4 | 6.4 | 11.6 | 27.5 | 11.1 | ||||
| RV 1.25-8 | 5/16 | 8.1 | 11.6 | 27.5 | 11.1 | ||||
| RV 1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | ||||
| RV 1.25-12 | 1/2 | 13 | 19.2 | 36 | 16.5 | ||||
outdoor cable termination
ABOUT FACTORY
About shipping of TERMINAL TYPES FOR CABLE LUG
| Shipping Terms &Conditions | ||
|
* FAST SHIPPING from our Wenzhou China Factory! * Item shipped in 5-15 working days after payment is received depends on the quantity of the order. * Item shipped by UPS,FedEX,DHL and others, depending on size and weight of total order. * Item only shipped to address listed on the invoice; Not responsible for shipping to wrong address. * Tracking number will be sent to you as soon as we ship the goods. |
