Specifications
electrical terminal1.electrical terminal lug
2.CE,SGS,ROHS
3.Full ranges of ring cable shape
4.Sample free
RV2-8 16-14AWG TO-JTK electrical terminal
Electrical terminal cable
1.brass insulated ring shape cable terminal cable lug
2.CE,SGS,ROHS,TUV
3.Full ranges of terminals for selection
4.Sample free
lor:blue red black yellow white

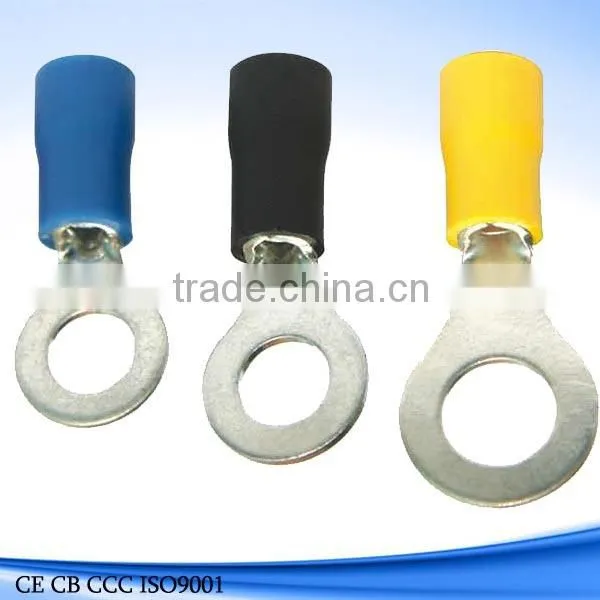

Insulated Electrical Ring Terminal cable
1.Material: Al,Steel,Brass,PB,copper
2.Surface Treatment: Tin-Plated ,Gold Plated or As your customer request
3.Provide accordingly with our own made connectors
4.Package: Standard Export Carton,Wood Carton, or customize
5.Application: Be crimped with cable and suitable for electric machines,home appliance and automobiles
6.Great Capability to Open Mold
7. We have various different shape products ,please be welcome to contact us
we also specialized in varieties of terminals or connector,in stock,item name: cable tie; joint; brass electrical ring terminal lug type;copper electrical ring terminal lug type,cable terminal crimping tool lug; Gland;terminal block; ;furcate terminal;ring terminal;naked terminal;pre insulated terminal;insert needle naked terminal;middle joint;naked terminal in the middle;male/female terminal.etc,if you have any need,please dont hesitate to contact me.
insulated electrical ring terminal cable lug type's structure drawing
copper insulated electrical terminal cable lug type ring cable terminal lugs red | |||||||||
| lead section: 0.5~1.5mm2(A.W.G: 22~16) Imax=19A material: pure copper thickness:0.75mm | |||||||||
| Item NO | USA BOLT NO | BOLT dia.d2(mm) | dimension(mm) | color | |||||
| B | L | F | H | Dφ | |||||
| RV 1.25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10 | 4.3 | red | |
| RVS 1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | ||||
| RVM 1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | ||||
| RVL 1.25-3.5 | #6 | 4.3 | 8 | 21.5 | 7 | ||||
| RVS 1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | ||||
| RVL 1.25-4 | #8 | 4.3 | 8 | 21.5 | 7 | ||||
| RV 1.25-5 | #10 | 5.3 | 8 | 21.5 | 7 | ||||
| RVL 1.25-5 | #10 | 5.3 | 9.8 | 23 | 8.5 | ||||
| RVS 1.25-6 | 1/4 | 6.4 | 9.8 | 23 | 8.5 | ||||
| RV 1.25-6 | 1/4 | 6.4 | 11.6 | 27.5 | 11.1 | ||||
| RV 1.25-8 | 5/16 | 8.1 | 11.6 | 27.5 | 11.1 | ||||
| RV 1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | ||||
| RV 1.25-12 | 1/2 | 13 | 19.2 | 36 | 16.5 | ||||
outdoor cable termination
ABOUT FACTORY
About shipping of ELECTRICAL TERMINAL CABLE LUG
| Shipping Terms &Conditions | ||
|
* FAST SHIPPING from our Wenzhou China Factory! * Item shipped in 5-15 working days after payment is received depends on the quantity of the order. * Item shipped by UPS,FedEX,DHL and others, depending on size and weight of total order. * Item only shipped to address listed on the invoice; Not responsible for shipping to wrong address. * Tracking number will be sent to you as soon as we ship the goods. |
