Fully Automatic PET Strap Making Machine
- 10 Set / Sets per Month
- SHANGHAI
- T/T Credit Card
Product Details
Condition: | New | Application: | Other, PET Strap Making Machine | Plastic Processed: | Other, PET |
Screw Design: | Single-screw | Automatic Grade: | Automatic PET Strap Making Machine | Place of Origin: | Jiangsu, China |
Brand Name: | Pet strap production line | Model Number: | PET Strap Making Machine | Voltage: | According to your demand |
Dimension(L*W*H): | 5700mmx1800mmx2600mm | Weight: | 4500kg | Certification: | CE/ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PET Strap Making Machine /PET strapping production line/ pet straps line
Feature- PET Strap Making Machine :
PET strap is recognized a new environment protective strapping material to substitute for Steel Strap &PP Strap in the ruling
international market. They are not only the aggregation of the intensity and the tenacity of steel strap, but also overcome the
disadvantage of the tradition packing material such as insufficient intensity, brittle and so on. At present, they have been
applied in wood, steel,and so on.
1.PET has characteristic of good rigidity,high temperature resistance and rust resistance.
2.The PET trap has the characteristic of high stretch-resistance,small extending rate,impactresistance,good flexible,
easy for operation,cheap and safe,it is substitute of steel belt,used in packing paper,woodwork,textile,cotton,fiber and pallet.
3.the product is easy for usage and connected by normal steel button,it is also suitable for manual and automatic packing
machine
4.Mould’s design according user’s requirements, same mould can produce different size products; improved screen change
unit with no material-leakage.
PET Strap Making Machine working procedure
Material pre-treatment (drying system)----parallel twin screw(or single screw) extruding system----mould-----stable temperature water cooling system---7 roller pre-heating system----5 rollers first stretching system---constant hot air stretching tank---5 rollers second stretching system----embossing system---hot air forming system ---3 rollers haul off---water cooling tank ---3 rollers haul off---winding.
Technical parameter of PET Strap Making Machine
Model | Output (kg/h) | Specification | Power Consumption |
MG50 | 50~60 | 9~20 | 45~50 KW |
MG60 | 50~60 | 9 11 13 16 | 45~50 KW |
MG90 | 80~90 | 9~25 | 55~60 KW |
MG120 | 110~120 | 11 13 16 19 | 55~60 KW |
MG160 | 120~160 | 19 16 12.7 9 | 70~90 KW |

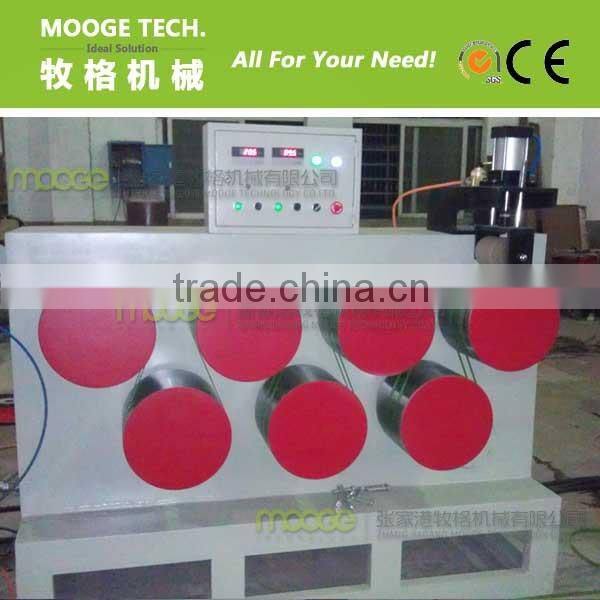

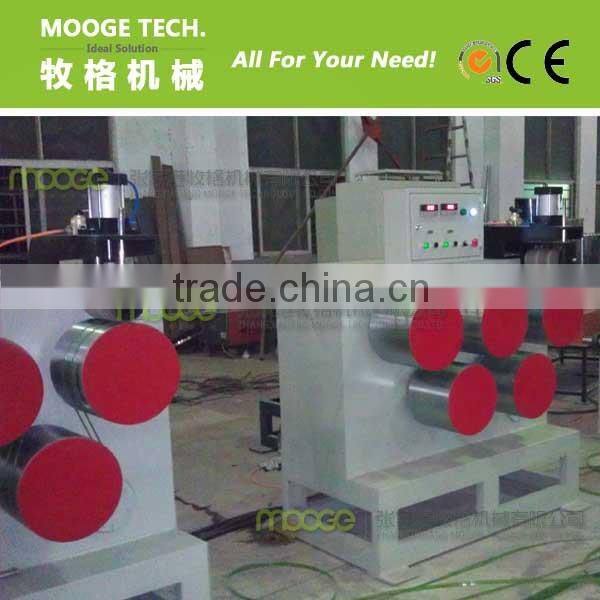

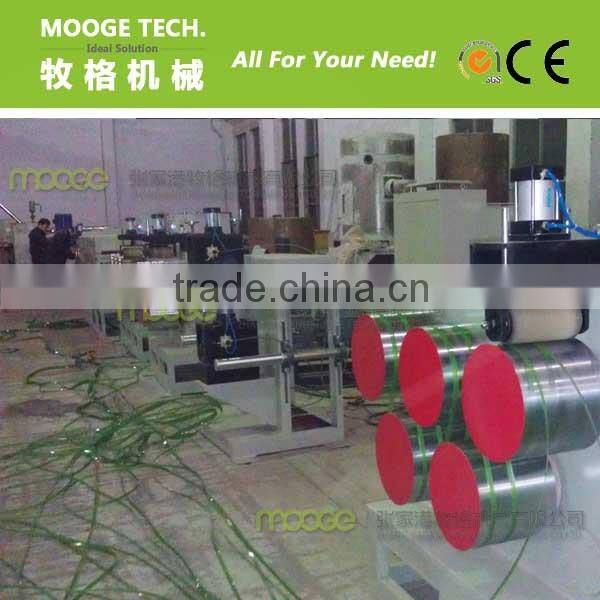

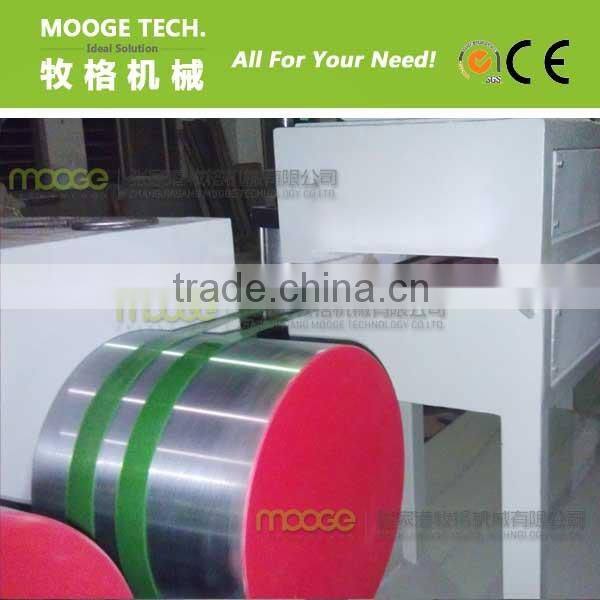

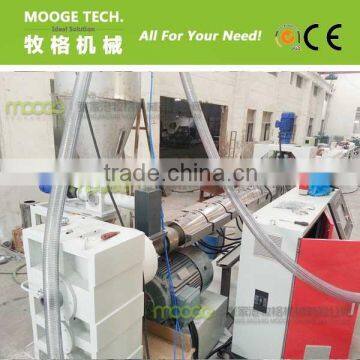

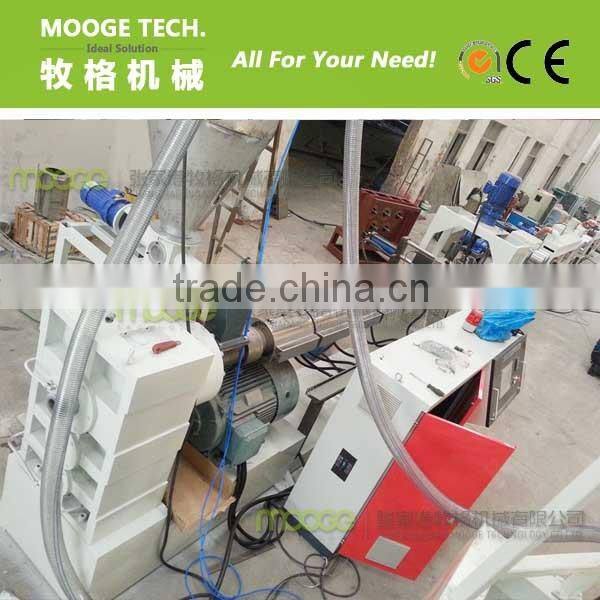

Photos of PET Strap Making Machine
