Specifications
recycle plastic granules making machine1- HDPE Flakes pelletizing machine
2- PE/PP Film pelletizing Machine

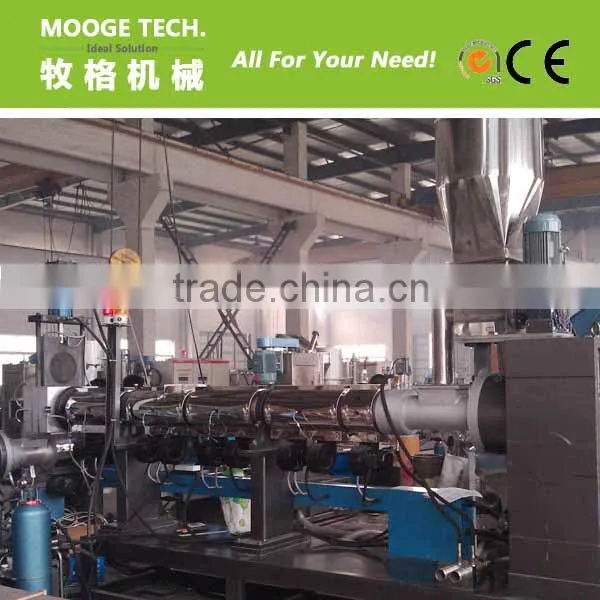

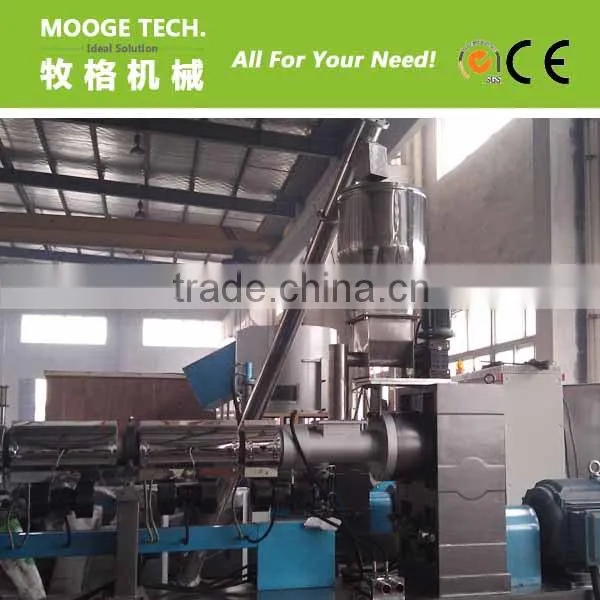

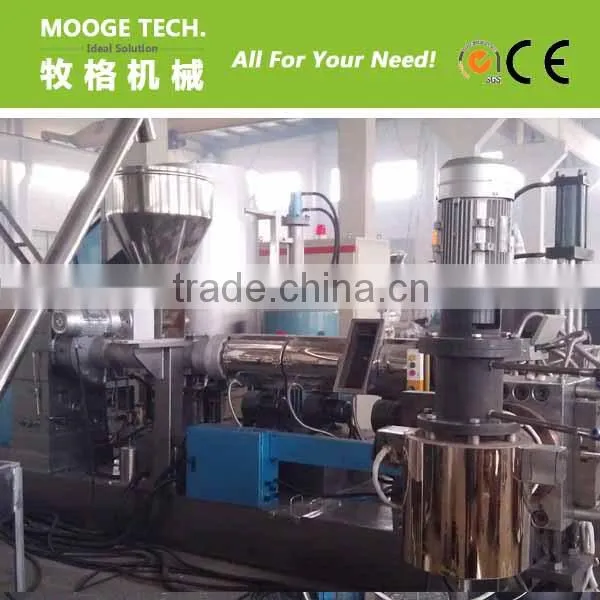

Recycle plastic granules making machine , Plastic Bottle Recycling Machine , Plastic Recycling Line
l Its mainly used for the crushed, rigid HDPE/LDPE/PP flakes from the bottles, containers, buckets, pipes and so on to produce granules;

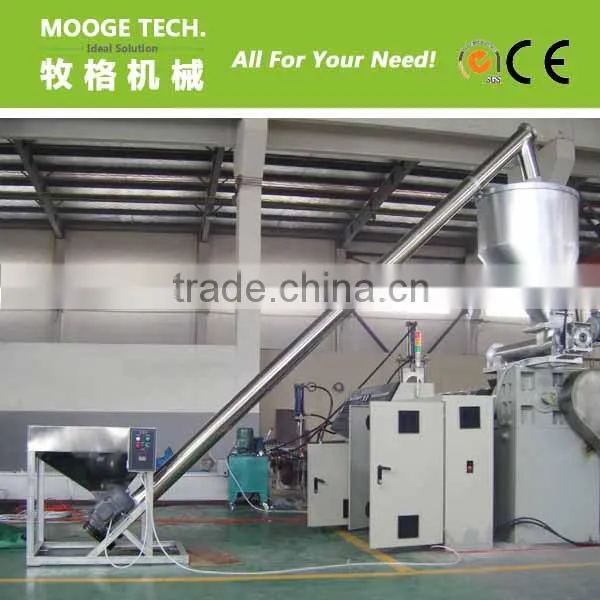

l It can use the vacuum automatic loading system or screw loader machine loading the material into the dosing
feeder hopper. The screw is special designed for the material eating, its very fast to take the material inside an
d made by 38CrMnAlA material for long time use;
l The extruder have air vent degassing system to outlet the humidity. We also have the vacuum degassing system for optional choose(Its better for the humidity outlet). The extruder heating by the cast aluminum heater and cooling by blower, its durable use;

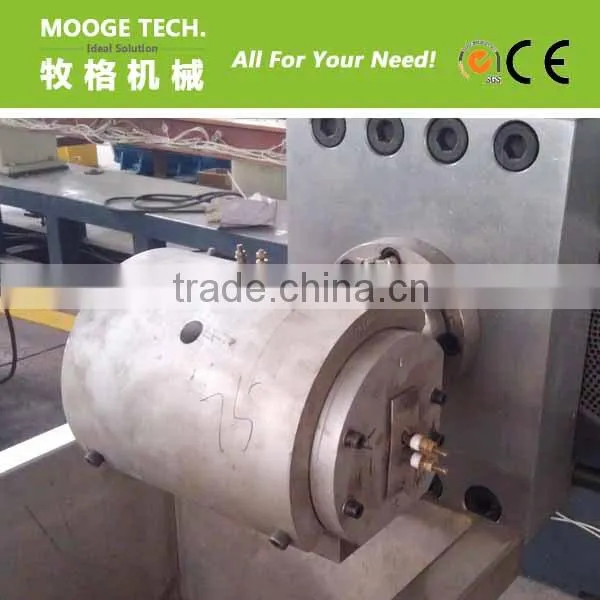

l There is hydraulic screen changer installed on the extruder to filtering out the dirty. Its driven by the hydraulic syst
em very fast and non-stop. Very convenient for the screen change; You can use different mesh screen to produce
different quality granules;
l You can use one extruder or two extruder for 2 times filtering. use two extruder will do one more time filtering so th
e output material will be better quality.
l There are 2 different cutting model for choose: haul-off string cutting type, die face(water-ring) cutting system. With

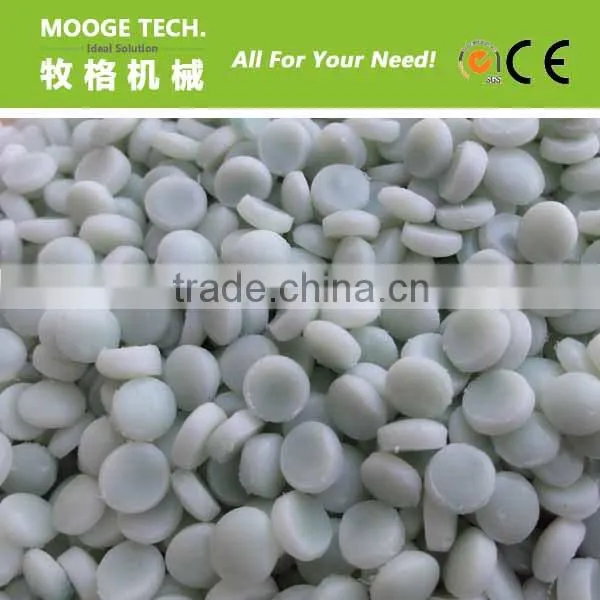

the die face cutting can produce more beautiful and uniform granules. Also it can save labor and generating less
waste material;

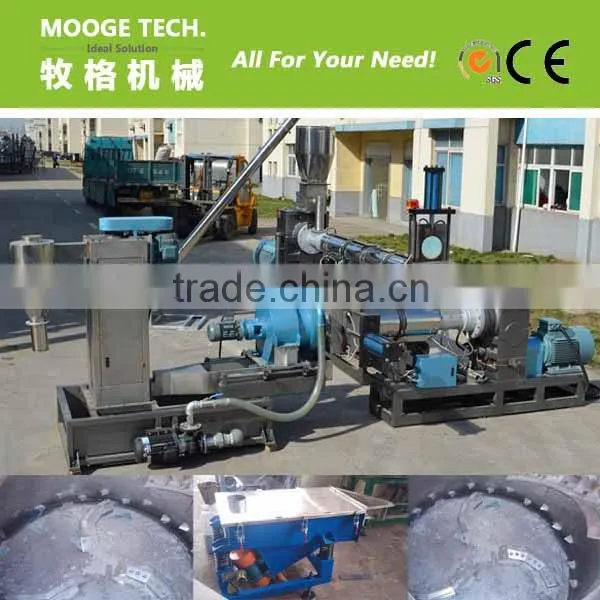

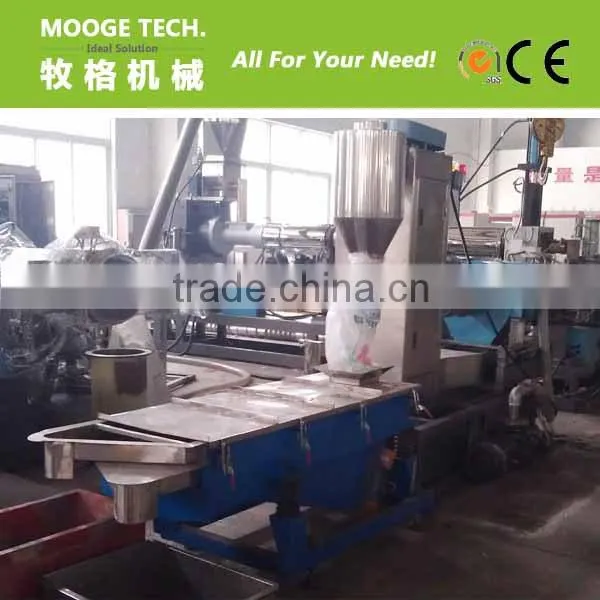

l You can choose use the vibrating screen machine to screening out bigger size material and blowing it back into
extruder re-granulation.
l We can produce the machinery according to your special requirement:
Production Line Model:
Model |
Screw diameter (mm) |
L/D |
Output (kg/h) |
MPL-120/120 |
120 |
25~33 |
200~300 |
120 |
8~10 |
||
MPL-130/130 |
130 |
25~33 |
400~550 |
130 |
8~10 |
||
MPL-140/140 |
140 |
25~33 |
600~800 |
140 |
8~10 |
||
MPL-160/160 |
160 |
25~28 |
800~1000 |
160 |
8~10 |
l Please tell us as detail as what you want?
l What’s your raw material it is?
l What capacity you want it performance?
l Do you need the single stage or Double stage pelletizing line?
l Do you need the vacuum degassing system?
l What cutting system do you want? ( Die face cutting or Water strand cutting?)
l What’s the usage of your produced granules?
l Pre-sale: we given client the details technician offer, sign the sales contract etc.
l In-sales: we supply the details layout, installation instruction, technician support for the clients;
l After sales: we arrange engineer to install the machinery and training the workers for client;
l We have 24hours team to solve the after sales problem;
l We have free spare parts with the machine;
l We supply long term spare parts for every customer
l We always up date the new technology to every customer
l For the loose cargo we will packing by Wooden box
l For the Full container loading we are packing the machine by film and some on pallet accordingly
l We can shipping the goods by air or by sea
l We will send pictures of cargo loading to our client to check and keep recording
l we can send cargo to client’s warehouse to loading
