Specifications

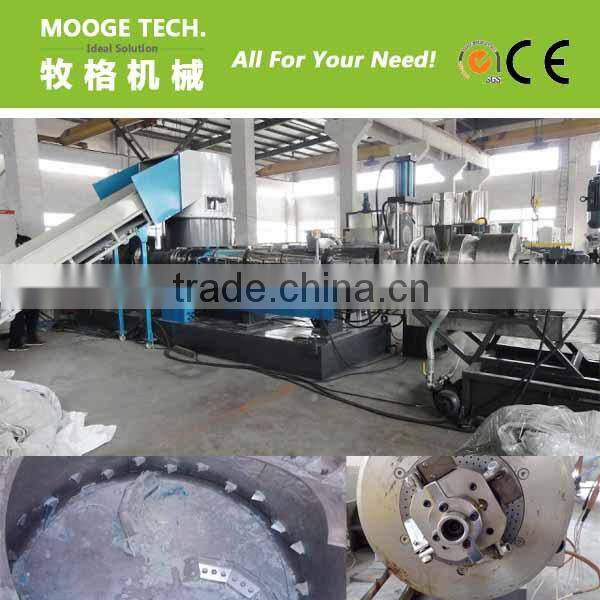

The Film Compacting Pelleziting Line Specially for the HDPE/PP Film with high capacity, die face cutting, good quality.Film Compacting Pelleziting Line
PE/PP Film, Sack, PP Rafia Agglomerating Pelletizing Line:
This PE/PP Film Agglomerating Pelletizing Line adopt the Europe design, advanced technology; Its mainly for the

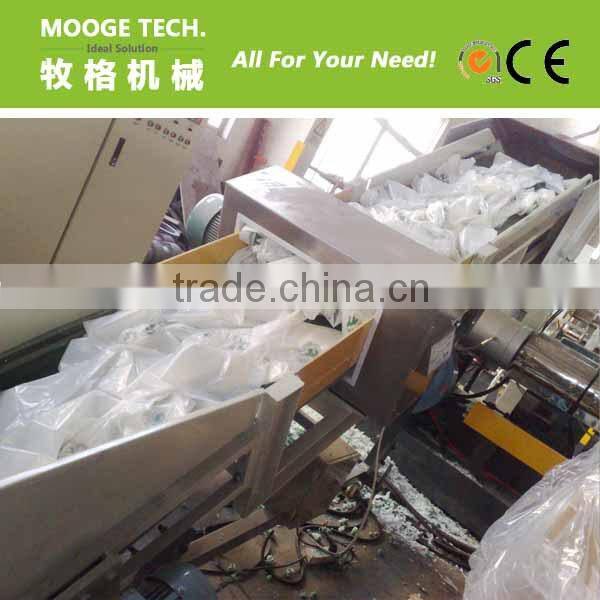

clean HDPE/PP film material, sack material and for the crushed, washed, film material; It use the conveyor mach

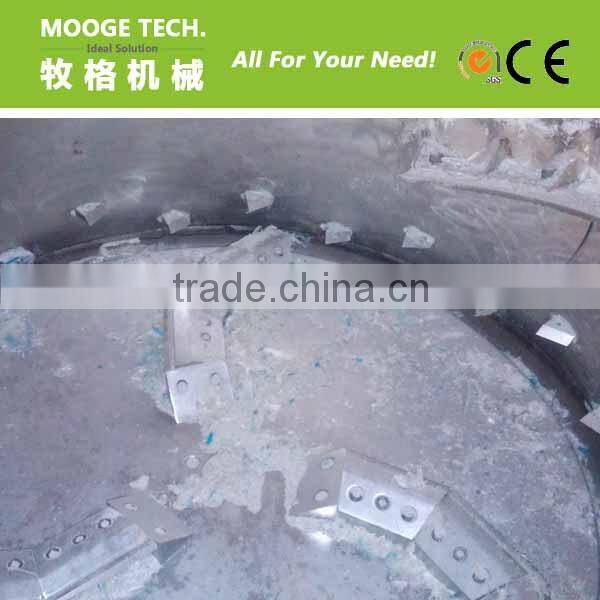

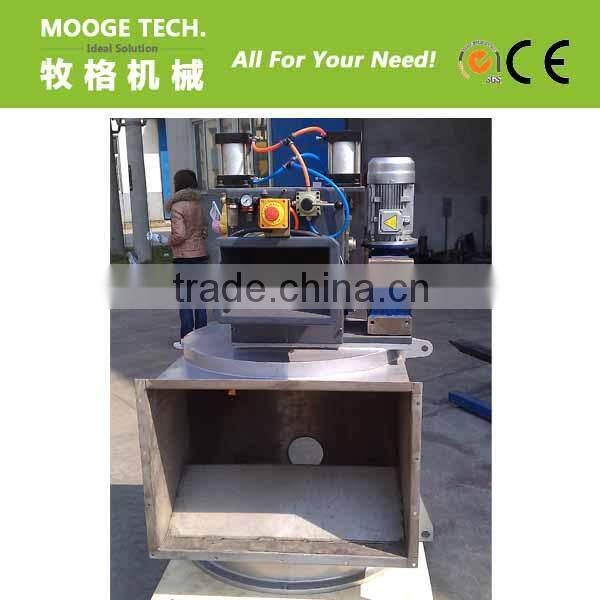

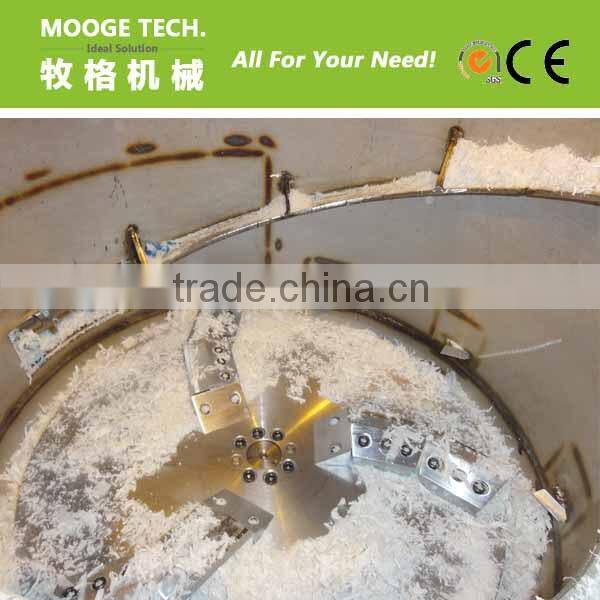

ine feeding material into the compactor with metal detector fixed on it; The compactor will cutting and agglomerat
ing the raw material, and continuously feeding material into the screw with high speed so the capacity is high; T
he screw and barrel is made by 38CrMnAlA mterial which is durable use;
The extruder have air vent degassing system to outlet the humidity. We also have the vacuum degassing system
for optional choose(Its better for the humidity outlet). The extruder heating by the cast aluminum heater and cooling
by blower, its durable use;

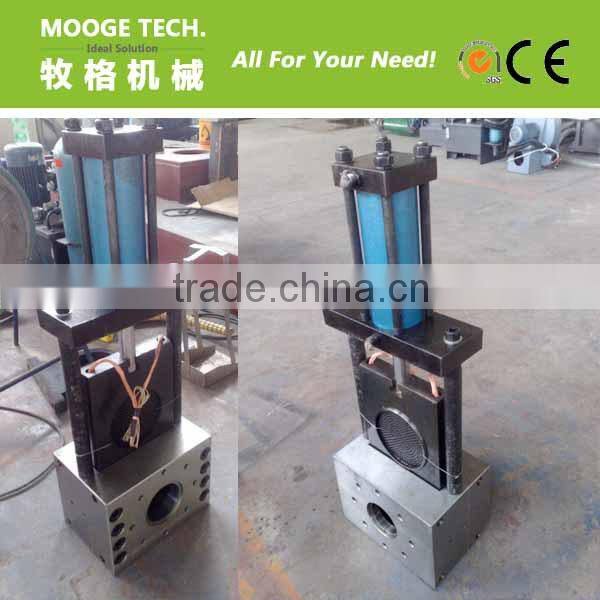

There is hydraulic screen changer installed on the extruder to filtering out the dirty. Its driven by the hydraulic syst
em very fast and non-stop. Very convenient for the screen change; You can use different mesh screen to produce
differen quality granules;
You can use one extruder or two extruder for 2 times filtering. use two extruder will do one more time filtering so th
e output material will be better quality.
There are 2 different cutting model for choose: haul-off string cutting type, die face(water-ring) cutting system. With
the die face cutting can produce more beautiful and uniform granules. Also it can save labor and generating less
waste material;
You can choose use the vibrating screen machine to screening out bigger size material and blowing it back into
extruder re-granulation.
We can produce the machinery according to your special requirement:
Model |
Screw Dia. (mm) |
Screw L/D |
Capacity (kg/h) |
|
APL-100/100
|
100 |
25~33 |
200~300 |
100 |
8~10 |
||
APL-130/130 |
130 |
25~33 |
400~500 |
130 |
8~10 |
||
APL-160/160 |
160 |
25~33 |
500~600 |
160 |
8~10 |
||
APL-180/180 |
180 |
25~28 |
800~1000 |
180 |
8~10 |
1- How to Choose proper Products you want?
l Please tell us as detail as what you want?
l What’s your raw material it is?
l What’s the final products you want to produce?
l What capacity you want it performance?
2- How to Control the quality?
l We have technical, engineer team design the sample machinery before enter into market
l Production QC team ensure the machine manufacturing quality
l We will running every machine after finished before shipment
l Optional choose by client running the machinery by material
l Pre-sale: we given client the details technician offer, sign the sales contract etc.
l In-sales: we supply the details layout, installation instruction, technician support for the clients;
l After sales: we arrange engineer to install the machinery and training the workers for client;
l We have 24hours team to solve the after sales problem;
l We have free spare parts with the machine;
l We supply long term spare parts for every customer
l We always up date the new technology to every customer
