Meanwell PCD-16-1050 1050mAconstant Current Led Driver

Hangzhou Hopehill Electronic Co., Ltd.
Meanwell PCD-16-1050 1050mAconstant Current Led Driver thumbnail-1
Meanwell PCD-16-1050 1050mAconstant Current Led Driver photo-1
US$ 5 - 15 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MEANWELL, Mean Well
Model Number:
PCE-16 -1050mA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MEANWELL, Mean Well
Model Number PCE-16 -1050mA
Output Power Other, 90-135VAC or 180-295VAC
Output Type Single
Input Voltage Other, 115-277VAC
Output Voltage 12-16V
Output Current 1050mA

Specifications

1. 1050ma constant current led driver
2. constant current
3. MeanWell Warranty: 2 Years
4. TUV, UL, CE

                                                Welcome to Hopehill Family

Meanwell PCD-16-1050 1050mAconstant current led driver

Meanwell PCD-16-1050 1050ma constant current led driver

Meanwell PCD-16-1050 1050mAconstant current led driver

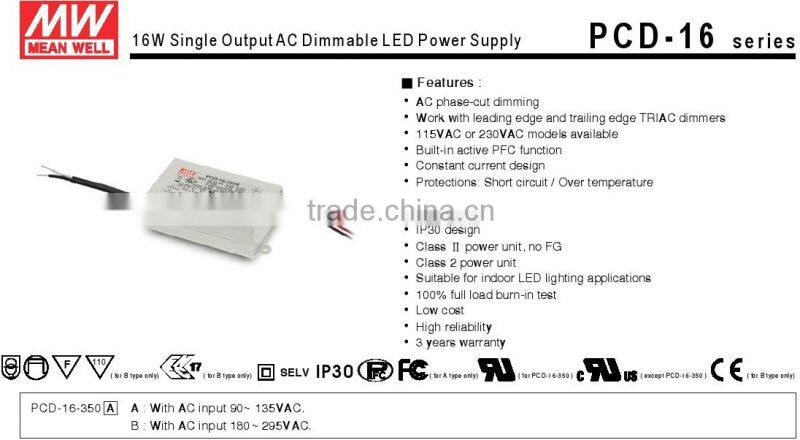

Main Features

♦AC phase-cut dimming

♦ Work with leading edge and trailing edge TRIAC dimmers

♦ 115VAC or 230VAC models available

♦ Built-in active PFC function

♦ Constant current design

♦ Protections: Short circuit / Over temperature

♦ Cooling by free air convection

♦ Fully isolated plastic case

♦ IP30 design

♦ Class 2 power unit

♦ 100% full load burn-in test

♦ High reliability

♦ 3 years warranty



Specifications

♦  700ma constant current led driver 220v

♦  constant current

♦  MeanWell Warranty: 2 Years

♦  TUV, UL, CE

♦ Application: LED lighting

Product  Specification

MODELPCD-16-1050
OUTPUTRATED CURRENT1050mA
OPERATING VOLTAGE RANGE12-16v
CURRENT RANGE0 ~ 350mA
RATED POWER16.8W
RIPPLE & NOISE (max.) Note.12.2Vp-p
OUTPUT VOLTAGE (max.)25V
SETUP TIME1000ms / 230VAC 2000ms / 115VAC at full load
INPUTFREQUENCY RANGE47 ~ 63Hz
POWER FACTORPF 0.9 at full load and rated output voltage
EFFICIENCY(Typ.)82%
AC CURRENT0.4A/115VAC 0.2A/230VAC
INRUSH CURRENT(max.)40A/230VAC
LEAKAGE CURRENT<0.5mA / 240VAC
PROTECTIONOVER CURRENT95 ~ 110%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUITHiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE95°C ± 10 °C(TSW1) detect on heatsink of power transistor
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENTWORKING TEMP.-30 ~ +60 °C(Refer to output load derating curve)
WORKING HUMIDITY20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY-40 ~ +80°C , 10 ~ 95% RH
TEMP. COEFFICIENT±0.03%/°C (0 ~ 50 °C)
VIBRATION10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMCSAFETY STANDARDSUL1310 Class 2, TUV EN61347-1, EN61347-2-13, CAN/CSA C22.2 No. 223-M91(except for 48V) approved
WITHSTAND VOLTAGEI/P-O/P:3.75KVAC
ISOLATION RESISTANCEI/P-O/P:100M Ohms / 500VDC / 25°C / 70% RH
EMI CONDUCTION & RADIATIONCompliance to EN55015 Class B
HARMONIC CURRENTCompliance to EN61000-3-2 Class C ; EN61000-3-3
EMS IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024,EN61547, light industry level, criteria A
OTHERSMTBFKhrs min. MIL-HDBK-217F (25 °C)

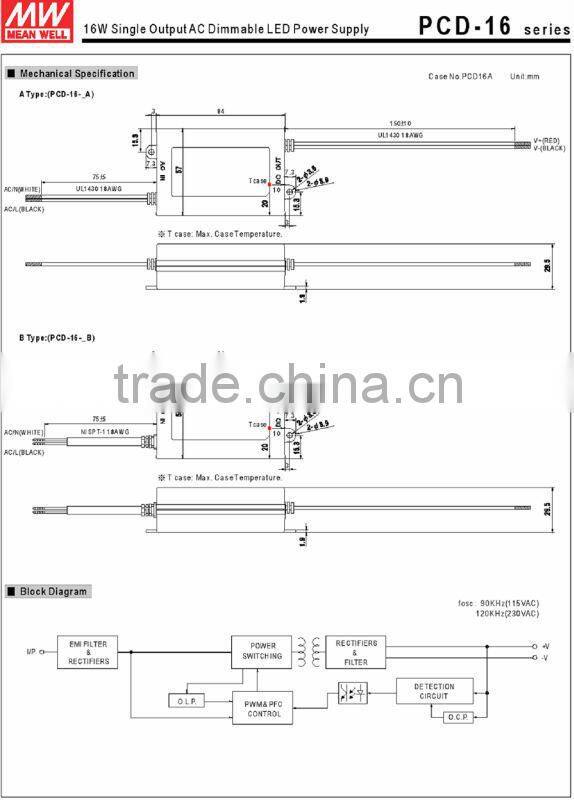

DIMENSION84*57*29.5mm (L*W*H)
PACKING0.19Kg; 72pcs/14.7Kg/0.75CUFT
NOTE1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. Direct connecting to LEDs is not suggested for models with “RIPPLE & NOISE” > 10% and using additional drivers is highly recommended.

Meanwell PCD-16-1050 1050mAconstant current led driverMeanwell PCD-16-1050 1050mAconstant current led driver

Meanwell PCD-16-1050 1050mAconstant current led driver
