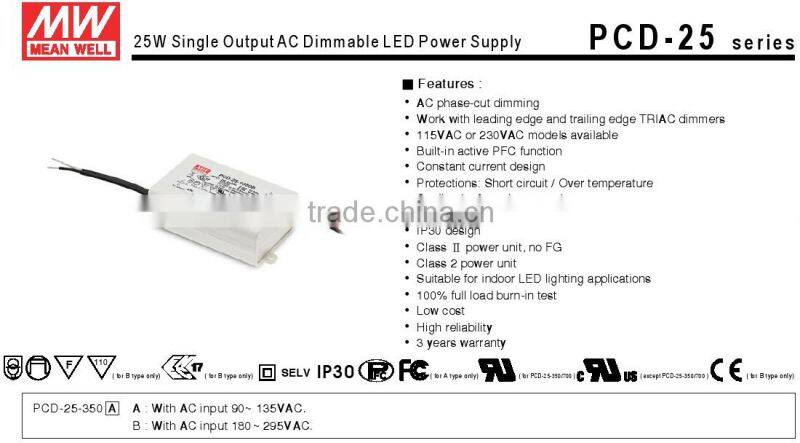

Meanwell PCD-25-350 Led Tunnel Light With Meanwell Driver

MODEL

PCD-25-350

OUTPUT

RATED CURRENT

350mA

OPERATING VOLTAGE RANGE

40-58V

CURRENT RANGE

0 ~ 350mA

CURRENT ACCURACY

±5.0%

RATED POWER

20,3W

RIPPLE & NOISE(max.)      Note.1

4.6Vp-p

NO LOAD OUTPUT VOLTAGE(max.)

63V

SETUP TIME

1000ms/230VAC     2000ms/115VAC at full load

INPUT

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR(Typ.)

PF>0.9/115VAC,PF>0.9/230VAC,PF>0.9/227VAC at full load(Please refer to “Power Factor Characteristic” curve)

EFFICIENCY (Typ.)

81%

AC CURRENT(Typ.)

0.6A/115VAC   0.3A/230VAC

INRUSH CURRENT (max.)

40A/230VAC

LEAKAGE CURRENT

<0.5mA/240VAC

PROTECTION

SHORT CIRCUIT

Hiccup mode, recovers automatically after fault condition is removed

OVER TEMPERATURE

95°C±10°C (RTH1)

Protection type: Shut down o/p voltage,re-power on to recover

ENVIRONMENT

WORKING TEMP.

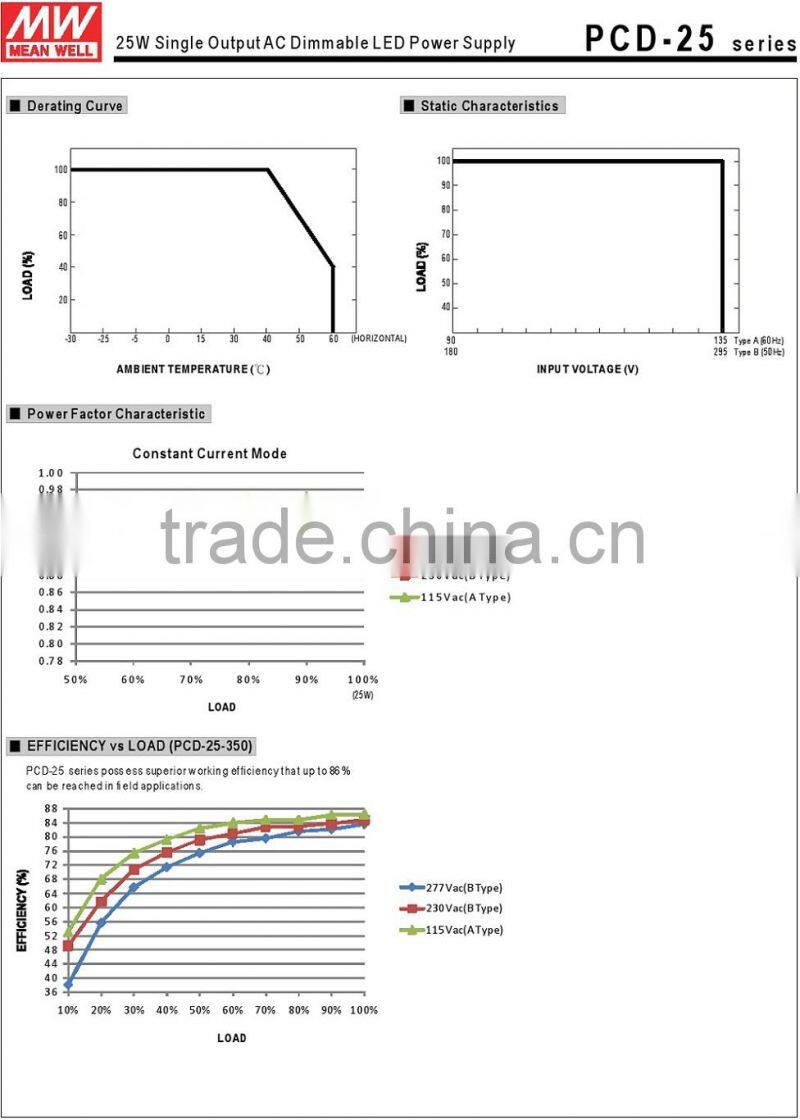

-30 ~ +60°C (Refer to “Derating curve”)

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80°C, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C (0 ~ 50)°C

VIBRATION

10 ~ 500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes

SAFETY & EMC

SAFETY STANDARDS

Design refer to UL8750, TUV EN61347-1, EN61347-2-13

WITHSTAND VOLTAGE

I/P-O/P: 3.75KVAC

ISOLATION RESISTANCE

I/P-O/P: 100M Ohms / 500VDC / 25°C / 70%RH

EMC EMISSION

Compliance to EN55015(B type only),EN61000-3-2 Class C,EN61000-3-3,FCC part18 Class A(A type only)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024, EN61547,light industry level,criteria A

OTHERS

MTBF

906.5Khrs min.   MIL-HDBK-217F(25°C)

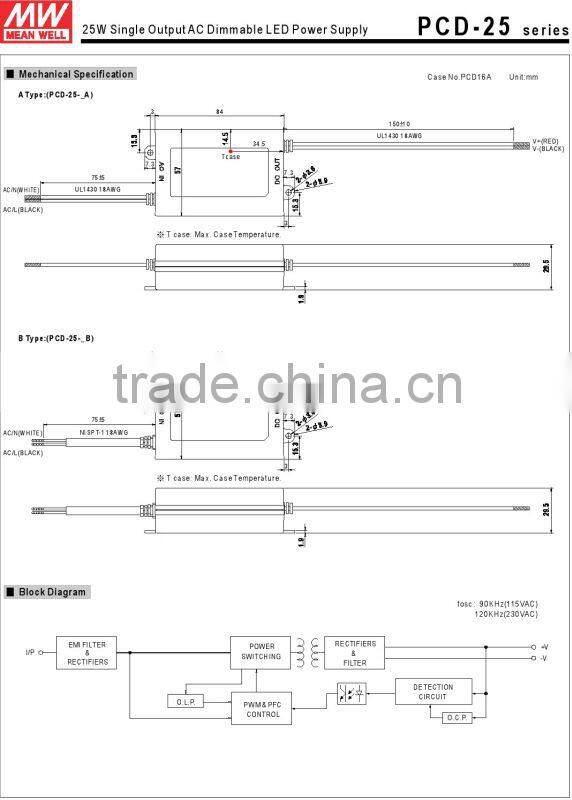

DIMENSION

84x57x29.5mm(LxWxH)

PACKING

0.19Kg;72pcs/14.7kg/0.92CUFT

NOTE

1.Ripple & Noise are measured at 20MHz of bandwidth by using a 12’’ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

2.Direct connecting to LEDs is suggested,but is not suitable for using additional drivers.
