Help CenterSRL-Z Series Hot Cooling Mixer
Related Products
Specifications
hot cooling mixer:1.Double speed or invertor control;
2.Use for PVC,PP,PE etc.
3.High output and high efficien

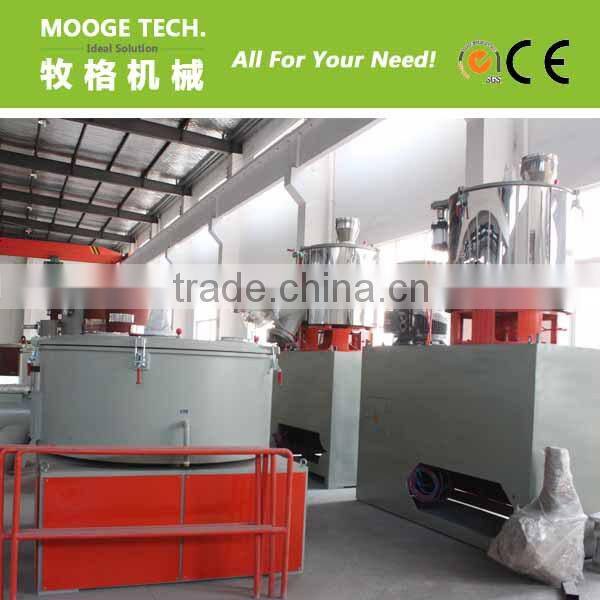

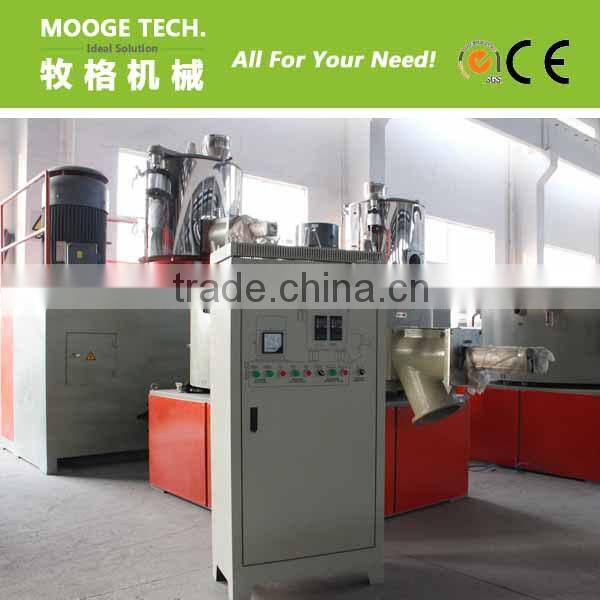

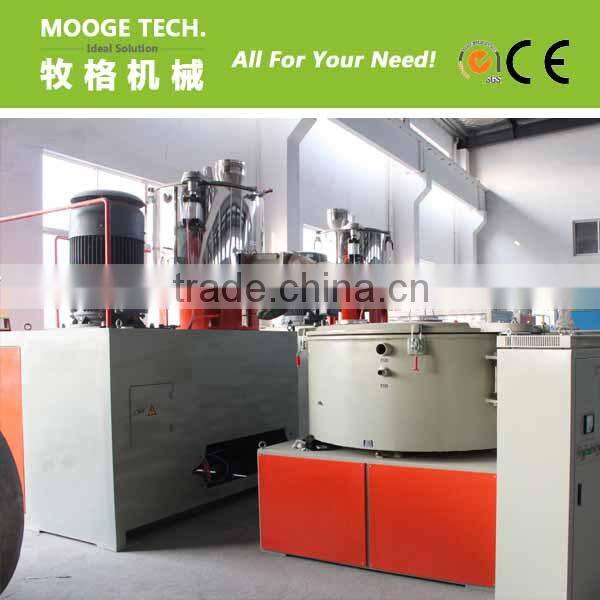

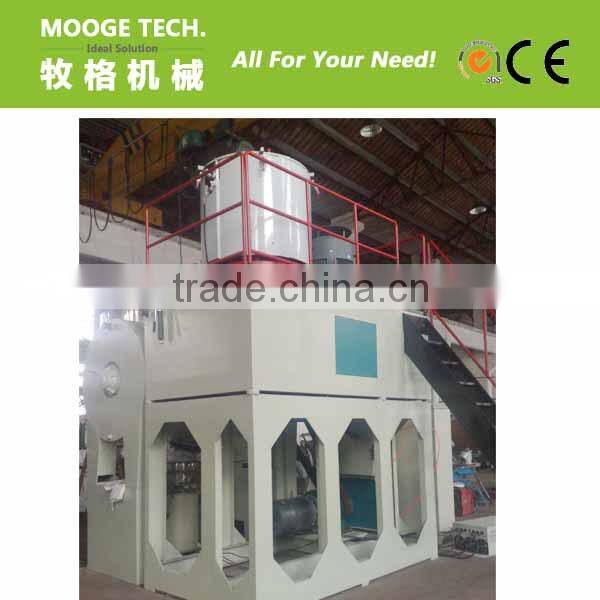

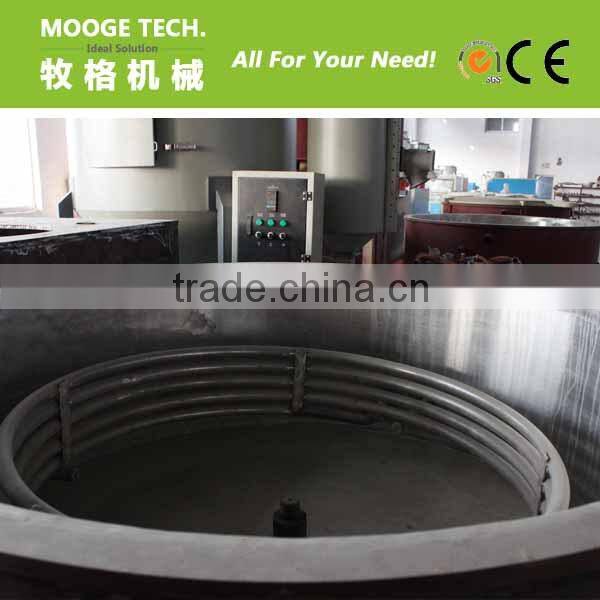

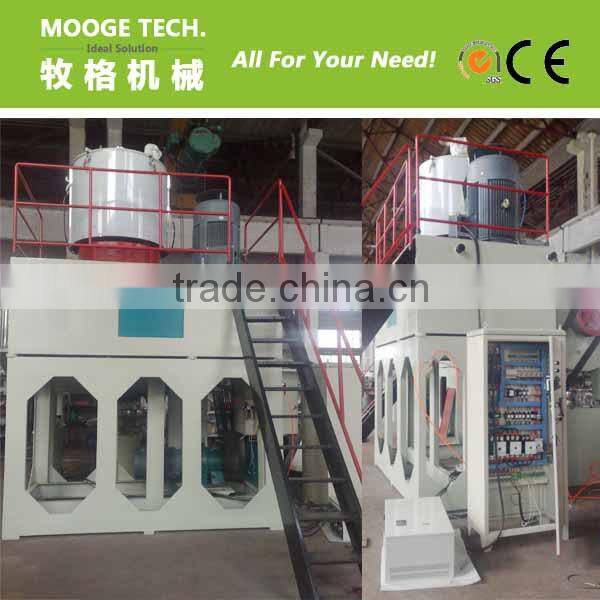

SRL-Z series hot cooling mixer
Feature:
1. The upper set is for hotting, and the lower one is for cooling;
2. We also can use the variable-frequency motor as your needs;

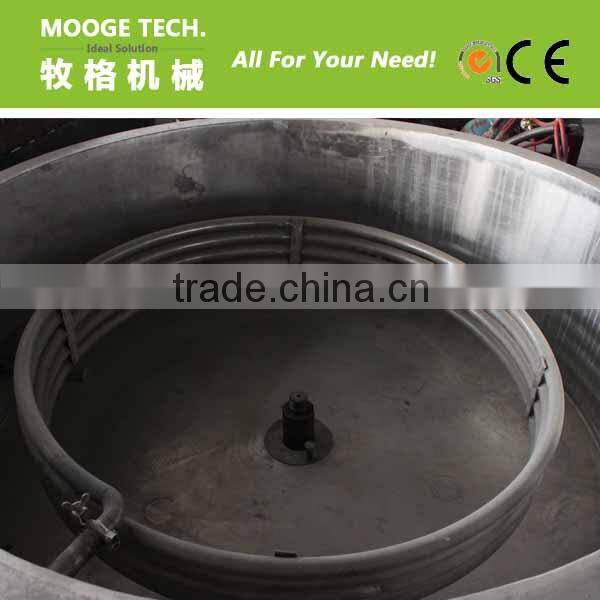

3. Five parts included in this unit: two containers, transmission agent, pneumatic components, cooling system and base structure.
A. The interior is made of stainless steel with polished finish;
B. The cover adopts aluminium alloy castings with inlet orifice and air exit hole, we also can produce it as your requirements;
C. The discharge hole is made of aluminium alloy; the valve is controlled in the force of pneumatic;
D. The paddle is made of stainless steel in the structure of top, center and bottom;
E. Temperature measuring equipment (TME) in the interior wall of the container;
Model |
Total capacity |
Effective capacity |
Rotational speed |
Power |
Unloading mode |
Total |
SRL-Z100/200 |
100/200 |
75/160 |
650/1300/96 |
14/22/7.5 |
Pneumatic |
3T |
SRL-Z200/500 |
200/500 |
150/320 |
460/920/96 |
30/42/11 |
Pneumatic |
3.5T |
SRL-Z300/600 |
300/600 |
200/360 |
475/950/96 |
40/55/11 |
Pneumatic |
3.8T |
SRL-Z500/1000A |
500/1000 |
375/650 |
500/1000/96 |
47/67/15 |
Pneumatic |
5.8T |
SRL-Z500/1600B |
500/1600 |
375/1200 |
500/1000/68 |
55/75/15 |
Pneumatic |
7.3T |
SRL-Z800/1600A |
800/1600 |
600/1024 |
370/740/68 |
60/90/22 |
Pneumatic |
8T |
SRL-Z800/2000A |
800/2000 |
600/1500 |
370/740/68 |
83/110/22 |
Pneumatic |
8.5T |
1- How to Choose proper Products you want?
l Please tell us as detail as what you want?
l What’s your raw material it is?
l What’s the final products you want to produce?
l What capacity you want it performance?
2- How to Control the quality?
l We have technical, engineer team design the sample machinery before enter into market
l Production QC team ensure the machine manufacturing quality
l We will running every machine after finished before shipment
l Optional choose by client running the machinery by material
l Pre-sale: we given client the details technician offer, sign the sales contract etc.
l In-sales: we supply the details layout, installation instruction, technician support for the clients;
l After sales: we arrange engineer to install the machinery and training the workers for client;
l We have 24hours team to solve the after sales problem;
l We have free spare parts with the machine;
l We supply long term spare parts for every customer
l We always up date the new technology to every customer
