low price high quality China railroad steel rail
Standard:
GB11264-89,GB2585-2007,YB/T5055-1993, DIN536, JIS E1103-91/JIS E1101-93, UIC860,etc.
Grade: Q235,55Q,50Mn,U71Mn, U75V, 900A
Rail Height: 55-150mm
Base Width: 63.5mm-220mm
Web Thickness: 5.9mm-80mm
Head Width: 32.1mm-150mm
Length: 6-12m
Place of Origin: Tianjin, China (Mainland)
Brand Name: RGTS
Type: Light Rail, Heavy Rail, Crane rail
Application: Railroad construction, Heavy equipment loading rail, Gantry crane dedicated rail
Weight: 9kg/m-150kg/m
Secondary Or Not: Non-secondary
Bolt Hole Diameter: 24mm
Technique: Hot Rolled
More Service: Punching and other reprocessing
Packaging Details:Export standard packing in mill or as request
Delivery time: Within 15-30 days after receiving original L/C or deposit

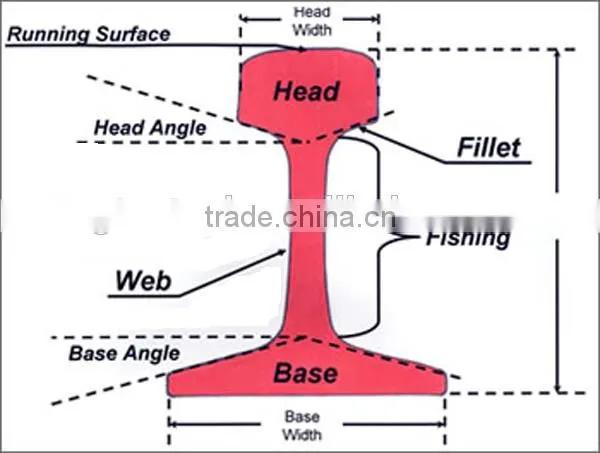

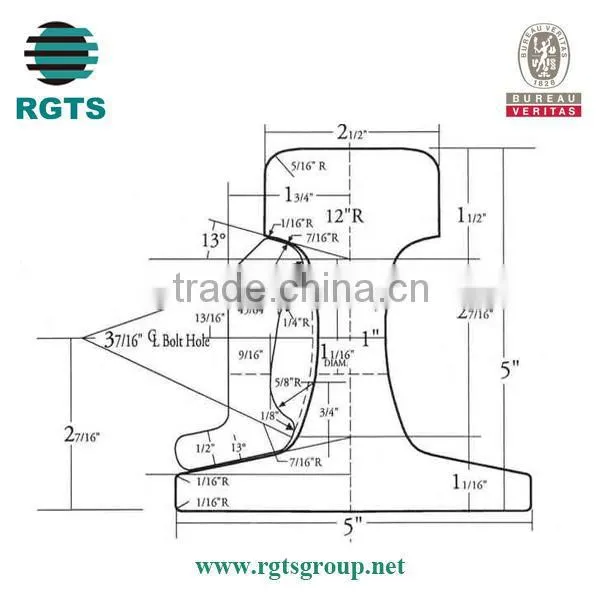

low price high quality China railroad steel rail details
Light Rail GB11264-89 | |||||||
SIZE |
DIMENSION(mm) |
WEIGHT (kg/m) |
MATERIAL |
LENGTH (m) |
|||
HEAD |
HEIGHT |
BASE |
WEB |
||||
GB 9KG |
32.1 |
63.5 |
63.5 |
5.9 |
8.94 |
Q235B/55Q |
6-12 |
GB 12KG |
38.1 |
69.85 |
69.85 |
7.54 |
12.2 |
Q235B/55Q |
6-12 |
GB 15KG |
42.86 |
79.37 |
79.37 |
8.33 |
15.2 |
Q235B/55Q |
6-12 |
GB 22KG |
50.3 |
93.66 |
93.66 |
10.72 |
22.3 |
Q235B/55Q |
6-12 |
GB 30KG |
60.33 |
107.95 |
107.95 |
12.3 |
30.1 |
Q235B/55Q |
6-12 |
Heavy Rail GB2585-2007 | |||||||
SIZE |
DIMENSION(mm) |
WEIGHT (kg/m) |
MATERIAL |
LENGTH (m) |
|||
HEAD |
HEIGHT |
BASE |
WEB |
||||
GB 38KG |
68 |
134 |
114 |
13 |
38.733 |
50Mn/U71Mn |
6-12 |
GB 43KG |
70 |
140 |
114 |
14.5 |
44.653 |
50Mn/U71Mn |
6-12 |
GB 50KG |
70 |
152 |
132 |
15.5 |
51.514 |
50Mn/U71Mn |
6-12 |
Crane Rail YB/T5055-93 | |||||||
SIZE |
DIMENSION(mm) |
WEIGHT (kg/m) |
MATERIAL |
LENGTH (m) |
|||
HEAD |
HEIGHT |
BASE |
WEB |
||||
QU 70 |
70 |
120 |
120 |
28 |
52.8 |
U71Mn/U75V |
6-12 |
QU 80 |
80 |
130 |
130 |
32 |
63.69 |
U71Mn/U75V |
6-12 |
QU 100 |
100 |
150 |
150 |
38 |
88.96 |
U71Mn/U75V |
6-12 |
QU 120 |
120 |
170 |
170 |
44 |
118.1 |
U71Mn/U75V |
6-12 |
DIN536 STANDARD | |||||||
SIZE |
DIMENSION(mm) |
WEIGHT (kg/m) |
MATERIAL |
LENGTH (m) |
|||
HEAD |
HEIGHT |
BASE |
WEB |
||||
A 45 |
45 |
55 |
125 |
24 |
22.1 |
55Q |
6-12 |
A 55 |
55 |
65 |
150 |
31 |
31.8 |
55Q |
6-12 |
A 65 |
65 |
75 |
175 |
38 |
43.1 |
55Q |
6-12 |
A 75 |
75 |
85 |
200 |
45 |
56.2 |
U71Mn/U75V |
6-12 |
A 100 |
100 |
95 |
200 |
60 |
74.3 |
U71Mn/U75V |
6-12 |
A 120 |
120 |
105 |
220 |
72 |
100 |
U71Mn/U75V |
6-12 |
A 150 |
150 |
150 |
220 |
80 |
150.3 |
U71Mn/U75V |
6-12 |
JISE1103/1101 STANDARD | |||||||
SIZE |
DIMENSION(mm) |
WEIGHT (kg/m) |
MATERIAL |
LENGTH (m) |
|||
HEAD |
HEIGHT |
BASE |
WEB |
||||
JIS 15KG |
42.86 |
79.37 |
79.37 |
8.33 |
15.2 |
55Q |
6-12 |
JIS 22KG |
50.8 |
93.66 |
93.66 |
10.72 |
22.3 |
55Q |
6-12 |
JIS 30 A |
60.33 |
107.95 |
107.95 |
12.3 |
30.1 |
55Q |
6-12 |
JIS 37 A |
62.71 |
122.24 |
122.24 |
13.49 |
37.2 |
U71Mn |
6-12 |
JIS 50 N |
65 |
153 |
127 |
15 |
50.4 |
U71Mn |
6-12 |
CR 73 |
100 |
135 |
140 |
32 |
73.3 |
U71Mn |
6-12 |
CR 100 |
120 |
150 |
155 |
39 |
100.2 |
U71Mn |
6-12 |
UIC860 STANDARD | |||||||
SIZE |
DIMENSION(mm) |
WEIGHT (kg/m) |
MATERIAL |
LENGTH (m) |
|||
HEAD |
HEIGHT |
BASE |
WEB |
||||
UIC54 |
70 |
159 |
140 |
16 |
54.43 |
U71Mn/ 900A |
6-12 |
UIC60 |
74.3 |
172 |
150 |
16.5 |
60.21 |
U71Mn/ 900A |
6-12 |

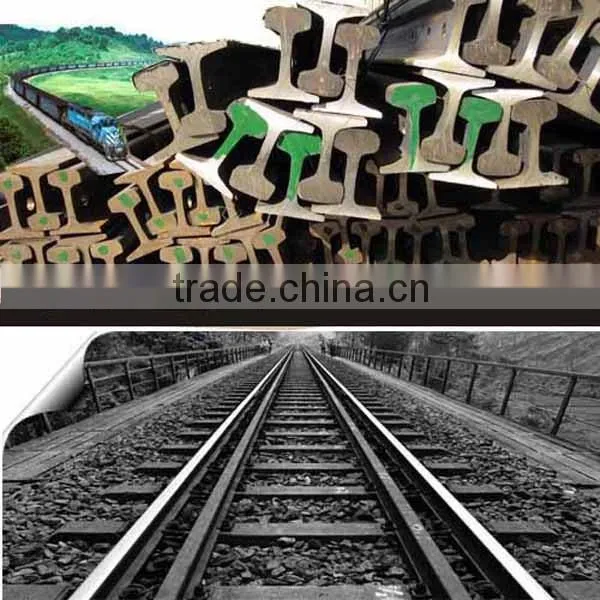

low price high quality China railroad steel rail
low price high quality China railroad steel rail
China railroad steel rail chemical properties

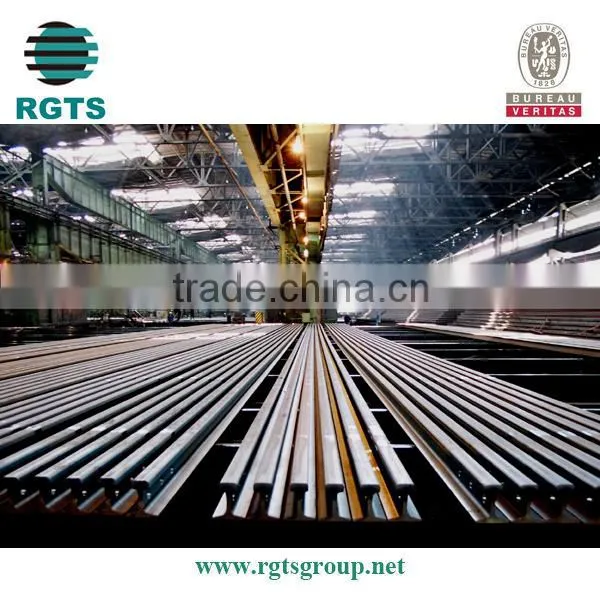

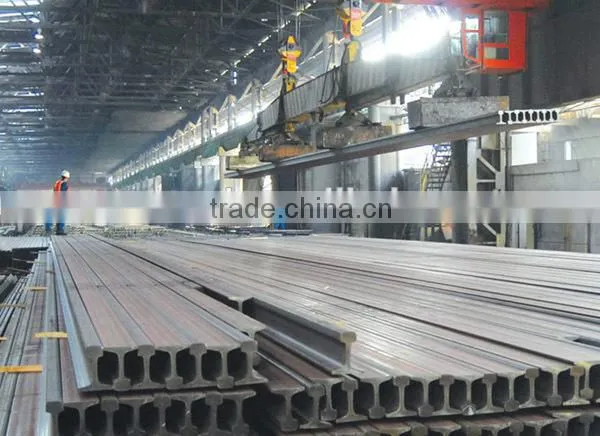

low price high quality China railroad steel rail mill

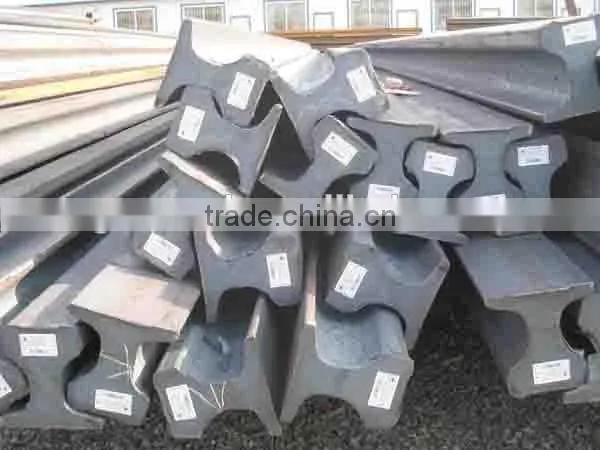

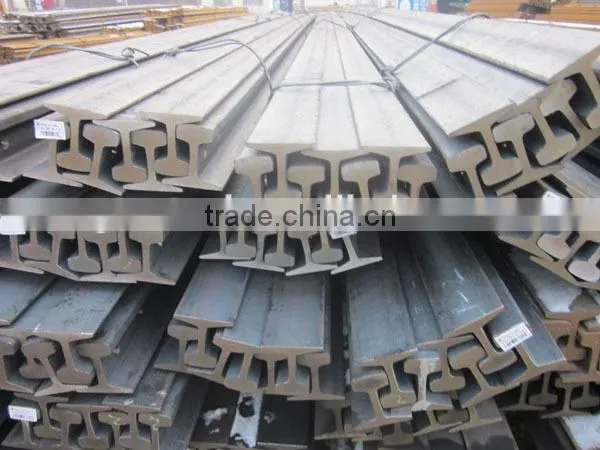

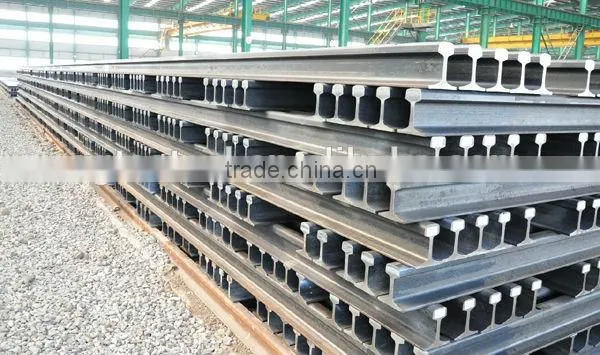

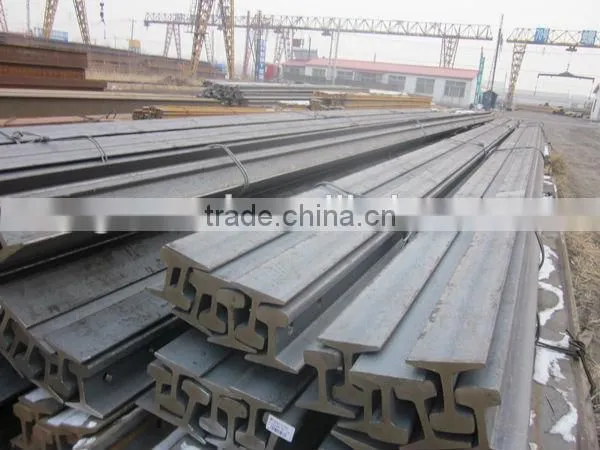

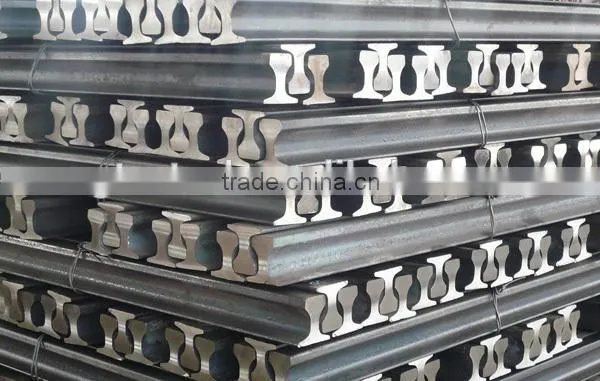

low price high quality China railroad steel rail stock

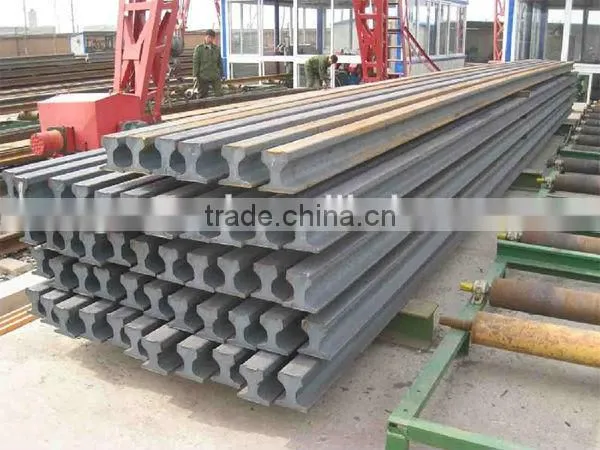

China railroad steel rail packaging & shipping
Pre-sale Service
1. Sample can be offered free fast while courier fee paid by buyer's side.
2. We have full stock, and can deliver within short time. Many styles for you to choose.
3. OEM and ODM order are accepted, any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please contact with us freely by E-mail or Telephone.
our sales market distribution
Ruiguo Tongsheng IMP.&EXP. Co., Ltd. is one of branch of Ruiguo Tongsheng Group.
Our group is engaged in the production and trade of steel rails, hot rolled steel coil, steel wire rod, rebar steel, stainless steel products, copper product, wire mesh, hot dipped galvanized steel coil, sectional steels (C channel, U channel, I beam, H beam, Angle steel), and so on.
We have established business relationships with clients in the Southeast Asia, South
Asia, North America, and many other countries and regions. Our goal is to provide all
our customers with qualified and low-cost steel products.
The reason why you choose us
· Diversification of products
. Professional sales team
· Industry experience over 15 years
· Management Systems-Internal Software
· Shipment of goods -More than 50 countries worldwide
· We have the most convenient transport and prompt delivery
· We offer competitive price with best service
· We have win high reputation based on best quality products
low price high quality China railroad steel rail, low price high quality China railroad steel rail, low price high quality China railroad steel rail,
