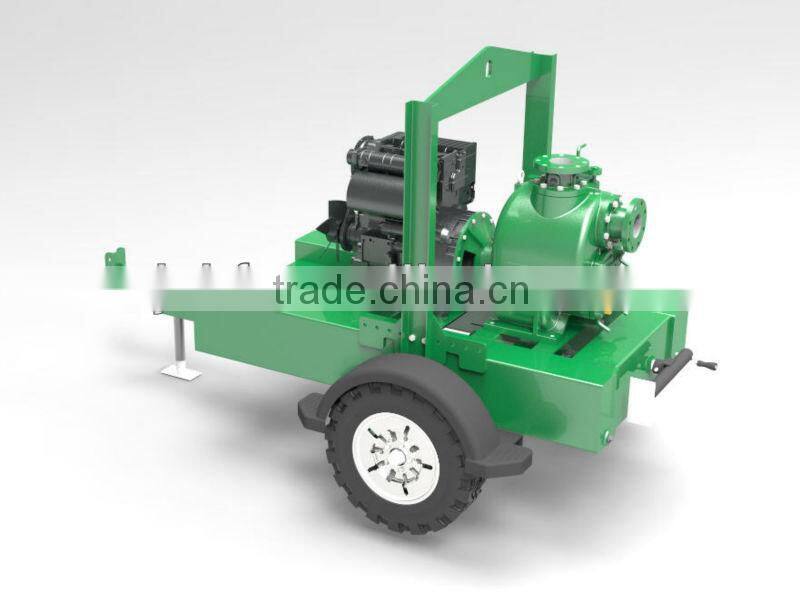

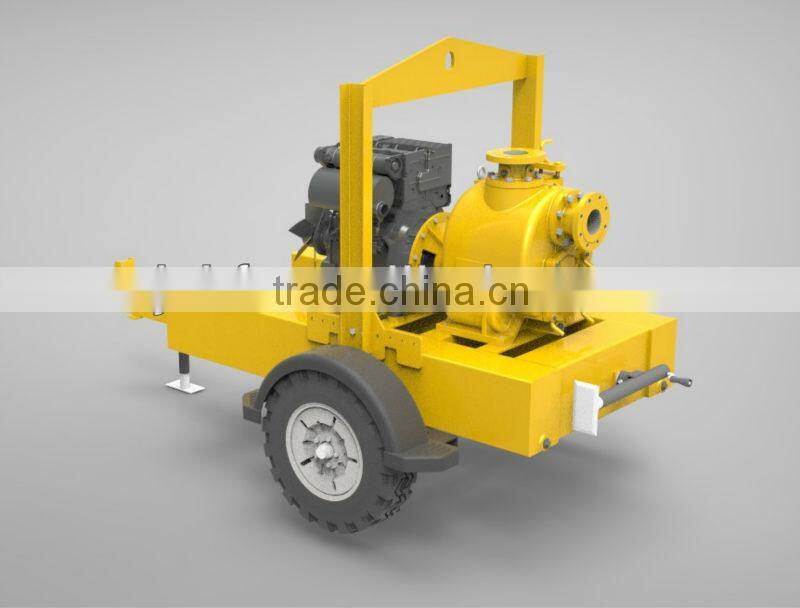

Help CenterTrailer Mounted Electric Self Priming Trash Pump
Related Products
-
Trash Mounted Self Priming Trash Water PumpNegotiableMOQ: 1 Set -
Trash Self Priming PumpNegotiableMOQ: 1 Set
-
Trash Mounted Self Priming Trash PumpNegotiableMOQ: 1 Set
-
Tralier Mounted Self Priming Water PumpNegotiableMOQ: 1 Set
-
Trailer Mounted Sewage Pump,self Priming Sewage Water PumpNegotiableMOQ: 1 Set

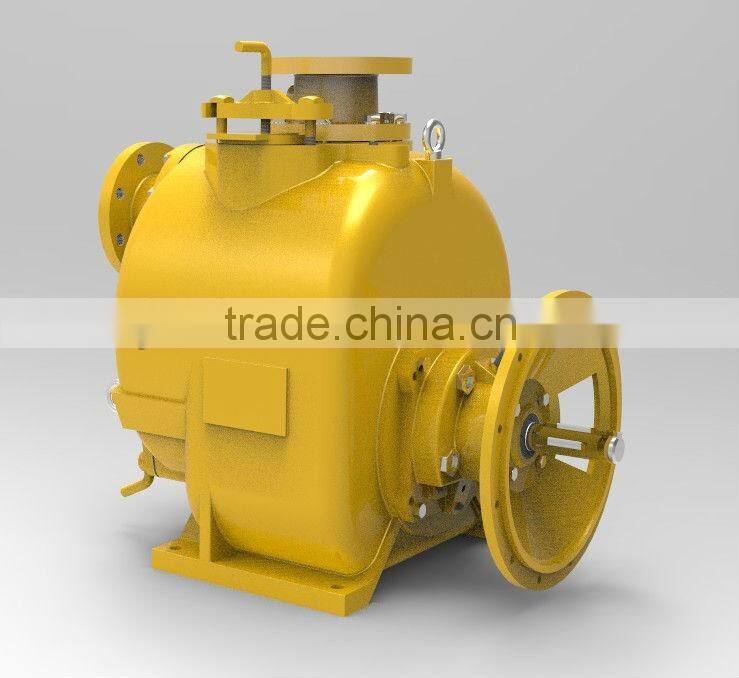

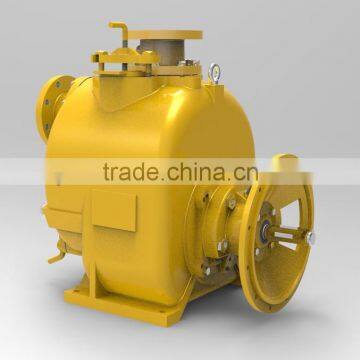

T series trash self priming pump
Specifications
1. Self priming pumps
2. Trash pumps
3. Self priming sewage pumps
4. Fully interchangeable with Gorman Rupp
Advantage:
Originally form USA Patent design
Excellent&reliable performance
Non-clogging design
Excellent self priming function
Dry installed,easy installation and maintainance
The best replacement of QW pumps
Fully interchangeable with Gorman Rupp T& U series
Applications: Municipal,Marine,Industrial sewage water treatment,Agricultural Irrigation
Material Available:
1. Standard cast iron construction
2. Ductile Iron construction
3. 316SS fitted
4. Full 316ss constructions
5. CD4MCU constructions
Engine specification | |||
Engine size |
Displacement |
Type |
Fuel consumption per hour |
Deutz F2L912 26hp@2300rpm(ST-3"pump) |
1.88L |
2 cylinder air cooled,naturally intake |
2.00Gallon(7.424L) |
Deutz F3L912 48hp@2300rpm(ST-4"pump) |
2.828L |
3 cylinder air cooled,naturally intake |
1.95Gallon(7.424L) |
Deutz F4L912 46hp@1500rpm(ST-6"pump) |
3.77L |
4 cylinder air cooled,naturally intake |
1.90Gallon(7.424L) |
Deutz F6L912T 80hp@1500rpm(ST-8"pump) |
5.3655L |
6 cylinder air cooled,turbocharged |
1.90Gallon(7.424L) |
Deutz BF6L913 100hp@1500rpm(ST-10"pump) |
6.128L |
6 cylinder air cooled,turbocharged |
1.90Gallon(7.424L) |
Deutz F3L912 48hp@2300rpm(SU-3"pump) |
2.828L |
3 cylinder air cooled,naturally intake |
1.95Gallon(7.424L) |
Deutz F4L912 61hp@2300rpm(SU-4"pump) |
3.77L |
4 cylinder air cooled,naturally intake |
1.90Gallon(7.424L) |
Deutz BF4L913 88hp@2300rpm(SU-6"pump) |
4.086L |
4 cylinder air cooled,turbocharged |
1.85Gallon(7.424L) |
Pump specification:
T series pump technical data | |
Outlet/inlet Diameter |
2"-12" |
Flow |
MAX.1200M³/hour |
Head |
MAX. 35m |
Media Temperature |
-10°C~+85°C |
System pressure |
MAX. 3.5BAR |
Suction lift |
MAX. 7.6m |
Solids |
MAX. 76.2mm |
Name |
ST-3"(75mm) pump |
ST-4”(100mm) pump |
ST-6”(150mm) pump |
ST-8”(200mm) pump |
ST-10”(200mm) pump |
Head to |
112"(34m) |
115”(35m) |
109”(33m) |
109”(33m) |
129”(39m) |
Flow to |
450GPM (102M³/hour) |
730GPM (165M³/hour) |
1480GPM (335M³/hour) |
2600GPM (600M³/hour) |
3200GPM (725M³/hour) |
solid size |
2.5inch |
3inch |
3inch |
3inch |
3inch |
