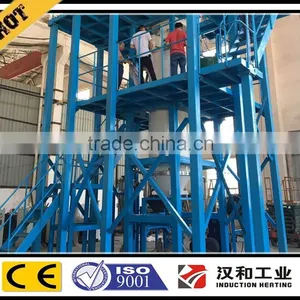

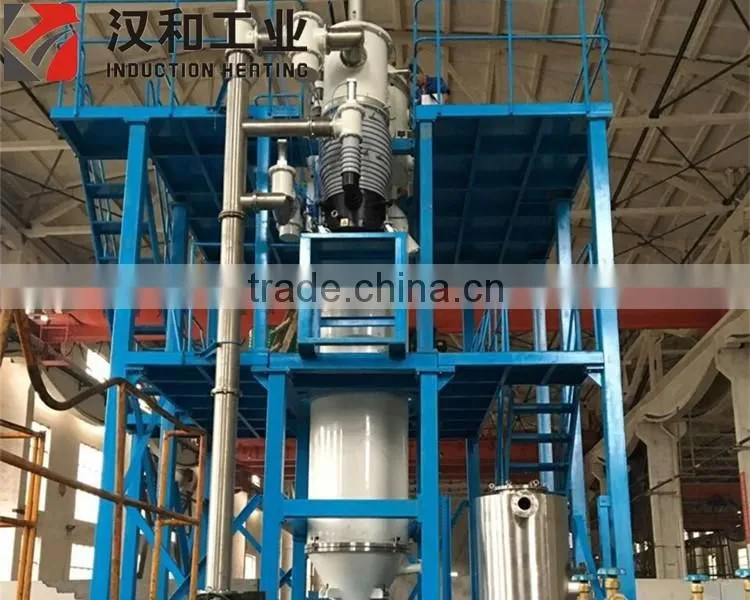

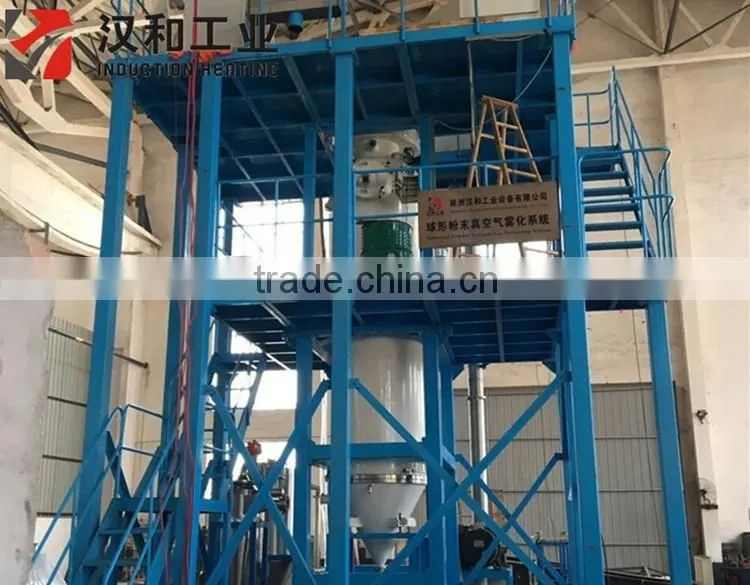

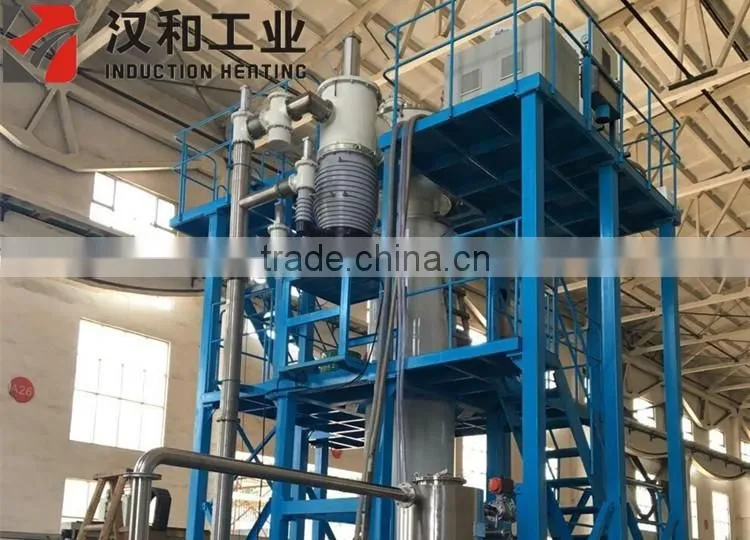

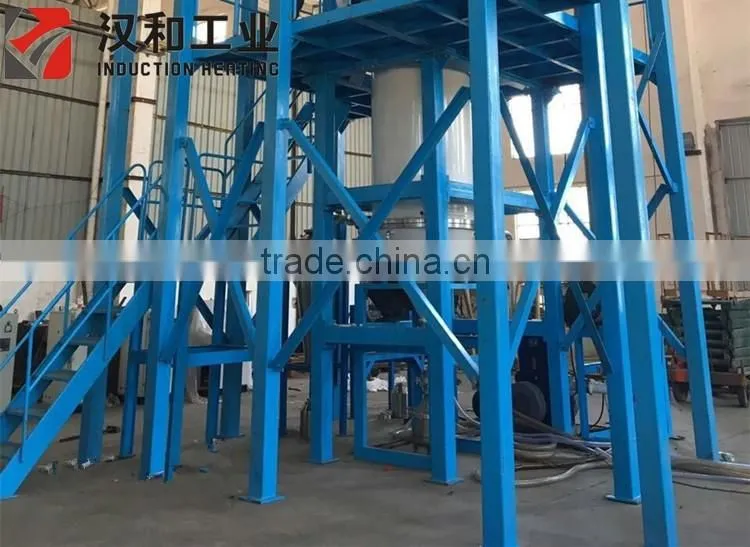

Vacuum technology gas atomization machine for making spherical metallic powders
Applications and theory:
It’s a device which satisfies the formation of spherical metal powder in certain circumstance.
Working principles: metal melting and alloy under the protection of the gas, meltal liquid flows out through the insulation crucible and diversion mouth by high pressure airflow, when it flows through the nozzle,metal liquid atomized into large quantity of small drops, then it solidifies into spherical and semi-spherical particals, through screening and separation,it can be made into metal powder.
Features:
1. Gas atomization way to make metal and alloy powder which most of common equipment can not do.
2. Produce spherical and semi-spherical type powder
3. For the solidification conques the segregation, some special alloy powder can be produced.
4. Adopt suitable process, the powder can reach the certain requirement.
Components:
- Smelting furnace
- Atomizing chamber
- Air-fluxing control cabinet
- Powder collecting cabinet
- Fixed supporting and working platform
- Pipelines connection
- Closed cooling water tower
- Integrated control system
- Operation platform
- IGBT Middle frequency power supply
- Thermal heating system
- High-pressure gas injector
- Vibrating screen
- Cyclone separator
1. Range of Capacity: 25kg, 50kg, 100kg, 200kg
2. Middle Frequency Power: 100KW, 160KW, 250KW
3. Middle Frequency: 2500Hz
4. Vacuum Pressure Rising Rate: 0.05pa/min
5. Holding Furnace Power: 10-25KW
6. Holding Furnace Temperature: 900-1200℃
7. Smelting Furnace Temperature: 1800℃
8. Cooling Tower Pressure:0.3mpa
9. Cooling Water Flow: 8-12T/h
Zhuzhou Hanhe Industrial Equipment CO.,LTD. is located in Zhuzhou, an emerging industrial city in central south of China. It is a high-tech enterprise that research, produces and sales the high- middle-frequency power, the complete set induction heating equipment and the non-sign electric heating equipment. The company has abundant technical force and strong research and development ability. It is equipped with a team made up of experts and doctors, and establishes the close cooperation with many scientific research institution and induction heating equipment companies in Europe.
Currently, we mainly produce middle frequency induction melting furnace, middle frequency induction heating furnace, complete sets of middle-high-frequency quenching equipment, middle frequency bender equipment, middle frequency carbide furnace, vacuum induction melting furnace, vacuum induction sintering furnace, hydrogen sintering furnace, polysilicon directional solidification furnace, bright annealing furnace pipe, steel pipe straight seam welding annealing equipment, compound pot bottom high frequency brazing machine, Conduction of heat heating machine before rub pressure welding for the compound metal pot bottom, round-link chain induction heating machine and so on. We can also accept the design and construction of the non-sign induction heating equipment and other electric heating equipment.
1. How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
2. How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
3. How about the payment terms and delivery time?
Payment terms for small machines: 100% T/T in advance.
The big machines and big amount: 50% deposit 50% before shipment (we will shoot total delivering process for customer's confirmation) and the related papers. You can pay by T/T or other ways.
The small machine delivery time is within 10 days, the bigger one takes about 15-20days, and we will delivery goods on time.
4. Does your goods have ISO9001 ?
Yes, all our goods have ISO. All machines are of high quality.
5. What is the nature of your company: Trade Company or factory?
We are manufacturer with a big factory, warmly welcome to visit our factory and contact us.
