pet bottle pelletizing machine
Description of pet bottle pelletizing machine :
This pet bottle pelletizing machine uses SHJ series parallel twin screw extruder, is suitable for producing PET granules from clean PET flakes.This machine is composed by SHJ parallel twin screw extruder, die, hydraulic screen exchanger, cooling flume, air dryer, cutter, silo, and could also be applied to other material like PET PP PE PA ABS etc.The SHJ series extruders are specially designed for PET bottles, flakes, PVC, Plastic sheets and other crushed materials, with good performance, high output, less power consumption cost per kilogram, and easy operation.
Stuctrure of pet bottle pelletizing machine :
Stage 1 is single screw extruder
Stage 2 is SJ low speed single screw extruder. Two machines are placed vertically
Advantages of pet bottle pelletizing machine :
1. Increasing the operation variables and realizing the process because of two-stage machine.
2. High effective and production capacity.
3. Good at process heat-sensitive material and devolatilization operation, Such as PVC, XLPE.
4. Zero halogen cable, shield material, carbon black etc.
Main parameters of pet bottle pelletizing machine :
| Model | SHJ20 | SHJ30 | SHJ50 | SHJ65 | SHJ72 | SHJ92 |
| Screw diameter(mm) | 21.7 | 30 | 50.5 | 62.4 | 71.2 | 91 |
| Rotate speed(mm) | 600 | 400 | 400/600 | 500/600 | 400/500 | 400/500 |
| Motor power (kw) | 4 | 11 | 11/15 | 55/75 | 90/110 | 220/250 |
| L/D | 32-40 | 28-48 | 28-48 | 28-48 | 28-48 | 28-40 |
| Output(kg) | 2-10 | 5-30 | 40-80 | 100-300 | 300-600 | 600-1000 |
Pelletizing mode of pet bottle pelletizing machine :
1. Water cooling strands pelletizing line
(1) High speed mixer (2) Solids conveyer (3)Main feeder (4) Side feeder (5) Glass fiber (6) Twin screw extruder (7) Water trough (8) Air-knife (9) Pelletizer (10) Product container
2) Air-cooling hot face pelletizing line
(1) Metering feeder (2) Twin screw extruder (3) Air-cooling hot face pelletizer (4) cyclone separating device (5) Air-cooling vibrating sieve
3) Water-ring hot face pelletizing line
(1) High speed mixer (2) Main feeder (3) Side feeder (4) Twin screw extruder (5) Water-ring granulator (6) Centrifugal dewatering machine (7) Vibrating sieve (8) Product container

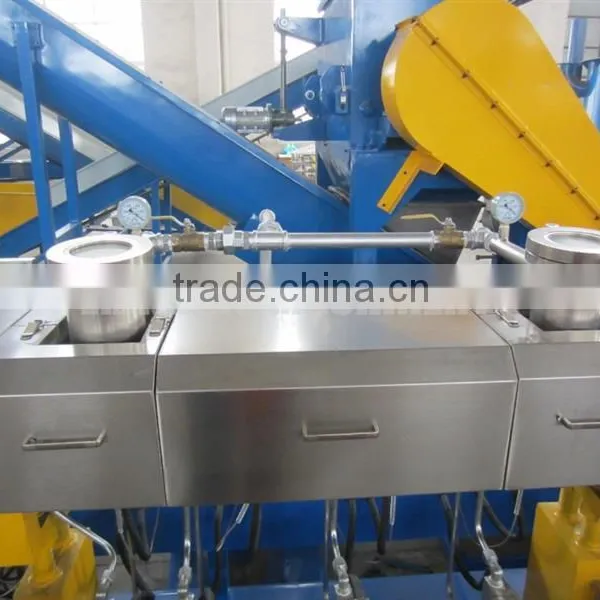

Photos show of pet bottle pelletizing machine :
Loading pictures of pet bottle pelletizing machine :
Payment of pet bottle pelletizing machine :
1. 30% T/T as deposit, and 70% T/T before delivery.
2. 100% irrevocable L/C at sight.
Package of pet bottle pelletizing machine :
1. Film package: we used simple package suit for shipping.
2. Wooden package: If you want to wooden package, you should paid extra cost.
After sales-service of pet bottle pelletizing machine :
1.If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. After One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance.
2.Workers must operate the machines according to the design of the machine. Saiou Machinery will not be responsible for accidents which are caused by improper operation of workers.
If you are interested in this machine,please contact us without hesitate,we will ensure you high quality and low price.Welcome to send your enquiry for more information,we will reply to your enquiry within 12 hours.
