Home > Industrial Equipment & Components > Bearing > Angular Contact Ball Bearing > Factory NSK 5207 5307 Angular Contact Ball Bearing

Factory NSK 5207 5307 Angular Contact Ball Bearing

Factory NSK 5207 5307 Angular Contact Ball Bearing thumbnail-1
Factory NSK 5207 5307 Angular Contact Ball Bearing photo-1
US$ 0.2 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
NSK
Bore Size:
5, 200
Outside Diameter:
10, 200
Contact Supplier Request Quote Chat Now
Shenzhen Yepo Bearing Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NSK
Bore Size 5, 200
Outside Diameter 10, 200
Model Number 5207 5307
Precision Rating P0/P6
Seals Type Open
Number of Row Double Row
Place of Origin Jiangsu, China

Specifications

Factory NSK 5207 5307 angular contact ball bearing
1.Low price & China best quality
2.Large stock
3.Delivery on time

Factory NSK 5207 5307 angular contact ball bearing



Angular contact ball bearings has been designed to meet the increasingly demanding requirements of equipment manufacturers. These bearings have a contact angle so that they can sustain significant axial loads in one direction together with radial loads. Furthermore, since an axial component is generated when a radial load is applied, these bearings are generally used in pairs, triplex sets, quadruplex sets, or multiplex sets.



Characteristics

u High Quality Steel.

u Advanced Technology assured high performance in running

u Low noise. Quiet and smooth operation even at high speed.

u Contact Angle - Offered in 15, 25, 30 and 40 degree angles.

u Cages - Available in a range of Polyamide, steel and brass cage assemblies.



 Application

Angular contact ball bearings are engineered for use in high-speed, high precision applications for:

  • Agriculture
  • Chemical
  • General industry
  • Utilities

Angular contact ball bearings Available Series

Single row angular contact ball bearings:78 XX, 79 XX, 70 XX, 72 XX, 73 XX, 74 XX

Double row angular contact ball bearings: 32**, 33**, 38**, 39**, 30**, 52**, 53**,

Four point contact bearings: QJ series



Brief Introduction

Models number

5207 5307

Brand

NSK

Precision

P0. P6. P4. P5

Quality standard

ISO9001:2000 standard

Service

OEM acceptable

Delivery date

5-7 days for stock, 20-30 days for large

Price terms

FOB, EXW, CIF,CRF

Payment terms

A:100%TT

B: 30% T/T , 70% before delivery

C Western union, Money Gram

D Cash

Phone number

0086-132 6704 0380

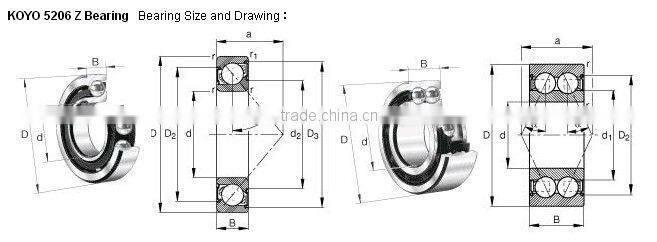

Drawing&Related Models



Factory NSK 5207 5307 angular contact ball bearingFactory NSK 5207 5307 angular contact ball bearing

Bearing  No.

Boundary Dimensions(mm)

Mass(kg)

d

D

B

approx

5201

12

32

15.9

0.06

5202

15

35

15.9

0.07

5302

42

19

0.11

5203

17

40

17.5

0.09

5303

47

22.2

0.14

5204

20

47

20.6

0.12

5304

52

22.2

0.23

5205

25

52

20.6

0.19

5305

62

25.4

0.34

5206

30

62

23.8

0.29

5306

72

30.2

0.51

5207

35

72

27

0.43

5307

80

34.9

0.79

5208

40

80

30.2

0.57

5308

90

36.5

1.05



Pictures Show

Factory NSK 5207 5307 angular contact ball bearing

 Factory NSK 5207 5307 angular contact ball bearing

 Factory NSK 5207 5307 angular contact ball bearing



Packing Show

1, For heavy bearing packages we use wooden case packing

2, For light bearing packages we use industry packing

Factory NSK 5207 5307 angular contact ball bearing



YEPO available series of bearing:

u     Deep groove ball bearing



u     Angular contact bal bearing



u     Spherical roller bearing



u     Tapered roller bearing



u     Pillow block bearing



u     Thrust ball and thrust roller bearing



u     Spherical ball and roller bearing



u     Rod ends bearing



u     Linear bearing and linear guide



u       Needle roller bearing
