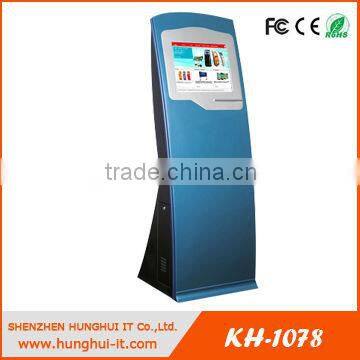

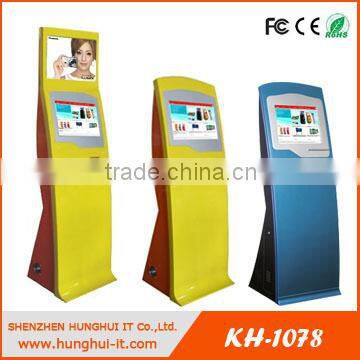

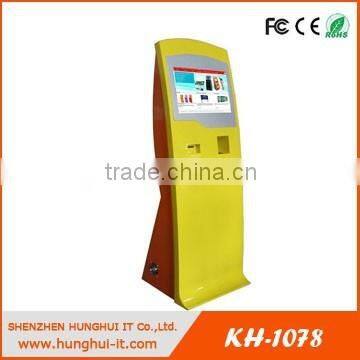

Customizable Electronic Self Service Touch Screen Kiosk Manufacturer / Kiosk Manufacturing
US$ 1,200 - 3,500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hunghui IT
Model Number:
KH-1078
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Self Service Checkin Hotel KioskUS$ 1,000 - 3,000MOQ: 1 Piece -
Free Standing WIFI Interactive Vidoe Kiosk Manufacturer / Kiosk ManufacturingUS$ 900 - 1,500MOQ: 1 Piece
-
Multi - Touch Screen Retail / Ordering / Coin AcceptorUS$ 600 - 1,500MOQ: 1 Set
-
Payment Kiosk All in One/Cash Payment Kiosk/ Bill Payment KioskUS$ 600 - 1,500MOQ: 1 Set
-
Top Up Kiosk MachineUS$ 800 - 1,900MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Hunghui IT
Model Number
KH-1078
Specifications
kiosk manufacturer1. Free SDK and API
2. Customizable design, functions, color, logo
3. Lead time: 20 days
Customizable electronic self service touch screen kiosk manufacturer / kiosk manufacturing
Basic configuration
Basic Configuration
| ||
Central PC (Customizable) | Motherboard | H61 |
| CPU | Dual core G2030, Main frequency: 3.0 GHz, Interface type: LGA 1155. Optional: i3/i5/i7 | |
| RAM | DDRIII 4G / 8G | |
| HDD | 500G, 7200rpm, 3.5" S-ATA | |
| Inter face | RS-232 Ports; LTP; USB Ports, 10/100M Net Port; Integrated Net Card, Sound Card | |
Monitor
| Screen size | 15", 17", 19" 22", 26", etc. |
| Brightness | 300cd/m2 | |
| Contrast | 800:1 | |
| Response time | 5ms | |
| Dot pitch | 0.264mm | |
| Best resolution | 1280x1024 | |
Touch Screen | Screen size | 15", 17", 19" 22", 26", etc. |
| Touch type | SAW, Infrared, Capacitive | |
| Resolution | 4096x4096 | |
| Feature | High transparence, precision and durability | |
Kiosk Enclosure | Material | Cold-rolled steel ST12 SPCC with 1.5mm~2.0mm thickness. |
| Surface finishing | Car painting technology. Steel cabinet sprayed metallic paint, Anti-rust, Anti-acid, Anti-dust. | |
| Color and Logo | Customizable | |
| Features | Easy service access through front or back door. | |
| Accessories | Speakers | Stereo loudspeaker, 8Ω 10W |
| Fans | Internal ventilation system | |
Power Supply | Input voltage | 100~240V/AC |
| Frequency | 50Hz to 60Hz | |
| Operation System | Windows 2000 / Windows XP / Windows 7 / Vista / Windows 8 / Linux | |
| Package | Safe packing with bubble foam, carton box or plywood case | |
| Safety | Anti-vandal safety; | |
| Electric safety: compliant with GB4943 Standard; | ||
| EMC(Electro Magnetic Compatibility): Compliant with GB9254 and GB/T17626 Standard | ||
| Monitoring system: Digital video security monitoring system (optional) | ||
Data safety: EPP is compliant with VISA Security Standard, PCI compliant (optional) ; Card reader is compliant with EMV Level1 Standard; | ||
Pictures
Optional Config.
Optional configuration depends on needs
| ||
printer | Thermal Printer : Width 56mm /78mm /80mm /112mm /210mm; black mark sensor; full/half cutter | |
| Dot Matrix : Width 56mm /78mm /80mm /112mm /210mm; black mark sensor; full/half cutter | ||
| Laser ptiner: A4, monochrome or color printer | ||
| Photo printer: Dye sublimation printer | ||
| Bankbook : 24 pin dual direction. | ||
card reader
| Magnetic Card: ISO7810 ID-1,7811 | |
| RF ISO14443 Type A & B | ||
| Mifare | ||
| IC Card: ISO7816-2, T=0,T=1 CPU Card,SAM Card | ||
Biometric scanner | Fingerprint scanner | |
| Iris scanner | ||
| Face recognition | ||
| Palm vein scanner | ||
Document scanner | A4 document scanner | |
| 1D/2D barcode scanner | ||
| Check scanner | ||
| ID/Passport scanner | ||
| Cash or coin handler | Cash acceptor | Acceptance:> 96%, capacity: 600notes, 900notes, 1000notes, 1200notes, 2200notes. |
| Coin acceptor | Coin diameter: 15~32mm, thickness: 1.5~2.5mm; | |
| Cash dispenser | 1 to 6 cassettes | |
| Coin dispenser | Coin diameter: 18~28.5mm, thickness: 1.65~3.2mm; | |
| Cash recycler | Recycle 80 notes in mixed denominations; Recycle 1 to 4 denominations | |
| Coin recycler | Coin diameter: 15.7~28.5mm, thickness: 1.1~2.5mm; maximum 5 denominations. | |
| Keyboard | EPP | 3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof IP65 |
| Metal keyboard | 64bits metal keyboard with trackball/touchpad, IP 65 | |
| Other perripheral | Advertising screen /Wifi /GPRS /Webcamera /UPS /Card dispenser /3G Module | |
Applications
- Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
- Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
- Non-profit Organizations: Telecommunications, post offices, hospital, schools;
- Public Places: Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
- Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
- Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Our Services
- Fast response: Our Sales representative will respond your inquries within 12 working hours;
- Pre sales technical consultation: Our engineer team has more than 10-year experiences in kiosk industry, we will always offer you suitable solutions according to requirements;
- Software development support: We provide API for all the components to support software development, and we could also provide software developing service if you could provide necessary APIs
- Fast and on time delivery: We guarranty on time delivery, you could receive goods at expected time;
- Warranty: for 12 months, and lifetime maintenance support.
