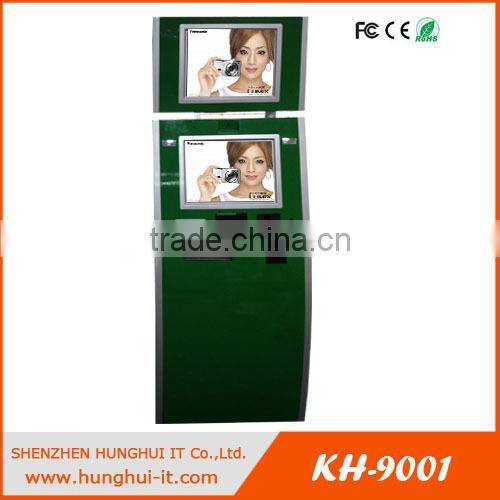

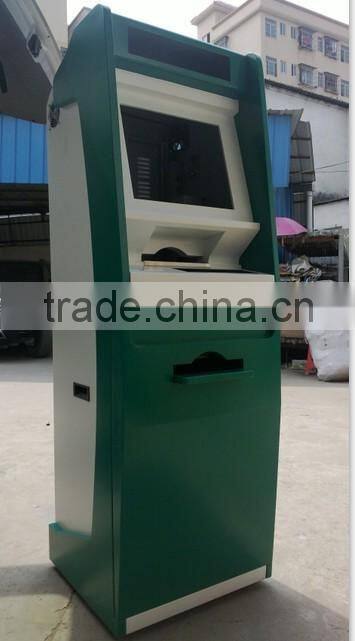

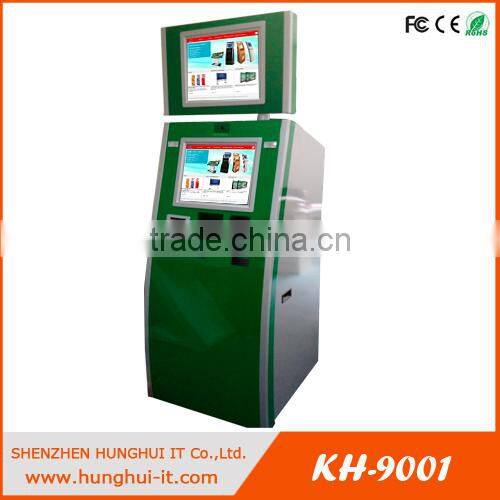

Card Dispenser Machine Ticket Dispenser Machine Cash Dispensing Machine
US$ 600 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HUNGHUI
Model Number:
KH-9001
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
All-in-One Payment ATM Kiosk for Sale/ATM Machine in Stock Quality ChoiceUS$ 600 - 1,000MOQ: 1 Piece -
ATM Kiosk With Cash Dispenser And Receipt Thermal PrinterUS$ 8,860 - 9,999MOQ: 5 Sets
-
Automatic Teller ATM Machine, Deposit Kiosk With Cash DispenserUS$ 3,500 - 9,999MOQ: 5 Sets
-
Bill Payment Machine With Cold Stell ATM CoverUS$ 1,000 - 9,999MOQ: 5 Sets
-
Built in Cash Dispenser and Digital ATM Bank Dedicated DVR Self Service Bank ATM KioskUS$ 1,000 - 9,999MOQ: 5 Sets
Place of Origin
Guangdong, China
Brand Name
HUNGHUI
Model Number
KH-9001
Specifications
Card dispenser machine ticket dispenser machine cash dispensing machine1. touch screen kiosk
2.kiosk with cash dispenser
Card dispenser machine ticket dispenser machine cash dispensing machine
HungHui ATM is developed specifically for Payment use in Bank, Hospital, Railway Station, Metro Station, Parking Lot, Theatre, Shopping Mall, etc.
HungHui self payment kiosk is manufactured in Cold-Roll Steel Sheets using steel plate of 1,5mm to 2.5mm which ensures the stability and rigidity of all structure.
HungHui main payment machines are including touch screen self payment kiosk, touch screen bill payment kiosk, self service payment kiosk, payment terminal atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk , pinpad payment kiosk,etc.
Standard hardware components List of Hunghui self payment kiosk is as following
| Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 |
| RAM | 2GB /4 GB / 8GB |
| HDD | 500G |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card |
| PC Power Supply | HUNTKEY/Great Wall |
| Screen Size | 17 inch/19inch ( optional from 8inch to 65inch) |
| Brightness | 350cd/m2 |
| angle | horizontal 100°above;Vertical 80°above |
| Contrast | 1000:01:00 |
| Backlight tube life | more than 40,000hours |
| Max. resolution | 1280×1024 |
| Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | |
| Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card |
| Power Voltage | DC 24V±5% |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal |
| Keylift~span | 2,000,000 cycles |
| Key force | 2~3N |
| Key trip | >2.5mm |
| Protection level | ip65 |
| Validation Rate | 96% or higher |
| Banknote Insertion | Four-way |
| Escrow | One banknote |
| Capacity | 1000 notes Max |
| Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins |
| Accepting Speed | 2 Coins/Sec |
| Supply Voltage | 10V-16V DC |
| Autocutter | included |
| Technology | Thermal printing |
| Paper width | 80mm |
| Printing speed | 150mm/s |
| Data buffer | 4KB |
| Interface | RS232 ,USB |
| Input voltage | 145-290va |
| Output voltage | 200-255va |
| Max time for supplying a single PC | 3~20minutes (for single PC) |
| AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz |
| AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz |
| Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Windows 7 or Windows XP operation system without license | |
| Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Security Packing method with bubble foam and wooden case | |
Other Optional hardware components List of HungHui payment kiosk machine is as following:
1. Cash dispenser
2. Coin dispenser
3. Advertising screen
4. Barcode scanner
5. Passport reader
6. Web camera
7. A4 Laser printer

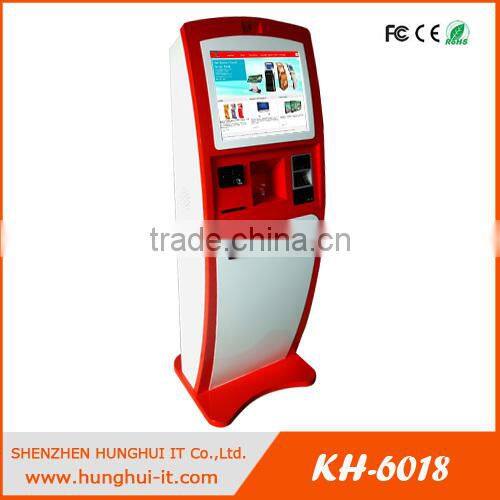

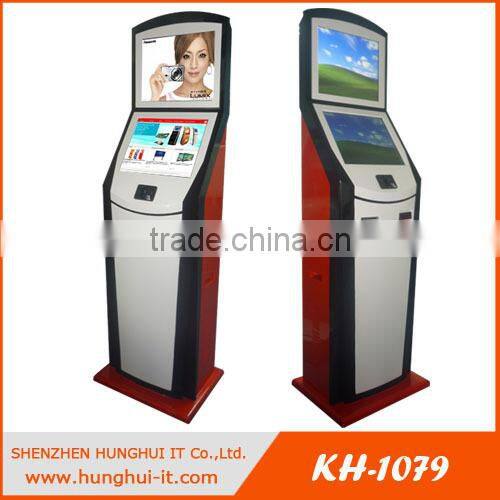

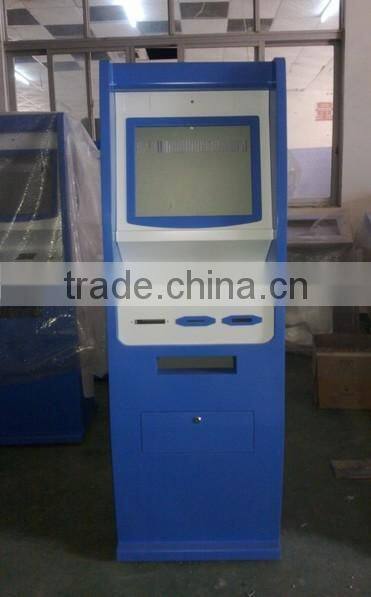

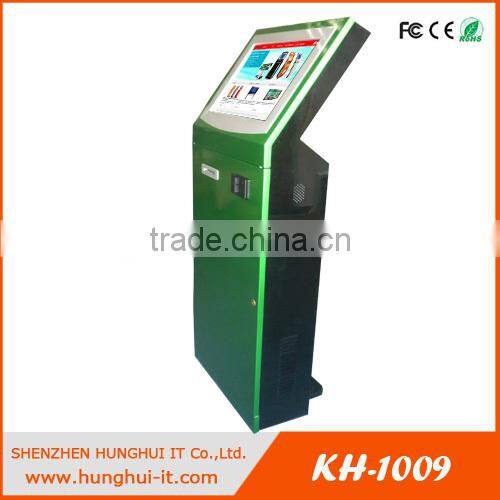

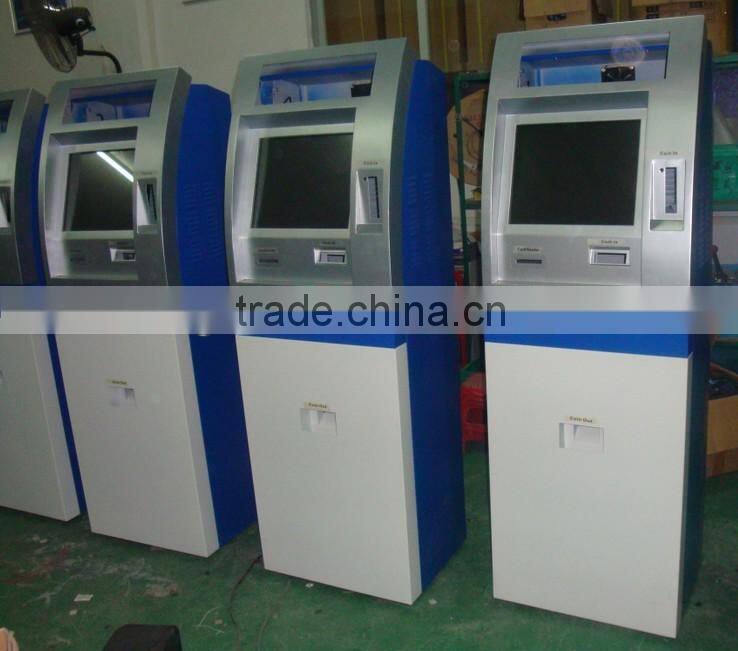

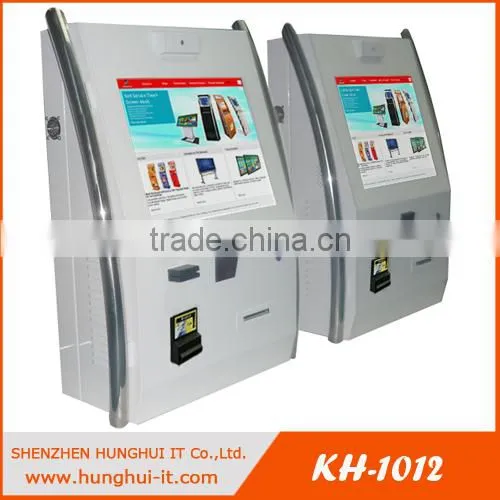

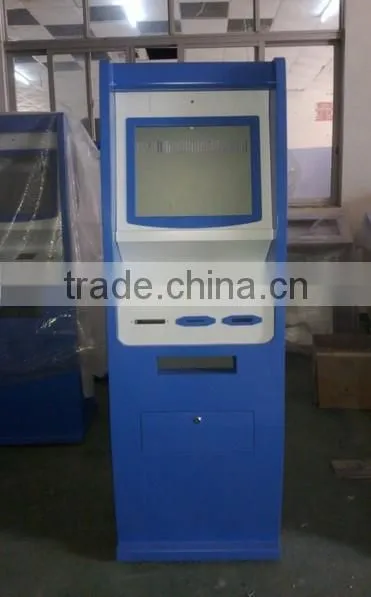

Other kiosk models design
