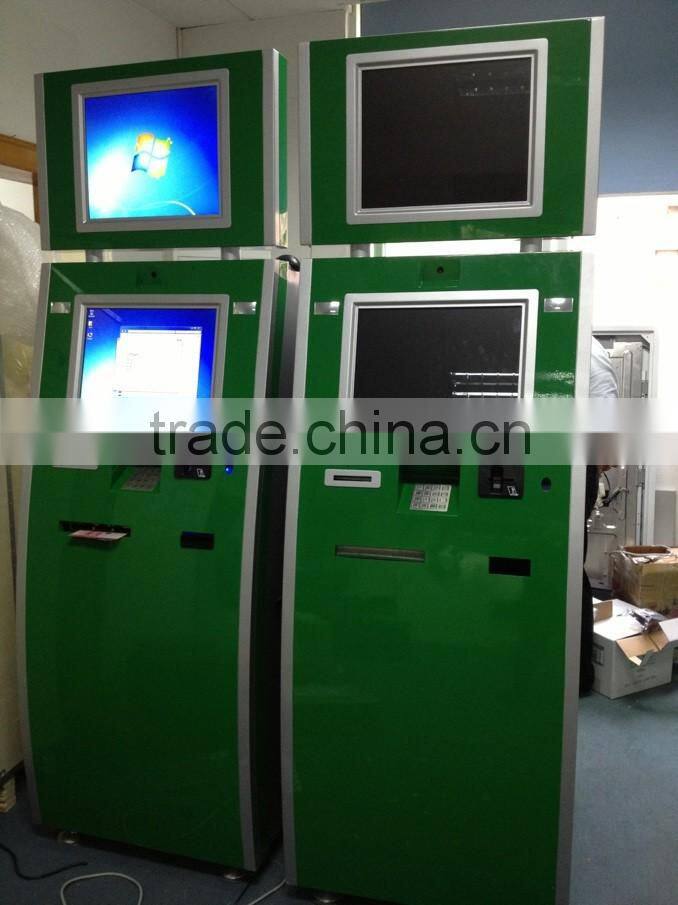

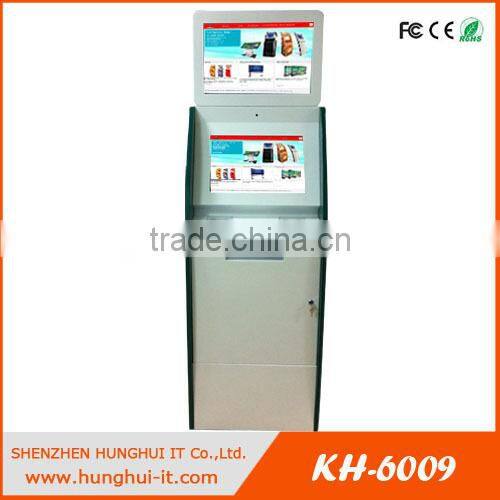

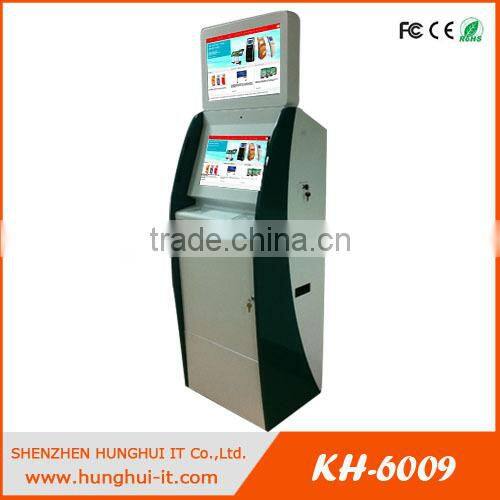

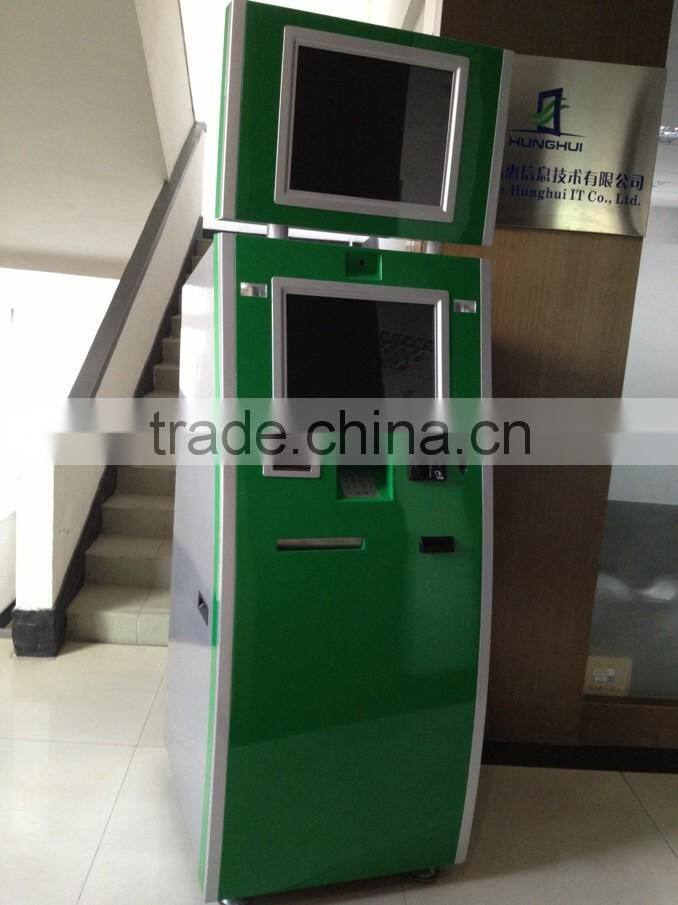

Built in Cash Dispenser and Digital ATM Bank Dedicated DVR Self Service Bank ATM Kiosk
US$ 1,000 - 9,999
MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HUNGHUI
Model Number:
KH-6009
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bitcoin ATM/ Self-service Payment Bitcoin Kiosk/ Terminal Kiowk WIth Cash Dispenser Quality ChoiceUS$ 1,000 - 3,555MOQ: 5 Sets -
Auto Teler Payment Kiosk With Banknote Dispenser And Cash AcceptorUS$ 1,000 - 9,999MOQ: 5 Sets
-
Functional Free Floor Standing Bank Atm MachineUS$ 600 - 3,000MOQ: 1 Piece
-
Foreign Currency Exchange Machie With Multifunctional Acceptance Bills And Coin HoppersUS$ 1,000 - 9,999MOQ: 5 Sets
-
High Quality Cold Rolled Steel Cash Deposit Machine With Cash Acceptor/Card ReaderUS$ 1,000 - 9,999MOQ: 5 Sets
Place of Origin
Guangdong, China
Brand Name
HUNGHUI
Model Number
KH-6009
Specifications
1.Durable steel sheel2.Cash dispenser built-in
3.1 year warranty
4.20 working delivery day
5,Logo welcome
Built in Cash Dispenser and Digital ATM Bank Dedicated DVR Self Service Bank ATM Kiosk
| Product feature |
Advertising kiosk,Searching infroamtion Kiosk,Signage Kiosk,payment terminal kiosk |
| High resolution & high light transmission |
| Easy and Flexible Instalation |
| Customization available,keyboard,logo,color...etc |
| You can choose add a UPS f.ex., it can hold 10-15 minutes after power loss |
| Pc Configutation | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2G/4G/8G | |
| HDD | 500G | |
| Interface | 10*COM(RS-232)Ports;1*LTP;10* USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| Monitor | Screen Size | 17 inch/19inch(other size optional) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280*1024 | |
| Touch Screen | Screen Size | 17/19 inch Diagonal ( optional) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
| Power Voltage | DC 24V±5% | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Encrypted Pinpad | Keylift~span | 2,000,000 cycles |
| Key force | 2~3N | |
| Key trip | >2.5mm | |
| Protection level | ip65 | |
| Cash Acceptor | Validation Rate | 96% or higher |
| Banknote Insertion | Four-way | |
| Escrow | One banknote | |
| Capacity | 1000 notes Max | |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
| Accepting Speed | 2 Coins/Sec | |
| Supply Voltage | 10V-16V DC | |
| Epson Receipt Thermal Printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| Cash Dispenser | Cash Box | 4 cash box can store 4 denominations |
| Reject bin | 1 reject bin | |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va | |
| Max time for supplying a single PC | 3~20minutes (for single PC) | |
| Operation System | Windows xp or windows 7, copy version | |
| Kiosk Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Packing | Security Packing method with bubble foam and wooden case | |
| Other Optional Components | ||
| 1 | Coin Dispenser | |
| 2 | Advertising screen | |
| 3 | Barcode scranner | |
| 4 | Passport Scanner | |
| 5 | Webcam | |
| 6 | A4 printer...etc | |
| Product Application | |
|---|---|
|
Hotel / Supermarket Shopping Mall School / Entertainment Hospital |
Goverment Service Centers Telecom / Library Banks / Real Estate Other Cousltation Places |
| Cabinet Production Technics |
|---|
|
1.2-1.5mm Cold Rolled Steel, Steel cabinet sprayed metallic paint Anti-rust, Anti-acid, Anti-dust |
| Color |
| It’s the car painting process Any color is available. Also you can have your own unique logo on the machine. |
| Our Goods Guarantee |
|
We supply 12months Warranty. If there have any damaged(No Artificial damage) of our goods, then the replace part will be ship to the buyer. |
| Other Design Pictures |
