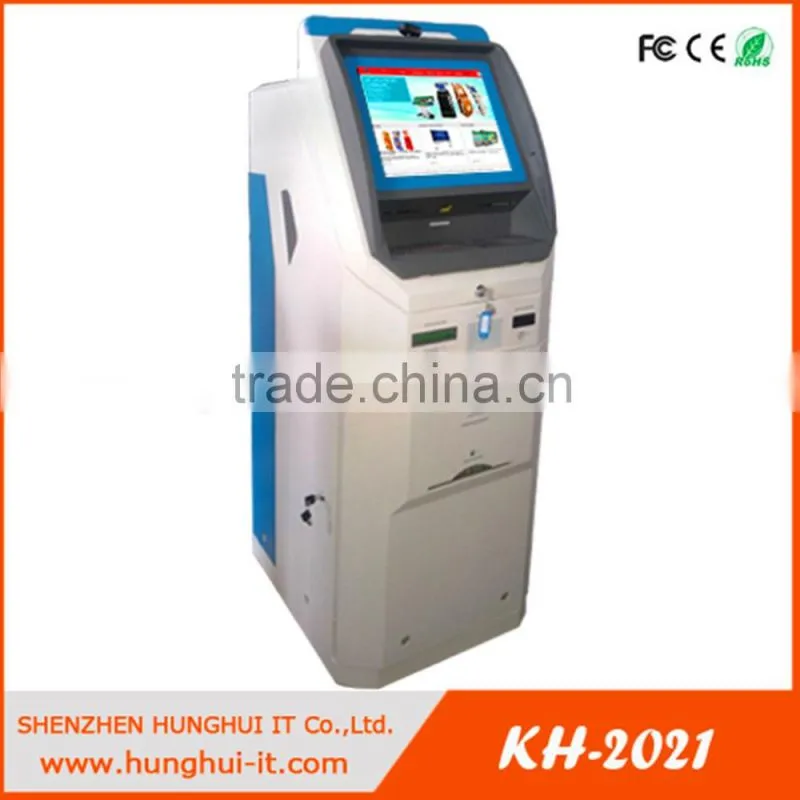

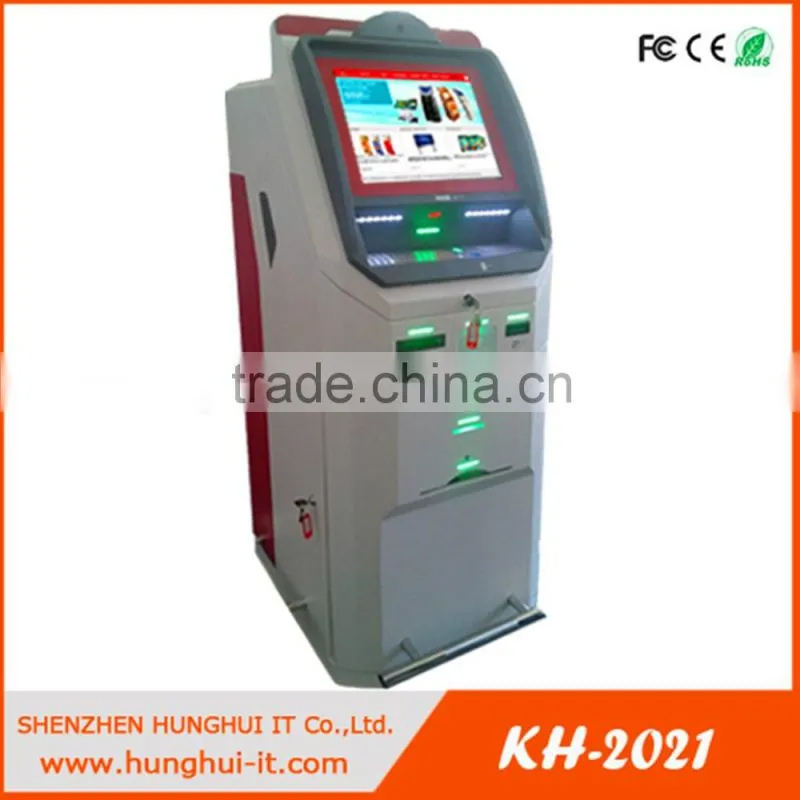

Cash Deposit Taking ATM Machine With Cash Dispenser
Shenzhen Hunghui is an professional kiosk manufacturer. Product range information kiosk, interactive terminal, payment kiosk, advertising digital signage, ATM & VTM. You can choose floor stand kiosk or wall mount kiosk, Single screen kiosk or Dual screen kiosk.
OEM/ODM is acceptable. Just tell us your needs, you will get what you want!
| Pc Configutation | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2G/4G/8G | |
| HDD | 500G | |
| Interface | 10*COM(RS-232)Ports;1*LTP;10* USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| Monitor | Screen Size | 17 inch/19inch(other size optional) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280*1024 | |
| Touch Screen | Screen Size | 17/19 inch Diagonal ( optional) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
| Power Voltage | DC 24V±5% | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Encrypted Pinpad | Feature | 3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof |
| Keylift~span | 2,000,000 cycles | |
| Key force | 2~3N | |
| Key trip | >2.5mm | |
| Protection level | ip65 | |
| Cash Acceptor | Validation Rate | 96% or higher |
| Banknote Insertion | Four-way | |
| Escrow | One banknote | |
| Capacity | 1000 notes Max | |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
| Accepting Speed | 2 Coins/Sec | |
| Supply Voltage | 10V-16V DC | |
| Epson Receipt Thermal Printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| Cash Dispenser | Cash Box | 4 cash box can store 4 denominations |
| Reject bin | 1 reject bin | |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va | |
| Max time for supplying a single PC | 3~20minutes (for single PC) | |
| Operation System | Windows xp or windows 7, copy version | |
| Kiosk Cabinet |
2mmPowder-coated Carbon steel metal for hpuse and 6mm strongbox with pin lockers for security Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. |
|
| Packing | Security Packing method with bubble foam and wooden case | |
| Other Optional Components | ||
| 1 | Coin Dispenser | |
| 2 | Advertising screen | |
| 3 | Barcode scranner | |
| 4 | Passport Scanner | |
| 5 | Webcam | |
| 6 | A4 printer...etc |
|
Packaging Details: bubble foam, carton case and security wooden crates
Delivery Details: 7-15 days for standard cabinet
♦ Fast Response: Our Sales representative will respond your inquires within 12 working hours.
♦ Technical support: Our engineers team has very abundant experiences in self service ticket kiosk industry.
We always provide our clients suitable solution according to their requirements.
♦ Software development support: We provide FREE SDK for all components to support software development.
♦ Fast and on time delivery: We guarantee on time delivery, you could receive goodsat expected time.
♦ Warranty details: 1 year, and lifetime maintenance support.
1) Is sample order accepted?
Yes, sample order is accepted. You can place a trial order to evaluate the product quality and fabrication skill first.
2)What about your After-Sale Service
1.Supply OEM&ODM order,independent QC department,more times testing and checking well
2.100% QC pass checking and testing before shipping.
3.13 months of warranty.
4.CE,RoHs,FCC.
3) What is your advantage?
1.We can provide software and design for you.
2.We can open customers own mold for you.
3.We can offer high quality product & reasionable price for you.
4.We can offer a good after-sale service for you.
5.We have strong and powerful design team.
6.We have quick delivery and small order also welcome.
