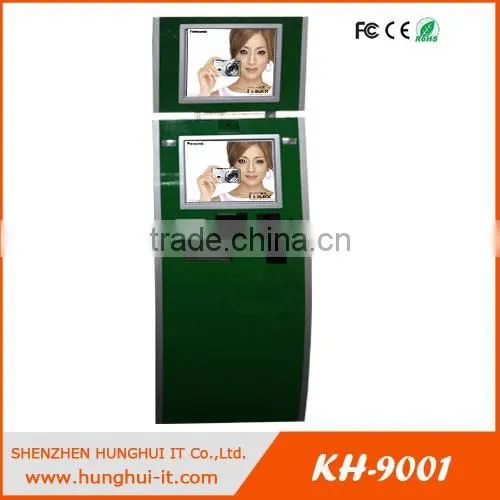

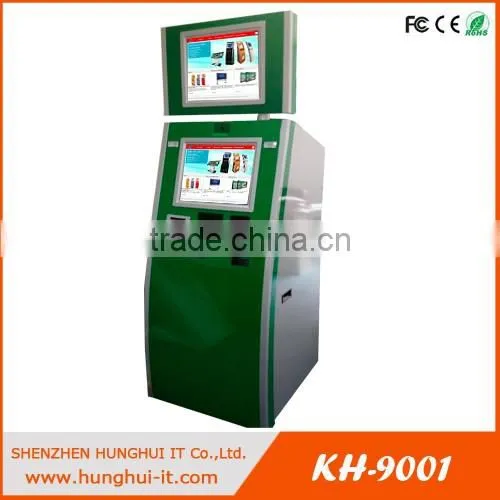

Multi-fuctional payment kiosk Cash Recycling System with bank card reader
Shenzhen Hunghui is an professional kiosk manufacturer. Product range information kiosk, interactive terminal, payment kiosk, advertising digital signage, ATM & VTM. You can choose floor stand kiosk or wall mount kiosk, Single screen kiosk or Dual screen kiosk.
OEM/ODM is acceptable. Just tell us your needs, you will get what you want!
| Pc Configutation | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2G/4G/8G | |
| HDD | 500G | |
| Interface | 10*COM(RS-232)Ports;1*LTP;10* USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| Monitor | Screen Size | 17 inch/19inch(other size optional) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280*1024 | |
| Touch Screen | Screen Size | 17/19 inch Diagonal ( optional) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
| Power Voltage | DC 24V±5% | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Encrypted Pinpad | Feature | 3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof |
| Keylift~span | 2,000,000 cycles | |
| Key force | 2~3N | |
| Key trip | >2.5mm | |
| Protection level | ip65 | |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
| Accepting Speed | 2 Coins/Sec | |
| Supply Voltage | 10V-16V DC | |
| Epson Receipt Thermal Printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| Cash Dispenser | Cash Box | 4 cash box can store 4 denominations |
| Reject bin | 1 reject bin | |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va | |
| Max time for supplying a single PC | 3~20minutes (for single PC) | |
| Operation System | Windows xp or windows 7, copy version | |
| Kiosk Cabinet |
2mmPowder-coated Carbon steel metal for hpuse and 6mm strongbox with pin lockers for security Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. |
|
| Packing | Security Packing method with bubble foam and wooden case | |
| Other Optional Components | ||
| 1 | Coin Dispenser | |
| 2 | Advertising screen | |
| 3 | Barcode scranner | |
| 4 | Passport Scanner | |
| 5 | Webcam | |
| 6 | A4 printer...etc |
|
Highlights:
Features of Automat Teller Machine/ Cash Recycling System/Transfer money machine
1. self service kiosk for bank
2. kiosk manufacturer
3. Card reader with payment
4. Self-help service Device
5: One year warranty
6. Elegant design, easy to move and install.
7. Touch screen technology, easy operation friendly interface.
8. Industry PC host, sensitive response, fast processing speed.
With high performance display monitor, shapely design and powerful PC system, It is widely used in many fields, including government, financial organization, transportation industry etc.
FAQ:
1) Q:What is the minimum order?
A: Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size .
2) Q:What payment methods your company accept?
A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
3) Q:How long is the warranty time for your products?
A:Our officially promised warranty time is one whole year after delivery at best.
4) Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company HungHui perfectly support customized logo service. But, we also hope you know that it's an extra service,so a little bit extra service fee is needed.
PE foam, Carton Case & Wooden Crate, Lead time: About 3-20 working days after order and drawing confirmed.
Please DON'T HESITATE to contact Jackie for any information,welcome~
>> E-mail: (at)
>>Skype: 156362602(at)
>>WhatsApp:+86 13965028725
>>Wechat:Jackie-Ivanka
