Specifications
Thread Trimmer Machine:1.ISO9001:2008;CE;UKAS Certificate
2.Product patent in China
3.Automatic trimming
4.For knit cloths
Setup a Trimming and Inspection line. Complete Trimming, loose thread removal and first Inspection in one stage with undisputable Worker Accountability. Other Advantages are listed below:
Advantages of thread trimming by our machine
-Totally eliminates alteration, specially in flat lock and over lock seams
-Simple to use equipment, continue to deploy unskilled operators
-Trim quality is independent of worker skill
-Eliminate cut rejection due to fabric cuts, re-working or part changing
Loose threads are removed and collected in a bin (waste collection bucket)
-Eliminate loose thread removal operation
-Get floors free of loose threads in finishing and packing work area
Increase productivity at other garment processing stages
-Eliminate the need of trimming at pressing, finishing and packing stages
-Increase operator efficiency at pressing, finishing and packing stages
-Stops alteration, part changing and reworking
-Eliminate loose thread removal operation
Cut production costs
-Make savings in materials, labor and time by eliminating loose thread removal operation
-Reduce labor at finishing and packing by eliminating the need of thread trimming at these operations
-Make savings in materials & labor used in part changing, alterations and loose thread removal
-Eliminate Garment Cut rejection
Cleaner floors and work area
-Loose threads are the root cause of plant Un-Cleanliness and are created by hand thread-trimming
-Thread-Trimming by machine does not create loose threads
-Cleaner work area translates into a better finished garments

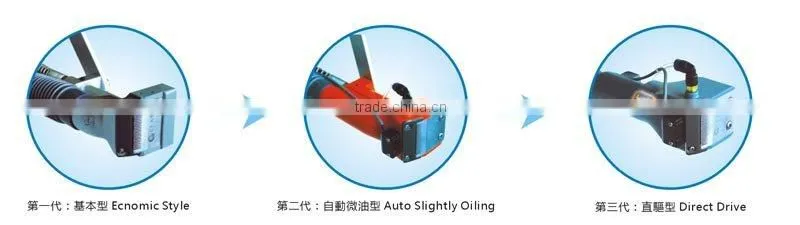

Technology development process of GRAND Thread Trimmer Machine:

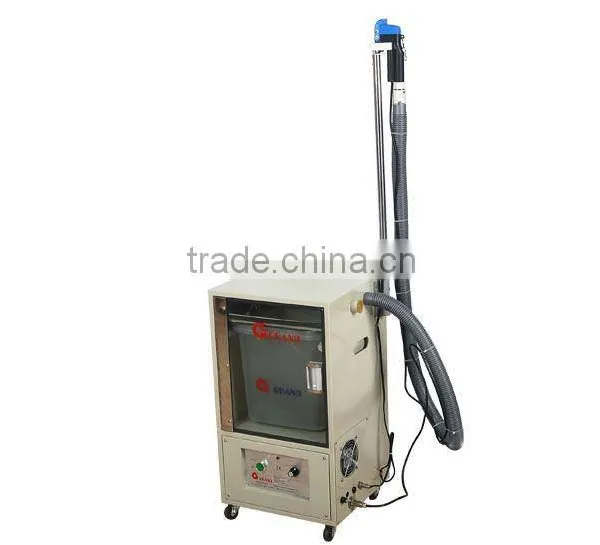

Product Details:
Name: |
Brushless DC Portable Thread Trimmer Machine |
||||||
Model: |
GT261-12 |
||||||
Application: |
This type of machine can be used on any jeams, sportswear, embroidery Cloth, hand bag, beddings and other things, very easy to move, brought the machine to which need trimmed, and suit for all knds of garment, embroidery, hand bag and bedding factories. | ||||||
Merit: |
1.Use Brushless clipper and suction motor, completely change the traditional flexible shaft transmission system, the mechanical transmission efficiency can be improved greatly and non-maintenance. |
||||||
Technical Parameter: |
Voltage |
110V/220V |
|||||
Power |
180W-430W |
||||||
Frequency |
50HZ |
||||||
Revolution |
400-5000RPMHZ |
||||||
Peference: |
Material |
SilkWool |
Knit Material |
Denimjeans |
|||
Clipper blades |
342/Blunt(Option) |
277/Fine(Standard) |
279/Coarse(Option) |
||||
Motor control |
3-4 |
5-7 |
6-9 |
||||
Manual Operation VS Grand Thread Trimmer Operation Report | |||||||
Zhongshan Shaxi Computerize Embroidery Garment Factory |
Warm Underwear |
Manual Operation 3'20~355/pc |
Grand Thread Trimmer Operation 115~140/pc |
||||
Dongguan Houjie Garment Factory |
Circle Collar Long Sleeves T-shirt |
Manual Operation 40~50pcs/hr |
Grand Thread Trimmer Operation 100~110pcs/hr |
||||
Vietnam Garment Factory |
Circle Collar Long Sleeves T-shirt |
Manual Operation 50~60pcs/hr |
Grand Thread Trimmer Operation 80~120pcs/hr |
||||
Dongguan Chashan Grament Factory |
Long Sleeves T-shirt With Slide Fastener And Pocket |
Manual Operation 12~20pcs/hr |
Grand Thread Trimmer Operation 30~35pcs/hr |
||||
Dongguan Chashan Garment Factory |
Jeans |
Manual Operation 20~30pcs/hr |
Grand Thread Trimmer Operation 60~80pcs/hr |
||||
Factory Case:
