3 Ways Pneumatic Suction Chain Cutter Device With Over-lock Machine (with YAMATO)

3 Ways Pneumatic Suction Chain Cutter Device With Over-lock Machine (with YAMATO) thumbnail-1
3 Ways Pneumatic Suction Chain Cutter Device With Over-lock Machine (with YAMATO) thumbnail-2
3 Ways Pneumatic Suction Chain Cutter Device With Over-lock Machine (with YAMATO) thumbnail-3
3 Ways Pneumatic Suction Chain Cutter Device With Over-lock Machine (with YAMATO) photo-1
3 Ways Pneumatic Suction Chain Cutter Device With Over-lock Machine (with YAMATO) photo-2
3 Ways Pneumatic Suction Chain Cutter Device With Over-lock Machine (with YAMATO) photo-3
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Semi-Automatic
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Grand Precision Industrial Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
zhongshan/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Semi-Automatic
Place of Origin Guangdong, China
Brand Name GRAND
Model Number CA112-1-P-F-SC( yamato)
Certification ISO9001:2008;CE;UKAS Certificate
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

ISO9001:2008;CE;UKAS Certificate
1.low Noise,
2.Easy to use,
3.Latest Type,
4.Convenient,

Advantages of sewing machine installing chain cutter dust suction device?
1, work site clean
2, equipment clean
3, does not require any operational requirements, novices can be quickly reached the level of skilled
4, save sissors threads workers
5, to improve the production efficiency 20%

GRAND brand Chain cutter dust suction device works: air compressor pressure generated by the vacuum generator after amplification (or small vacuum motor) produces powerful suction, the former Qiebu inhalation trash, after priming package after the completion of the sewing inhalation internal sutures knife, aim to achieve by trimming blade reciprocates.
Effect: provincial lines, job site clean, equipment cleaning, save costs and improve productivity.
Application: Suitable for all brands of sewing sewing machine supporting the use of the installation.

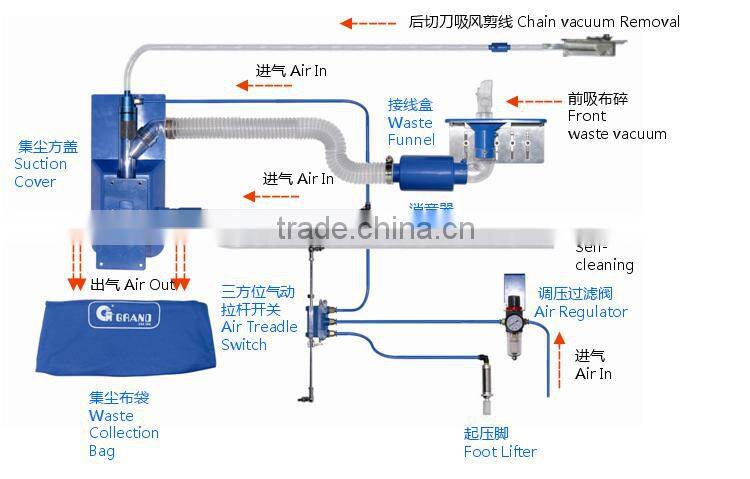

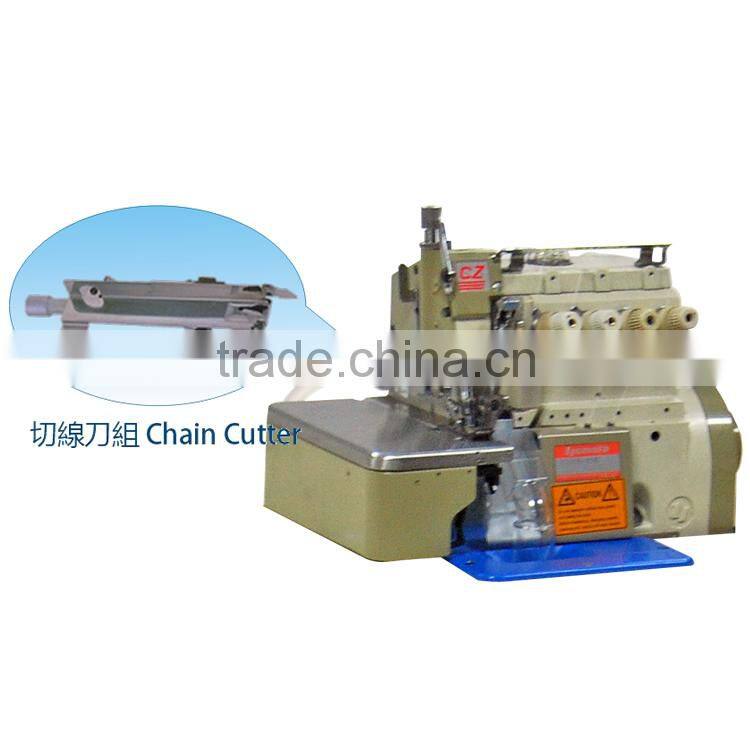

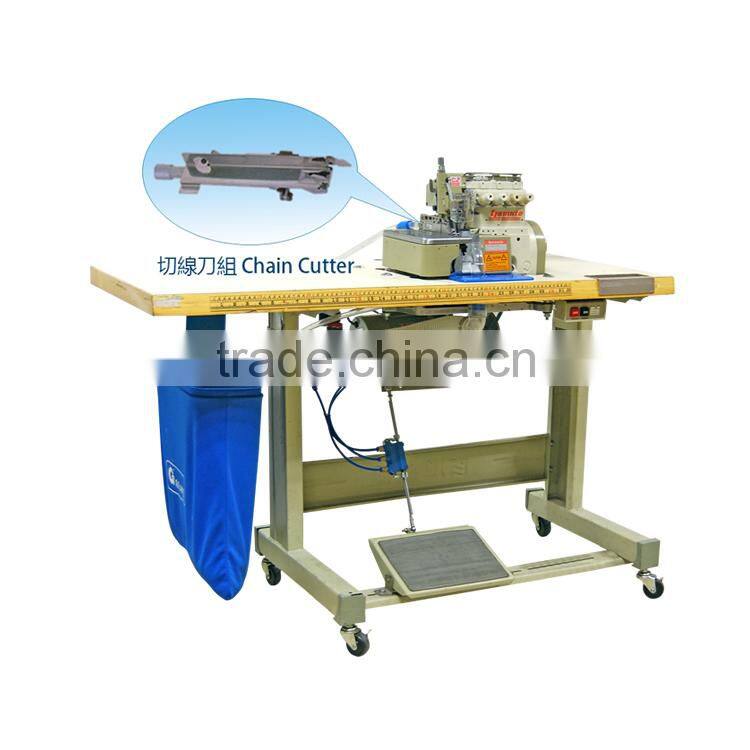

YAMATO CZ over-lock machine Configure & installation diagram :

 3 Ways Pneumatic Suction Chain Cutter Device With over-lock Machine (with YAMATO)3 Ways Pneumatic Suction Chain Cutter Device With over-lock Machine (with YAMATO)

Pneumatic suction dust collector kind Legend:

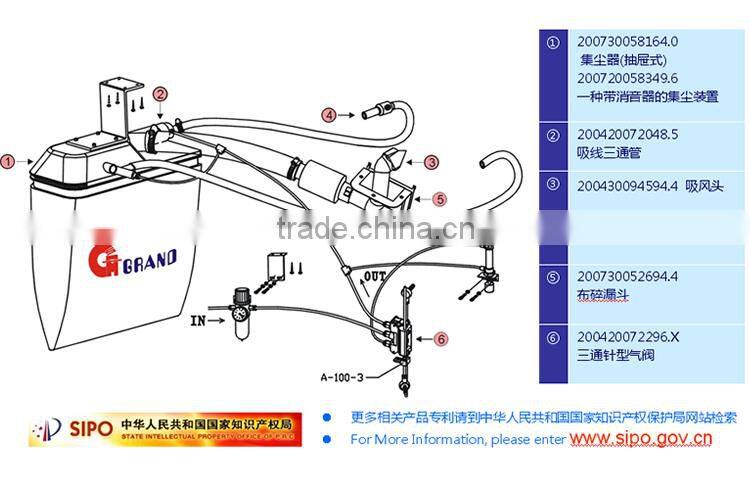

Suction device product patent description:

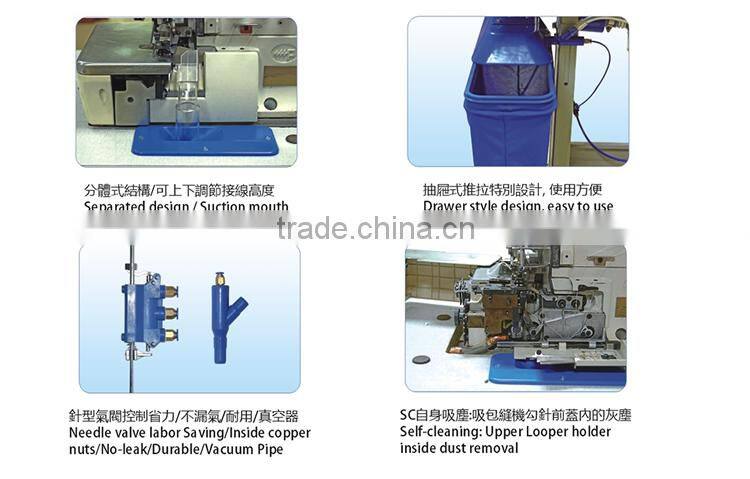

Description of Key Components:

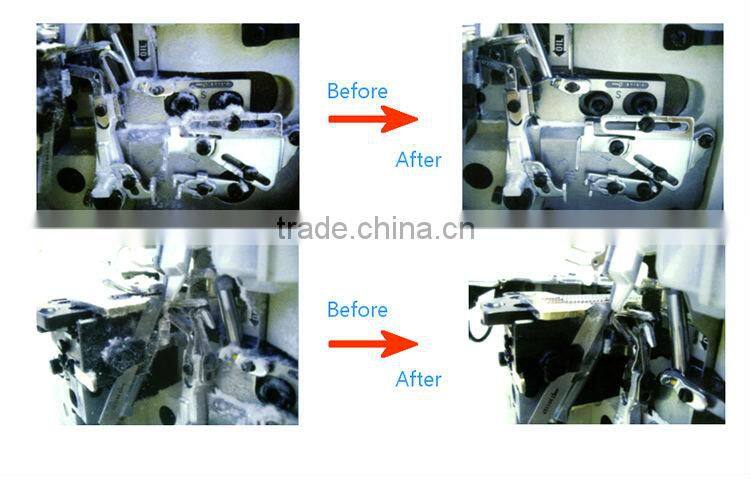

SC Self-cleaning application effect:

 3 Ways Pneumatic Suction Chain Cutter Device With over-lock Machine (with YAMATO)

Name:

3 Ways Pneumatic Suction Chain Cutter Device With over-lock Machine
(with YAMATO over-lock machine as an example:front waste + chain vacuum removal + foot lifter + Self-cleaning)

Model:GA112-1-P-F-SC- YAMATO
Derived Model:
GA111-1 1 way (front waste or chain vacuum removal)
GA111A-1 1 way front waste
GA112-1 2 ways (front waste + chain vacuum removal)
GA112-1-P 3 ways (front waste + chain vacuum removal + foot lifter)
Description:This series of products applies to thread-cutting and suction for overlock sewing machine in Garment manufacturing company. The device should be used with a central gas distribution (or mini air compressor). It can be custom made into three model. 1 way (front waste or chain vacuum removal, you can choose one of them), 2 ways (front waste plus chain vacuum removal) , 3 ways (front waste plus chain vacuum removal plus foot lifter). This device is primarily driven by pneumatic components. Air source comes through the valve,then pushes air component working well. Thread and scraps of cloth are sucked by this device. When you press the foot lifter, valve automatically reset, device will be power off due to short of air source. This small size device has effective thread-cutting and suction function, which is easy to operate and can keep workshop clean.
Feature:1.Venturi operates when treadle pressed;
2. PL controller operates when treadle heeled;
3. Can be used with any kind of over-lock or inter-lock machine;
4.Air regulator assembly is optional;
5.Self-cleaning is optional(upper looper dust removal)



Scution Device Order Guide:GA 11 2 -2 - P - D - F - SCGE 10 2 -2 - BL
GA/GEGA means Air Action
GE means Electirc Action		1/2/41 means fabric suction bag
2 means round plastic bucket
4 means iron box
10/20/30/11/21/3110 Means Round Style Suction Cover for Overlock M/C
20 Means Round Style Suction Cover for Flatlock M/C
20 Means Round Style Suction Cover for Feed Off Arm M/C
11 Means Square Drawer Suction Cover for Overlock M/C
21 Means Square Drawer Suction Cover for Flatlock M/C
31 Means Square Drawer Suction Cover for Feed Off Arm M/C		S/S2S means single solenoid valve
S2 means doubel solenoid valves
PP means cylinder(foot lifter)
DD means Full-submergence bracket
FF means air regulator(Filter)
SCSC means upper looper dust removal(self-cleaning)
1/1A/21 Means 1 way chain removal only
1A Means 1 way waste vacuum only
2 Means 2 ways chain removal+waste vacuum		BL/HBBL means Brushless Motor Scution
HB means Suction Brush Motor

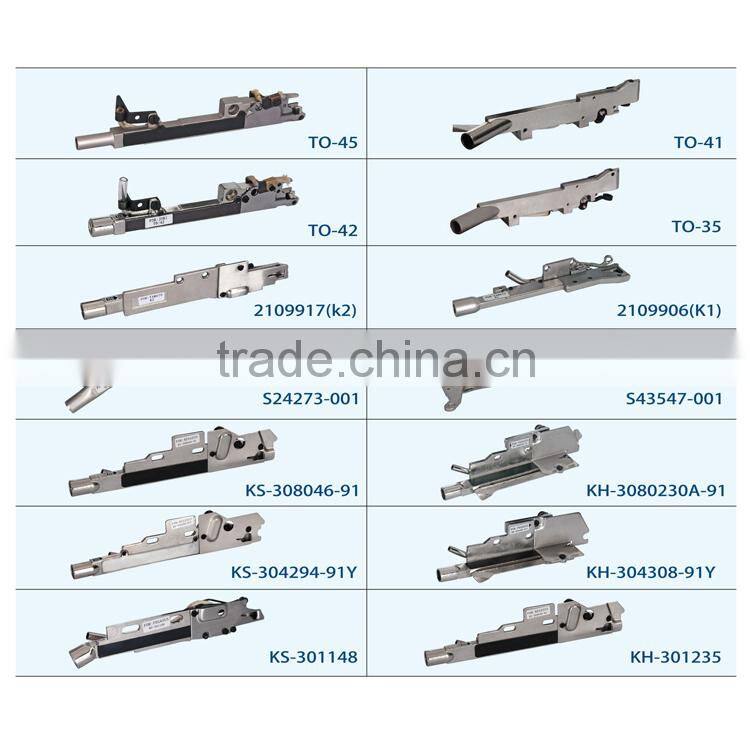

Chain Cutter Optional:


MACHINE BRANDCHAIN CUTTER MODEMACHINE MODEL
JUKITO-45 TO-42 (Side)MO-2514, 3314 3714, 3914, 6714, 6914
TO-35 TO-41 (Flat)MO-2516, 3316 3716, 3916, 6716, 6916
YAMOTO2109917(K2) (Side)AZ-8003, AZ-8020, CZ-6003, CZ-6125
2109906(K1) (Flat)AZ-8500, AZ-8600, CZ6520, CZ6500
BROTHERS24273-001 (Side)N11, N21, V61
S43547-001 (Flat)N31, V51
PEGASUSKS-308046-91 KS-30429A-91Y (Side)EX5214, MX5214 M752, M852
KH-308020A-91 KH-304308-91Y (Flat)EX3216, MX3216 M732, M832
SIRUBAKS-301148 KS-308046-91 (Side)737, 747F, 747D, E52 988-504, 747K
KH-301235 KH-308020A (Flat)757F, 757D, 767F, E32 988-516, 757K
KINGTEXSS023 KS-308046-91 (Side)SH7004 UH9004
SS035 KH-308020A (Flat)SH7005 UH9005



Other cutter model not listed, please contact with the company engineers!

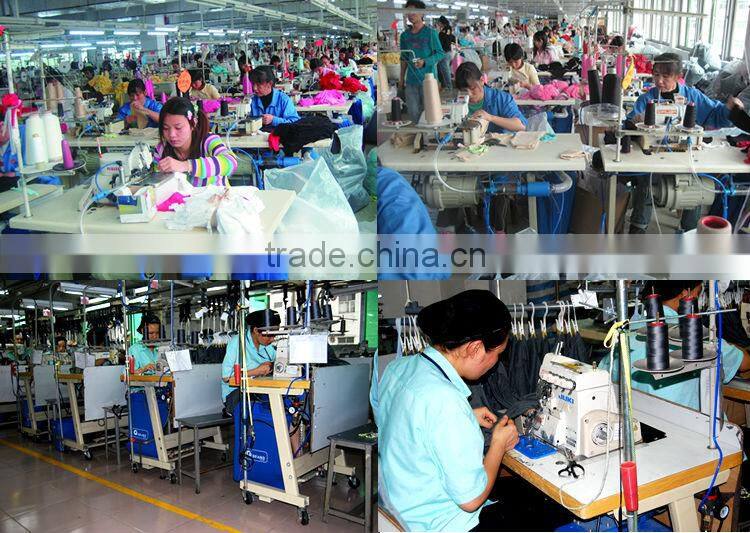

Factory use cases :
