Specifications
Rebar Coupler 14-40mm Parallel Threading Rebar Couplers1.Material:45# carbon steel
2.Dia:14-40 mm
3.Tensile Strength:594 Mpa
|

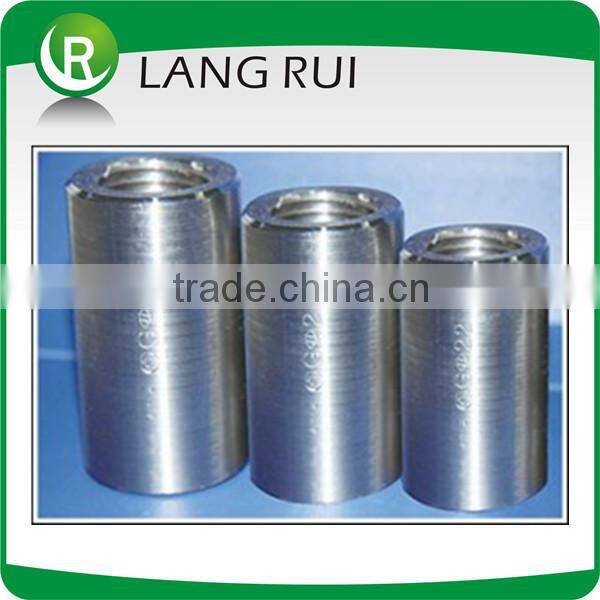

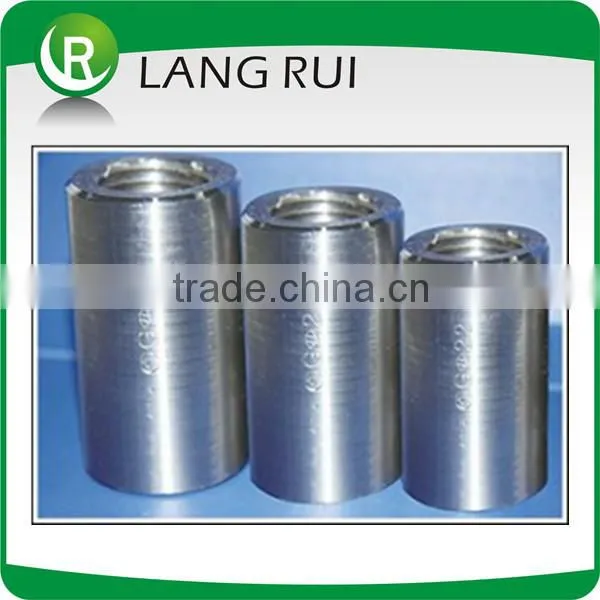

Rebar Coupler 14-40mm Parallel Threading Rebar Couplers
|
Name |
Value |
Brand |
Langrui |
Model |
LR-RC-326 |
Thread Pitch |
2.5mm,3.0mm,3.5mm |
Thread Angle |
75° |
Material |
45# High-quality Carbon Steel |
Out diameter |
12mm--40mm |
Length |
35mm--120mm |
Place of Origin |
China(mainland) |
Features of Reinforcing Steel Bar Connector |
Rebar Coupler Product Features:
* Designed and manufactured in compliance with ACI318, JGJ107, UBC 1997, BS8110, NF35-20-1, DIN1045,
ISO 15835.
*Full-Tension splice, 100% bar break under tensile tests.
*Easy operation, installation and maintainance.
*Full traceability of material origin and production batch.

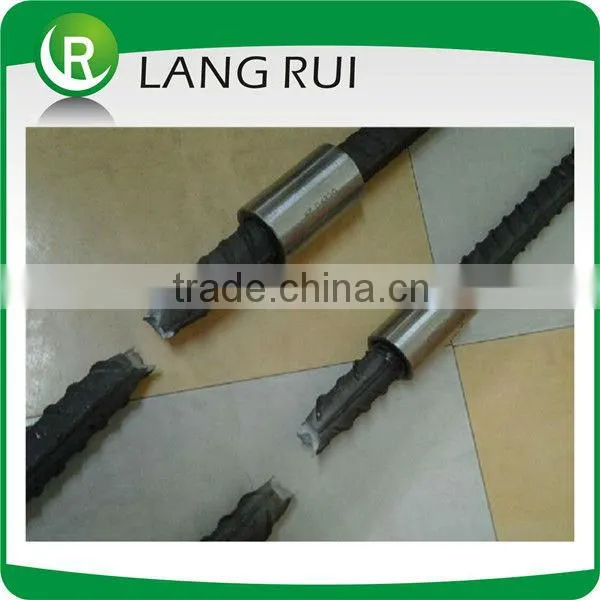

Working Principle:
First, we use upset forging machine to forging the end of rebar.
Second, we use Rebar Thread Cutting Machine to process thread on the forged end of rebar;
Third, we use Upset Parallel Thread Coupler to abuting joint two threaded ends of rebar.
The Parameter of Upsetting Rebar Coupler:
|
Specification |
Net Weight (kg) |
Thread Pitch (mm) |
Thread Angle |
|
Standard type |
Outer Diameter(mm) |
Length (mm) |
|||
Φ14 |
Φ21.0 |
40 |
0.0705 |
2.5 |
75°/ 60° |
Φ16 |
Φ24.0 |
43 |
0.0936 |
2.5 |
75°/ 60° |
Φ18 |
Φ27.0 |
47 |
0.1286 |
2.5 |
75°/ 60° |
Φ20 |
Φ31.0 |
52 |
0.1938 |
2.5 |
75°/ 60° |
Φ22 |
Φ33.0 |
57 |
0.2296 |
2.5 |
75°/ 60° |
Φ25 |
Φ37.0 |
63 |
0.3106 |
3 |
75°/ 60° |
Φ28 |
Φ41.0 |
68 |
0.4024 |
3 |
75°/ 60° |
Φ32 |
Φ47.0 |
76 |
0.5979 |
3 |
75°/ 60° |
Φ36 |
Φ54.0 |
84 |
0.8854 |
3 |
75°/ 60° |
Φ40 |
Φ59.0 |
90 |
1.1500 |
3 |
75°/ 60° |

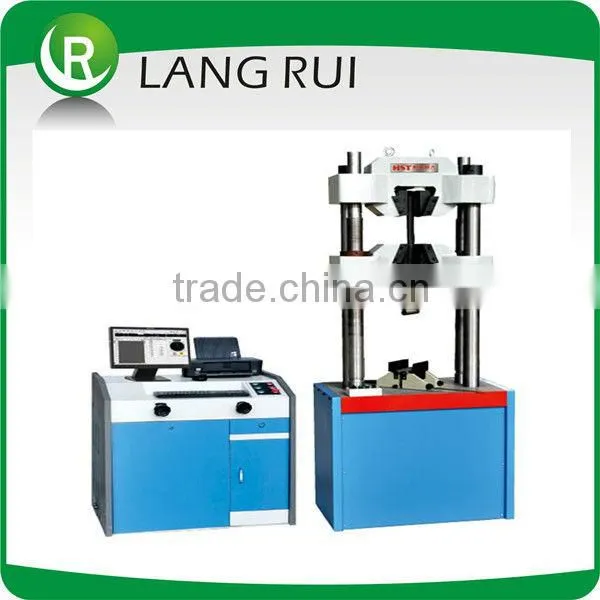

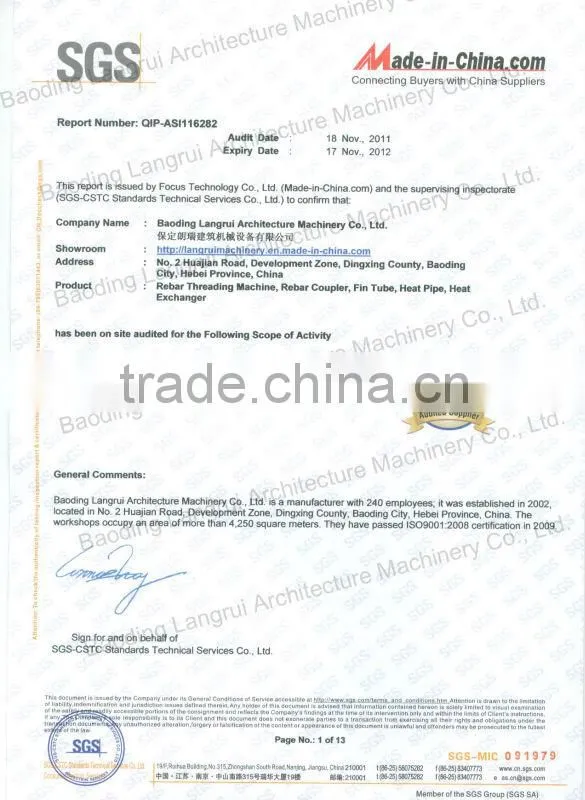

3. Certificate and Third Party Tested

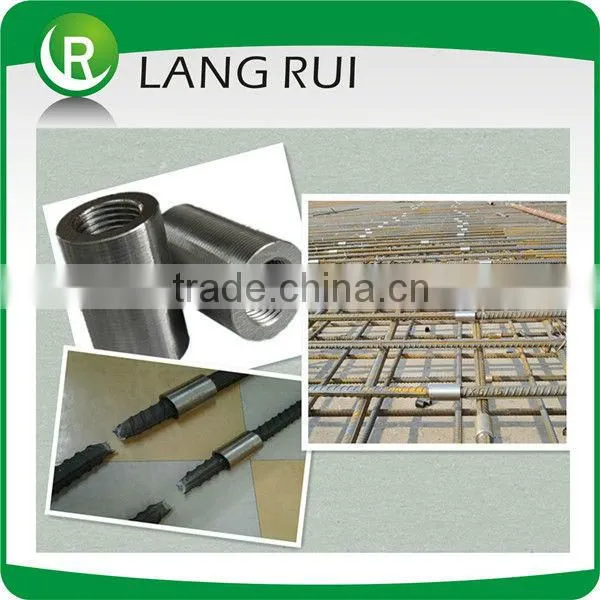

Application |
Steel Bar Thread Fasteners used to rebar mechanical splicing.
1. Steel Bar Thread Fasteners type:Paralleled type,left hand type,right hand
type,right hand left hand type and reducing type.
2.Range of application:Suitable for rebar of HRB335 and HRB400.Diameter
from 14mm to 40mm.

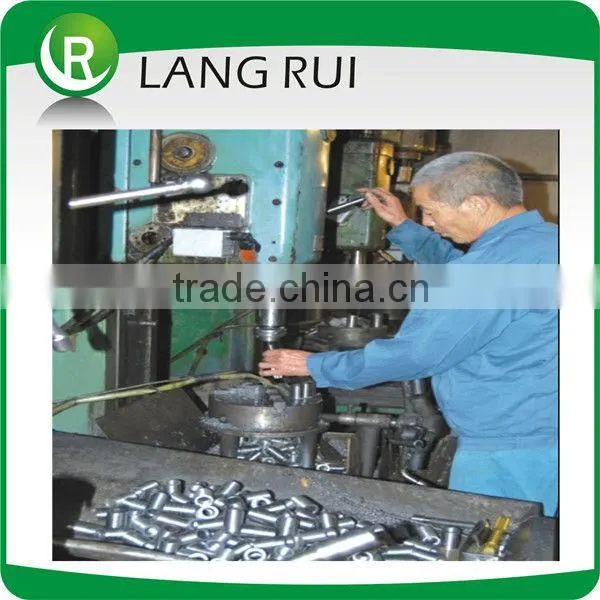

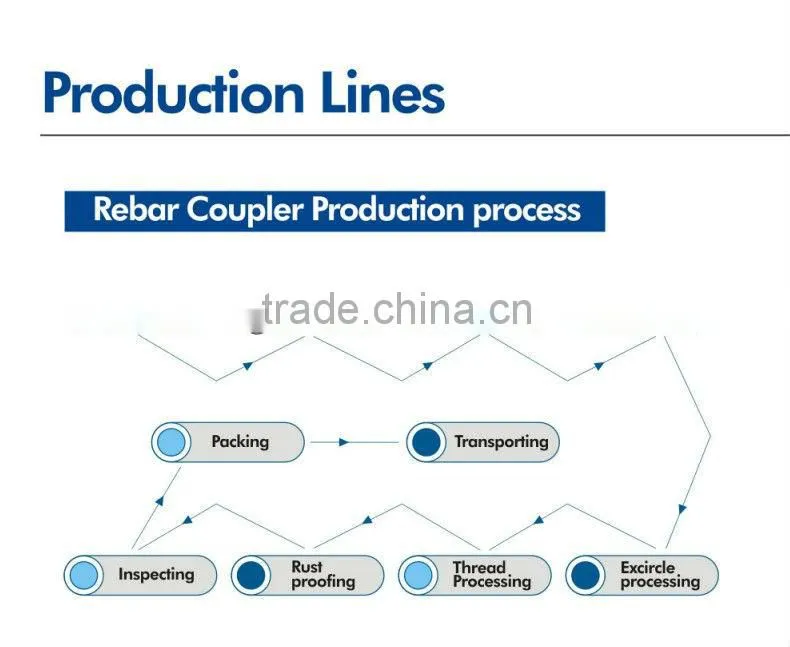

Production Process |

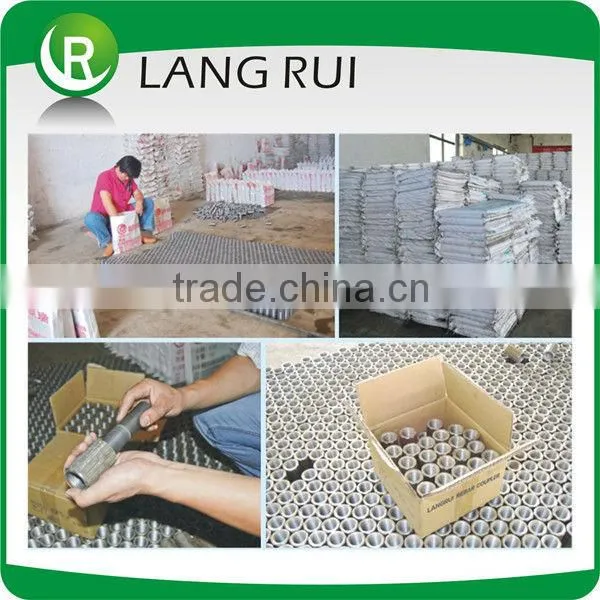

packing inspection |
The rebar sleeves are packed with nilon bag.Couplers are not easy to rust.
