Specifications

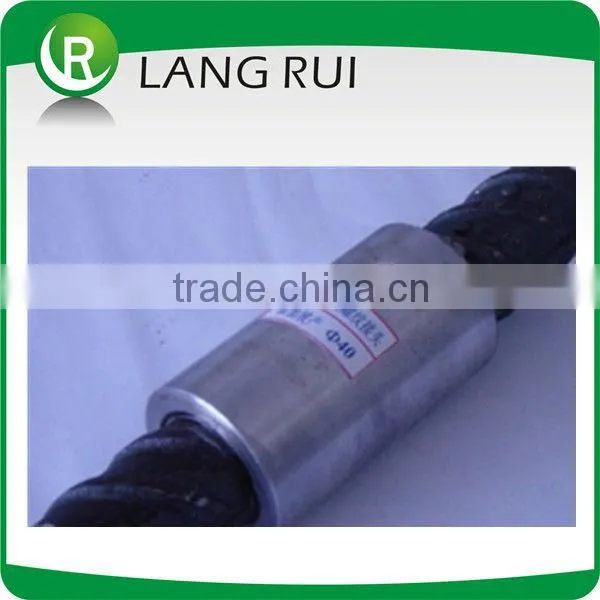

High Rise and Bridge Steel Building Material Rebar Coupler1.Material:45# carbon steel
2.Dia:14-40mm
3. MOQ:1000pcs
High Rise and Bridge Steel Building Material Rebar Coupler |
Name |
Value |
Brand |
Langrui |
Model |
LR-RC-401 |
Thread Pitch |
2.5mm,3.0mm,3.5mm |
Thread Angle |
75° |
Material |
45# High-quality Carbon Steel |
Out diameter |
12 mm--40mm |
Length |
35mm--120mm |
Place of Origin |
China(mainland) |

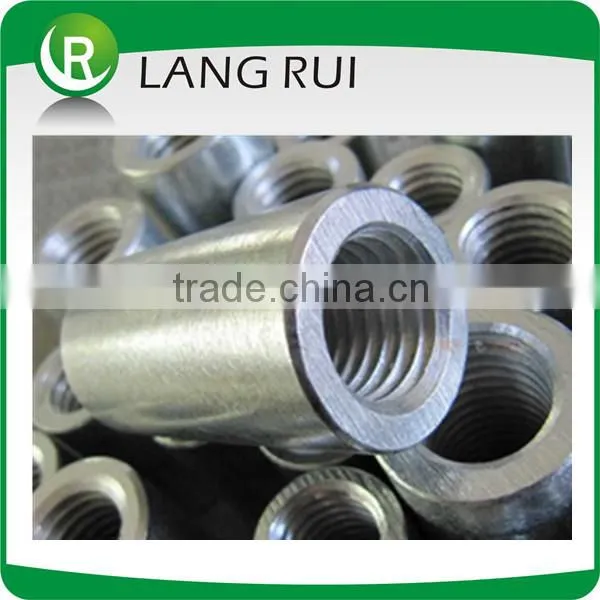

Standard Upsetting Rebar Coupler
reinforcing steel bar coupler / female threaded coupler / threaded rod couplers / steel tube
couplers / rebar coupler / steel bar coupler / rebar splicing coupler
1. Introduction
- The Rebar Coupler is used for Mechanical Bar Splicing(14mm-40mm) in construction with high strength
- We can supply it according to the customer require or drawing or sample. If you are interested it, please do
not hesitate to contact us.
2. Details of products
- Nomal material: Carbon steel
- Dia.12mm to 40mm.
- Raw Material:45# high-quality carbon structural steel.
- Type: Standard Type, Left-Handed&Right-Handed Type, Reducing Type.
- Tensile strength could reach 110% of parent material.
- Suitable Rebar: HRB335,HRB400,HRB500 and Equivalent Rebars.
- Dimensions:
Steel bar Dia. (mm) |
Out Dia. of Coupler(mm) |
Length of Coupler(mm) |
Dimension of thread(mm) |
| 12 | 22 | 30 | M14x2.0 |
| 14 | 24 | 34 | M16x2.0 |
| 16 | 26 | 40 | M20x2.5 |
| 18 | 29 | 44 | M22x2.5 |
| 20 | 32 | 48 | M24x3.0 |
| 22 | 36 | 52 | M27x3.0 |
| 25 | 40 | 60 | M30x3.5 |
| 28 | 44.5 | 66 | M33x3.5 |
| 32 | 50 | 72 | M36x4.0 |
| 36 | 56 | 80 | M39x4.0 |
| 40 | 62 | 90 | M45x4.0 |
Relate Test:
1).Tensile Strength=1.1*Tensile Strength of Rebar (Usually more than 600Mpa)
2).Fatigue Test: After 2 million times of fatigue strength test, connection is in good condition
Test result: broken bar:
3. Style and Function
- End upset forging parallel thread
- Be used to link steel bar connected
- Color: According to requirement
- Can be used to joint rebar with diameter 12mm to 40mm
- Straight thread inside the adapter sleeve
- High intension of tie-in and 100% exerted grade reinforce steel bar
connection technology guideline
- Power adaptability may fully meet varies inquires of steel bar reinforcing
technology
- Not limited to climate, whole day construct insures time limit for a project
- Stable quality, can be measured and eyeballed at any time
- When connected, only use cannulation and spanner, don't use any energy
source and Equipment
4. Product Advantage
The raw material is 45# high-quality carbon structural steel.
Strict quality control. self-inspection, exchange inspection, sample inspection , 100% inspection
etc. reject rate
lower than 0.6%.
Tensile strength could reach 800 to 900Mpa. Normal steel,for example, HRB335,the tensile
strength reaches
500.5Mpa is OK.
Our rebar couplers are suitable for steels of different countries.
We could pack the goods according to customer's special request.
Simple to operate.
5. Remarks
This kind of end upset foging parallel thread coupler can link steel bar Dia. from 12mm to 40mm.
The tensile strength of splicing can reach 1.1 times of the steel bar's. 100% reach bar break.
It widely used in key and big construction.
It meets Chinese standard JGJ107-2010,JG171-2005; American standard ACI318-2008 etc.
Application |
Steel Bar Thread Fasteners used to rebar mechanical splicing.
1. Steel Bar Thread Fasteners type:Paralleled type,left hand type,right hand
type,right hand left hand type and reducing type.
2.Range of application:Suitable for rebar of HRB335 and HRB400.Diameter
from 14mm to 40mm.
Production Process |
packing inspection |
The rebar sleeves are packed with nilon bag.Couplers are not easy to rust.
