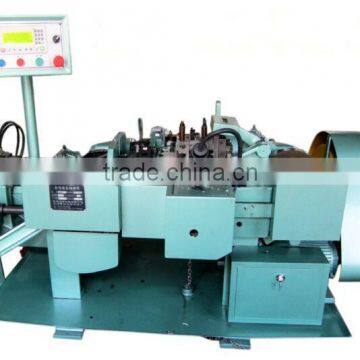

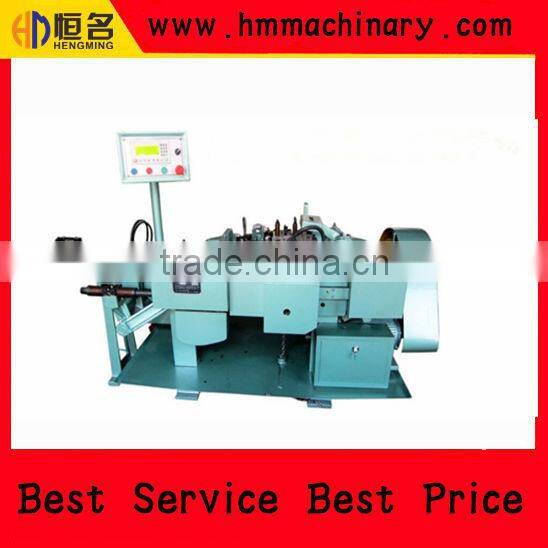

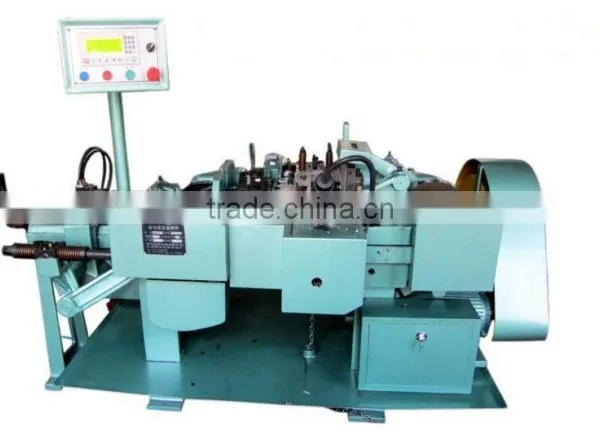

ZLB-8 Chain Automatic Bending Machine
Chain Automatic Bending Machine is designed and developed by ourselves taking foreign advanced technologies for reference. It is a mechanical and electrical machine. It completes the binding work of chain links through more than 20 actions including disk materials transportation, notching, cutting, bending, clamping and shaping, etc. It is highly automated and it can be hand and inching operated or fully automatic. It operates steadily and dependably and is easy for operation and maintenance. It has complete accident protection measures. It adopts steeples speed control of transducer.Its main performance indexes have reached the level of foreign products of the same kind. It is adaptive to the bending of load circle chains and also can be used for the bending of tire chains, decoration chains, binding chains,anchor chain and chains for mines and other circle chains.
Specification Of ZLB-8 Chain Automatic Bending Machine
Ser. |
Name of Item |
ZLB-8 |
1 |
Diameter of Wire Rod |
¢4-¢8mm |
2 |
Efficiency |
40-60sections/min |
3 |
Maximum Link Length |
40mm |
4 |
Maximum Link Width |
32mm |
5 |
Maximum Cutting Length |
130mm |
6 |
Lubricating System |
Equipped automatic Ingoiling system |
7 |
Vareable Ways |
Transducer, inpit frequency 50Hz, output frequency0-400Hz |
8 |
Source Pressure |
≥0.6Mpa |
9 |
Pneumatic Working Pressure |
0.45-0.55Mpa |
10 |
Rated Power |
4KW |
11 |
Size |
2500mm*1500mm*1300mm |
12 |
Total Weight |
2000kg |

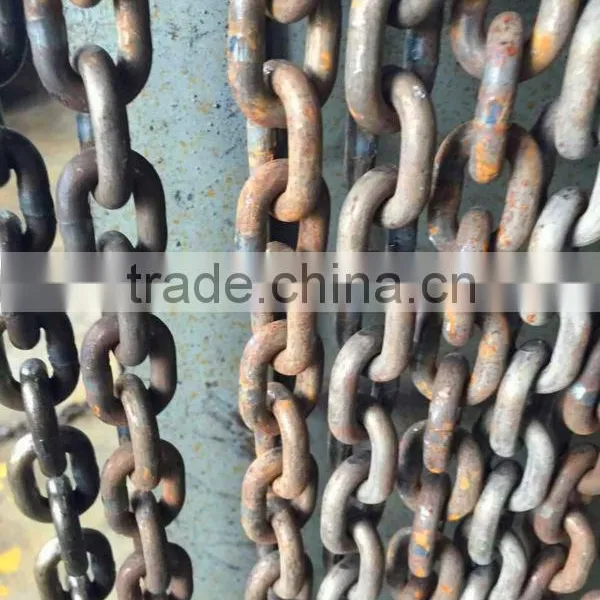

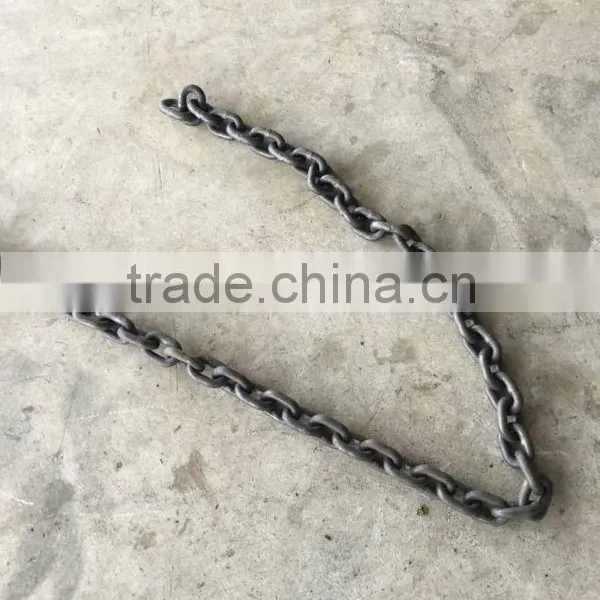

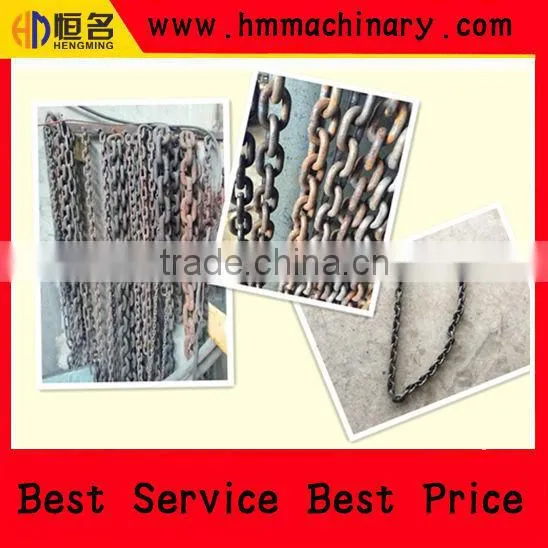

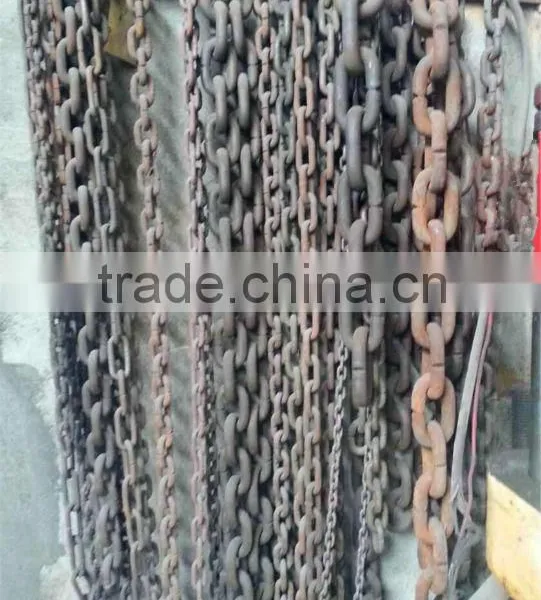

The Products Of ZLB-8 Chain Automatic Bending Machine
The Reasons Of Choosing ZLB-8 Chain Automatic Bending Machine
If You Like Our ZLB-8 Chain Automatic Bending Machine, Pls Contact Us
