High Processing Capacity Sand and Gravel Trommel Screen

High Processing Capacity Sand and Gravel Trommel Screen photo-1
High Processing Capacity Sand and Gravel Trommel Screen photo-2
High Processing Capacity Sand and Gravel Trommel Screen photo-3

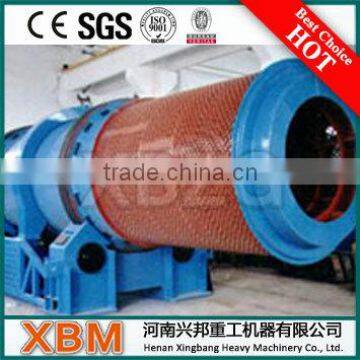

High Processing Capacity Sand and Gravel Trommel Screen photo-4

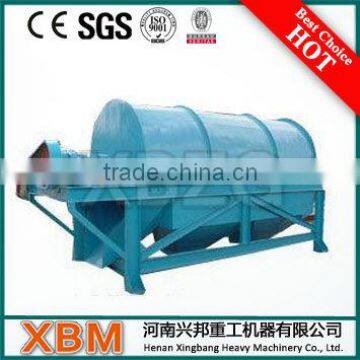

High Processing Capacity Sand and Gravel Trommel Screen photo-5

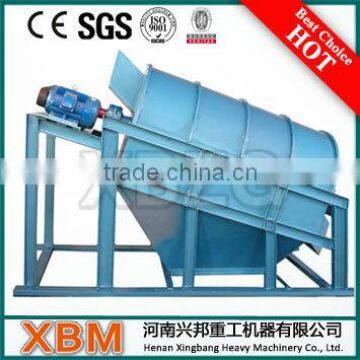

High Processing Capacity Sand and Gravel Trommel Screen photo-6
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, drum screen
Application:
Ore
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, drum screen
Application Ore
Place of Origin Henan, China
Brand Name Xingbang
Model Number GTS-15
Voltage as your local voltage
Power(W) 5.5 kw
Dimension(L*W*H) depends on model
Weight 4.5tons
Certification ISO, CE
Warranty 14 month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

trommel screen:
1. long service life
2. no noise
3. easy operation
4.saving eneergy

High processing capacity sand and gravel trommel screen



 Working principle of trommel screen:

 The rotary drum device is connected with the motor by shaft coupling through motor reducer, and is driven by the motor to rotate around the axis shaft line. When the materials flow into the rotary drum device, as a result of the inclination and rotation of the rotary drum device, the materials on the screen surface will rotate and roll, finally the qualified materials (undersize materials) will be discharged through the screen mesh which is installed around the excircle of the rotary drum, and the unqualified materials (oversize materials) will be discharged from the end of the rotary drum. The materials rotate and roll in the rotary drum, so the materials stuck in screen pores can be ejected out to prevent the screen pores from being blocked



High processing capacity sand and gravel trommel screen





 Application of trommel screen:

 1.Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.

 2.Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.

 3.Chemical,Mineral selecting Industry: suitable for grading and classifying lump, powder substance.

 4.Metallurgy, construction and other industries



Specifications of trommel screen :



Type

Annual output(t)

Per hour capacity(t/h)

Outside diameter(mm)

Length(m)

Motor power(KW)

GTS-3

30,000

10.4

Φ1200

3.5

4

GTS-5

50,000

13.8

Φ1200

4

5.5

GTS-10

100,000

27.8

Φ1400

5

7.5

GTS-15

150,000

47.7

Φ1500

6

11



High processing capacity sand and gravel trommel screenHigh processing capacity sand and gravel trommel screen
