Fast Roller Changing 405mm OD 2 Layers Single Facer
Spec for Rollers:
1,Corrugated Rollers:
OD |
Up Roller:Φ405mm Down Roller:Φ345mm Different OD make sure to corrugated low gsm paper flute not easy to be broken |
Material |
48CrMo high quality alloy steel, rigidity HRC55°-58° |
Processing Way |
The surface of upper-lower roller is plating chrome, annealing, hardening and tempering, surface grinded |
Fulte Type |
(U/V) ACBEF |
Material band or origin |
Henan Jiyuan Iron & Steel |
Heating way of the reel paper |
Steam heating |
Rollers Changing |
10-15 minutes changing, use trolley to feed inside of the single facer, fix on the stand of the machine, only buttons and switches to change the corrugated rollers. |
2,Press Rollers:
OD |
Φ495mm |
Material |
medium steel (MS)45# |
Processing Way |
The surface is grinded then plating chrome, hardening and tempering(With Buffer) |
Control Way |
Penumatic cylinder control of the Lifting Up-down |
Material band or origin |
Zhong Yuan Special Steel |
3,Glue Rollers:
Diameter |
Φ320mm |
Processing Way |
Surface of glue roller is grinded, then with 25 line rut type net dot,then plating chrome Surface of glue banlance roller is grinded then plating chrome |
Control Way |
Penumatic cylinder control of the Lifting Up-down |
Glue Supply |
Glue circulating system(storage tank+glue pump) |
4,Preheater Rollers:
OD |
UP Roller: Φ402mm |
Material |
seamless steel tube |
Material band or origin |
Tianjin Iron & Steel |
All connected by flexible metallic tubes | |
Common Spec:
Max Working Speed |
200m/min |
Width of Paper |
1800mm,2200mm,2500mm |
Style of Transmit cardboard |
Vacuum Cover adsorbable style, High pressure Draw fan.with wind control Adjusting & noise deadening device. |
Style of Control Roller |
Pneumatic( high steady pneumatic rubber ring control system) control the upper roller, pressure roller, with air pressure buffering system) |
Lubrication |
Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller’s gears |
Style of adjusting glue quantity |
Electric adjust,Glue amount auto track, glue system can work independently to avoid the glue dry when the main machine break. |
Mobile Glue System |
Easy to wash, maintain, mend. |
Glue Width Adjusting |
Electric adjusting |
Driving Way:With frequency inverter | |
Pre-spayer to adjust the moisture & temperature of the flute paper. | |
Spec of Motor:
Motor of Main power:
Main Motor: 45kw Nominal voltage: 380V 50Hz Continuous (S1) working Type
Fan Motor: 18.5kw Nominal voltage: 380V 50Hz Continuous (S1) working Type
Glue Adjusting Reducer: 100W Nominal voltage: 380V 50Hz Short (S2) working Type
Width Adjusting Motor:250W Nominal voltage: 380V 50Hz Short (S2) working Type
Glue Pump Motor:2.2kw Nominal voltage: 380V 50Hz Continuous (S1) working Type
Corrugated Flute Type:
| Type | A | C | BC | BC2 | B | D | DE | E | F |
| Shape | UV | UV | UV | UV | UV | UV | UV | UV | UV |
| QTY in 300mm | 34±2 | 38±2,40±2 | 44±2 | 48±2 | 50±2 | 66±3 | 75±3 | 96±4 | 124±10 |
| Hight of Teeth | 4.6-4.9 | 3.6-3.9 | 3.0-3.4 | 2.8-3.2 | 2.6-2.9 | 1.9-2.1 | 1.5-1.9 | 1.1-1.8 | 0.7-0.8 |

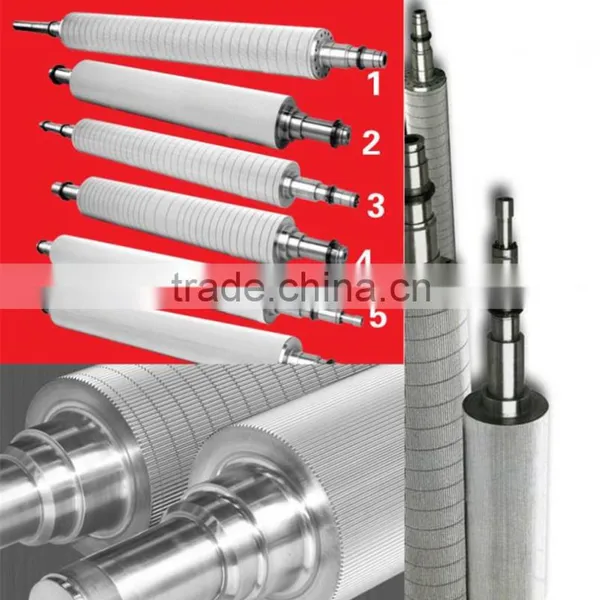

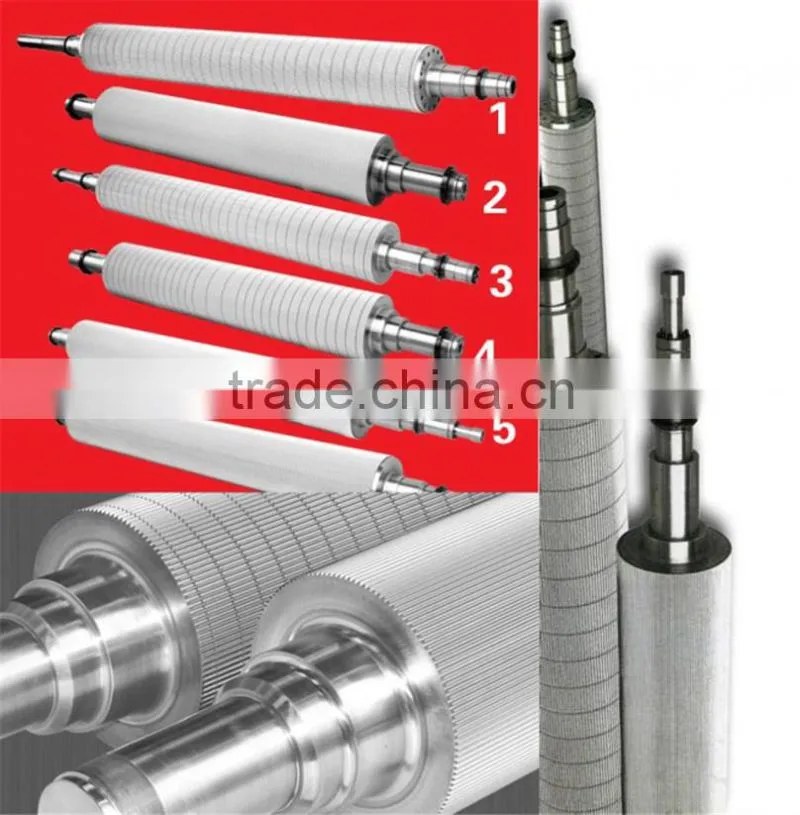

Photo of Corrugated Roller:

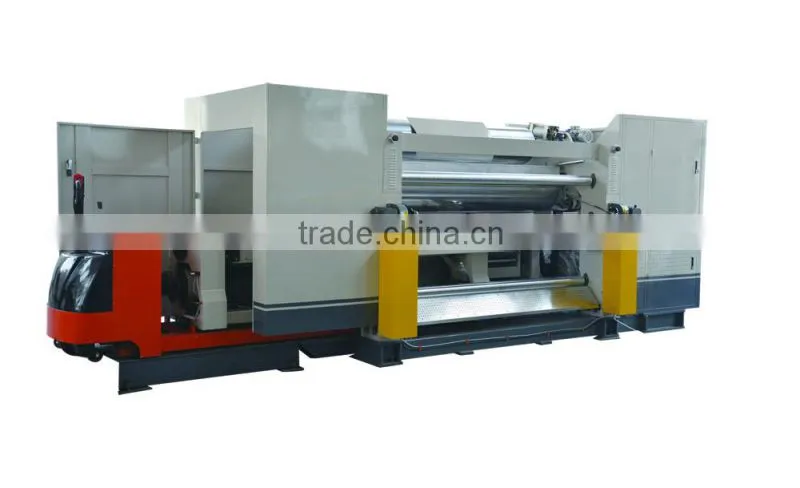

More Detailed Part of Single Facer:

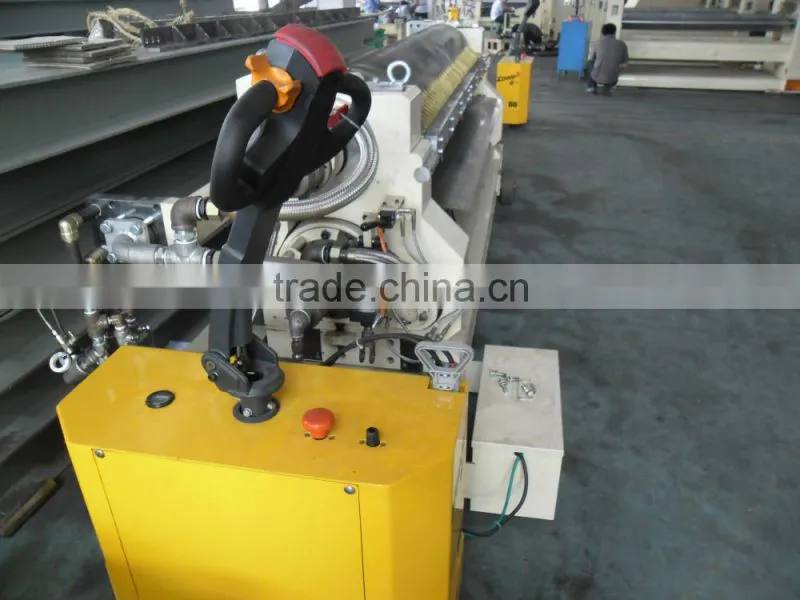

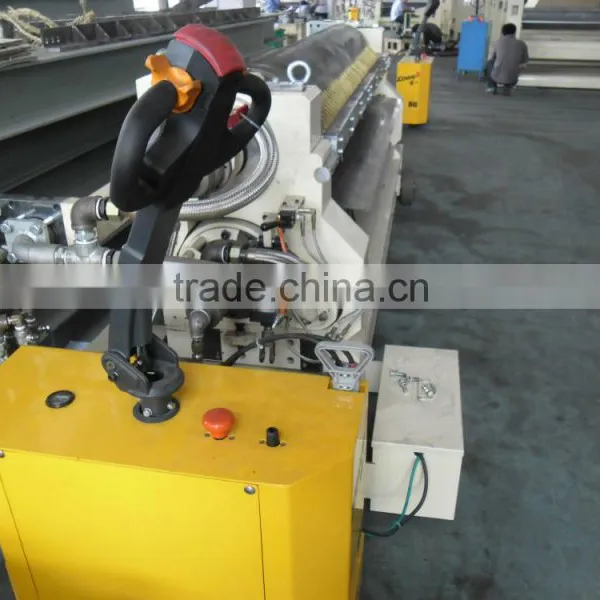

1,Fast Roller Changing Trolly:

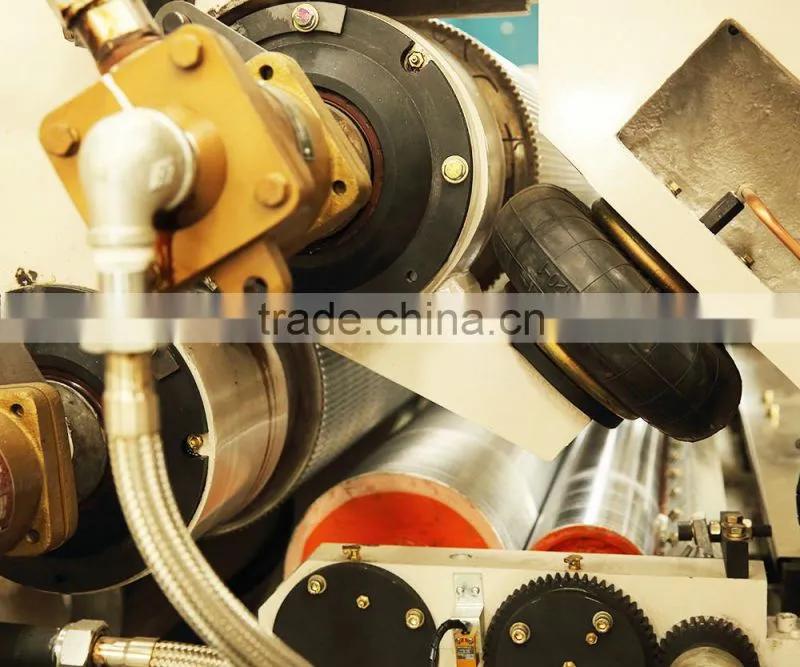

2,Air Rubber Ring:

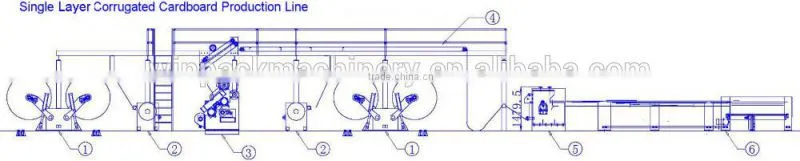

Flow of High Speed of Single Facer Line:

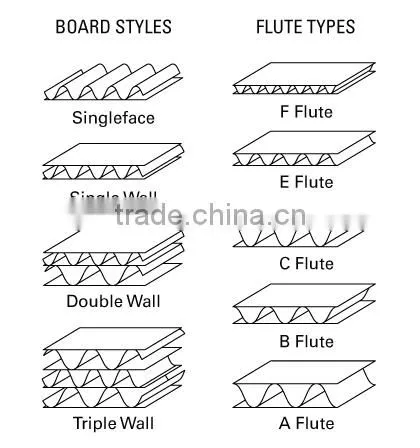

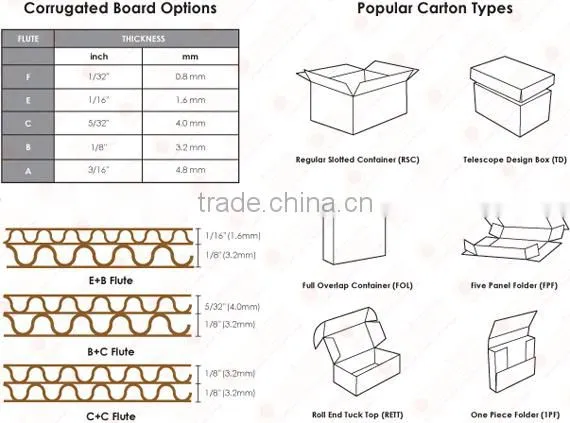

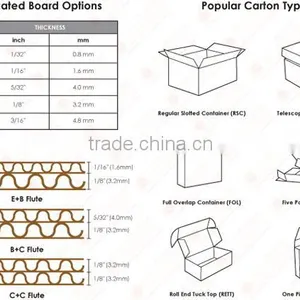

Different Corrugated Wall Type:

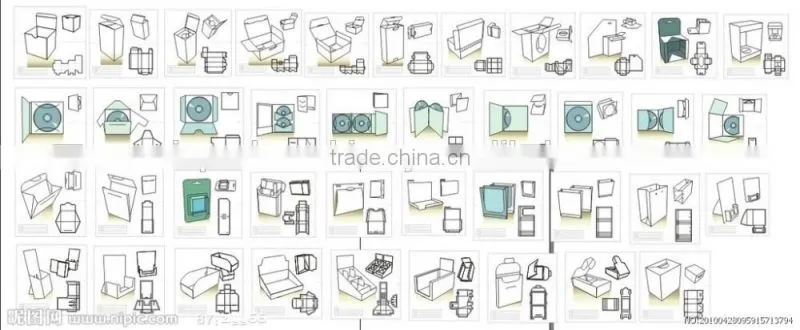

Production Type:
Small Color ( Offset Printed then Laminated the Single Facer Sheet to Become ) Corrugated Box:

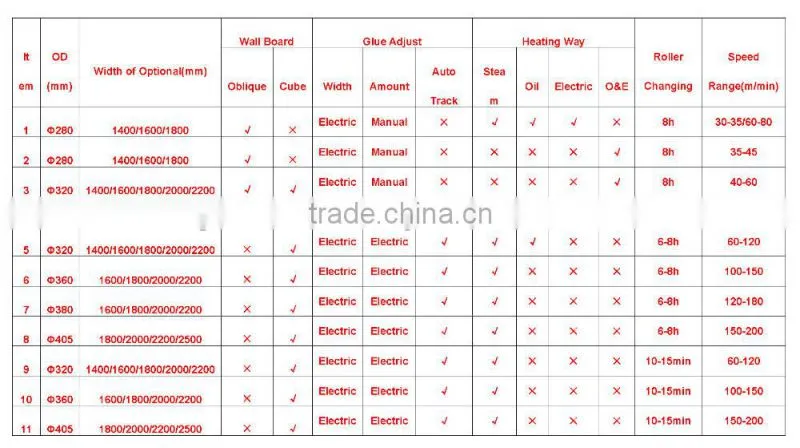

Common Spec & Option for Single Facer from Our Factory:
