Home > Products > Overburden casing drilling system > 219 Concentric Casing Drilling System(Symmetrix)
219 Concentric Casing Drilling System(Symmetrix)
- shanghai shenzhen guangzhou etc as your requested
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Teamwhole | |
| Model Number | Overburden casing system for 219mm casing tube | Type | Other, Drill Bit, center drill bit | |
| Machine Type | Drilling Tool | Certification | Other, ISO9001 | |
| Processing Type | Forging | Use | Other, overburden unstable rock | |
| Material | Other, alloy steel |
Product Description
1.Parts Pictures
(Outer Dia.of casing tube:219mm,Inner Dia of casing tube:199mm-206mm)
1)Casing shoe:(Min.inner Dia.of casing shoe:184MM)
2)Reamer:(Reamed Dia.:234MM)
3)Pilot bit:(Dia.:165MM)

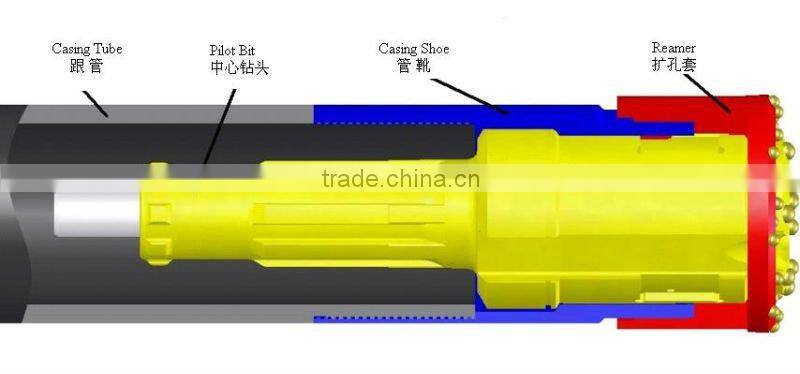

2.Structure
3.Aplication Range
It is suitable for drilling water wells,geothermal wells, short mircopiles medium mini-type grouting hole of building, dam and harbour project.
4.Design Principles
Make the casing follow easy and the equipment and operation simple
5.Outstanding Advantages
Simple structure,simple operation,reliable quality,retrievable drilling tools,long service life.
6.Other Specifications
| Process |
| Packing |
| Quality Warranty |
Our company response for any quality problem caused by material or machining defect.
| Application |
Excellent for water well drilling, geothermal hole, hole blasting and etc.
| More Products |
| About us |
| The Tenth Anniversary Celebration |
| Exhibition Photos |
| Our Service |
Teamwhole offers the market most comprehensive range of DTH hammers. There are hammer solutions for water well drillers, miners and quarry drillers as well as for contractors in construction, oil and gas. Teamwhole's DTH hammers are available in holes sizes from 3.5 to 48 inches in diameter.
Teamwhole's flexible and stable ODEX system wins great reputation in users. Reliable quality,innovative design and professional service ensure the fulfill of many projects.
We even offer reverse circulating RC hammers for exploration. We are the earliest in China for RC since 2004. Now the RC hammer and bits are delivered to Australia,South Africa,Russia and Mongolia in large scales.
More than 30 experts supports the technology and enhance the development.
| Certifications |
| Markets |
Northern Europe: foundation, piling
Western Europe: water well and geothermal drilling
Russia: Oil, infrastructure and mining.
South east asia: mining and geothermal
South Africa: mining and water well drilling
Middle east: water well drilling
Oceania: mining, exploration and water well drilling
South America: water well drilling and mining
