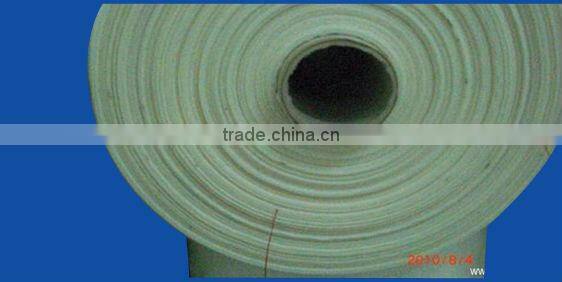

NMO15 Nylon6 Monofilament filtering mesh, syringe filter
Product Description
Syringe Filter
-
Technical parameters
Item
NO
JPP189
material
Nylon6 Monofilament
mesh count
Mesh/cm
Mesh/inch
189
480
yarn diameter
micron
43
mesh opening
micron
15
thickness
micron
78
weight
gsm
60
open area
%
7
width
m
1.26
- Features
1.Even hole size,high precision of filtration
2.Smooth filament, immersion resistance,no material drop off
3.Stable chemical and physical properties
4.Widely used in liquid filtration,especially in making tea and coffe bags
- Certificates
1.Standard of quality:ISO9001:2008
2.Food approved:FDA,EC,NO SILLICON
3.Environmental certificate:ROHS
4.Material safety:MSDS,SVHC
5.Raw material test:PA66 MATERIAL TEST REPORT
|
- Finishing process
HTHP ultrasonic cleanling,high tempreture stabilized finish,unti-infiltration water treatment in 10000-grade purification workshop.
|
- Testing

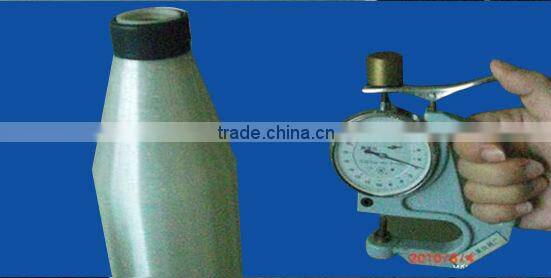

a. Thread measuring
selecting the most suitable fibers for intended application
|
b. Check the mesh count

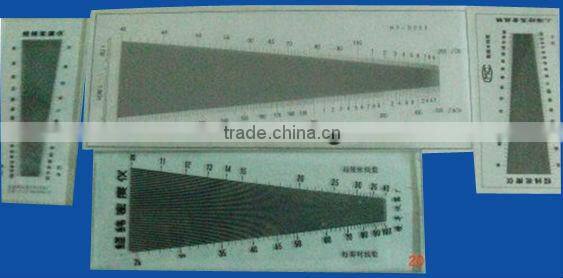

measuring the mesh count by pick glass

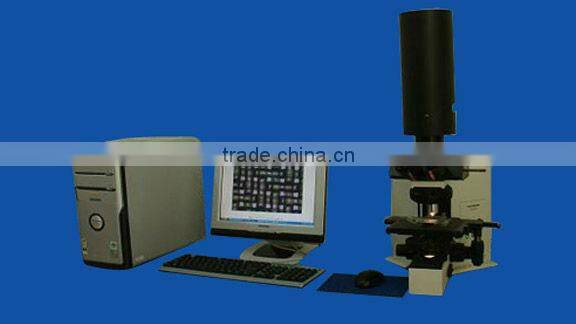

c. Check the mesh opening
measuring the mesh opening & thread diameter by microscope
d. One splice marked with red thread

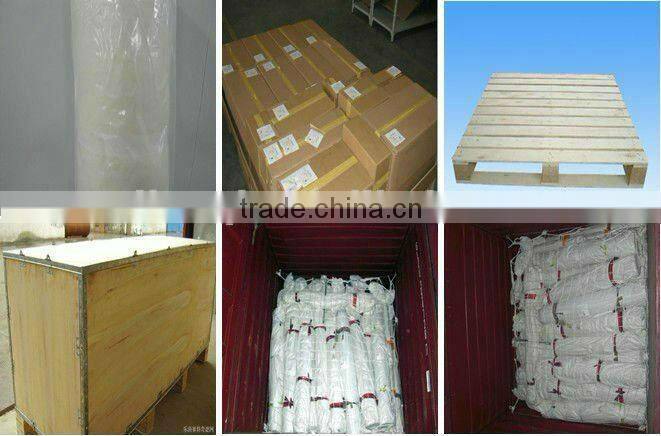

- Package
Each roll packed in plastic bags,then in weaving bag or carton or woden case.It also can be customized
|

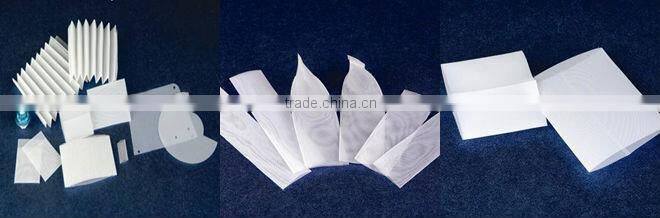

- Service
1.Heat cutting
2.Laser cutting
3.Ultrasonic welding
4.Raising
5.Calendaring
|

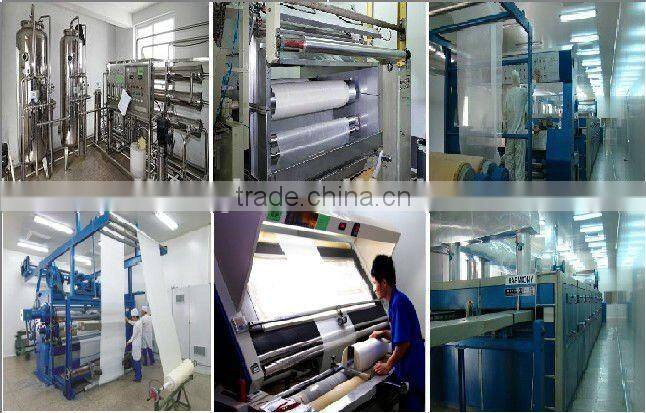

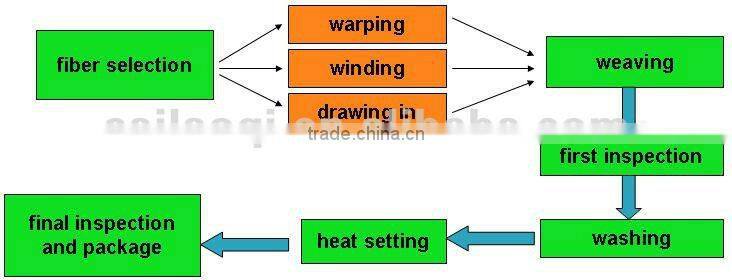

- Manufacturing process
|
-
Company Information
Expo
1.Nov. 15th 2011- Nov. 17th 2011 ,Filtration 2011held in Chicago,USA
|
2.Mar. 22th 2011- Mar. 24th 2011 ,FILTECH2011held in Wiesbaden,Germany
|
