Technical data of X(S)M series internal mixer(mixer, internal mixer):
(1). The mixing chamber is of jacket structure with quick and better heating/cooling effects, the inner wall is coated with hard chrome for long service life.
(2). Build-up welding of hard alloy for the top and two sides of the rotor ridge, all the working surfaces are coated with hard chrome, good appearance and abrasive resistance. The cooling/heating medium can pass through the hollow of the rotor.
(3). Constant hydraulic pressure seal structure is used for the top of the rotor, the seal effect is good with long service life thanks to high pressure lubrication, automatic alarm for used up of oil;
(4). The upper bolt relieves the pressure automatically to protect the machine and for long service time if the machine works for too long under overload condition.
(5). The working surfaces of upper and lower bolts are coated with hard chrome, good appearance and abrasive resistance. The cooling/heating medium can pass through the inner hollow of the lower bolt.
(6). A rotary oil cylinder is used for the discharge door, smooth running and accurate positioning.
(7). A speed reducer of hard teeth surfaces with two output shafts is adopted, gear coupling or universal coupling is used. The transmission is smooth with high efficiency, low noise level, long service life.
Technical Data: Technical data:
Type/ description X(S)M-50/40 X(S)M-75/40 X(S)M-100/40
Total capacity of mixing chamber (L) 50 75 100
Speed of master rotor (r/min) 40 40 40
Power of master motor (kW) 75 160 220
Speed ratio of rotor 01:01.7 01:01.2 01:01.2
Working pressure of the compressed air kg/cm 2 6-8 6-8 6-8
Dimensions (mm)
Length 4225 5910 5835
Width 1980 2385 2320
height 3180 4505 4400
Weight (t) 11 16.8 24

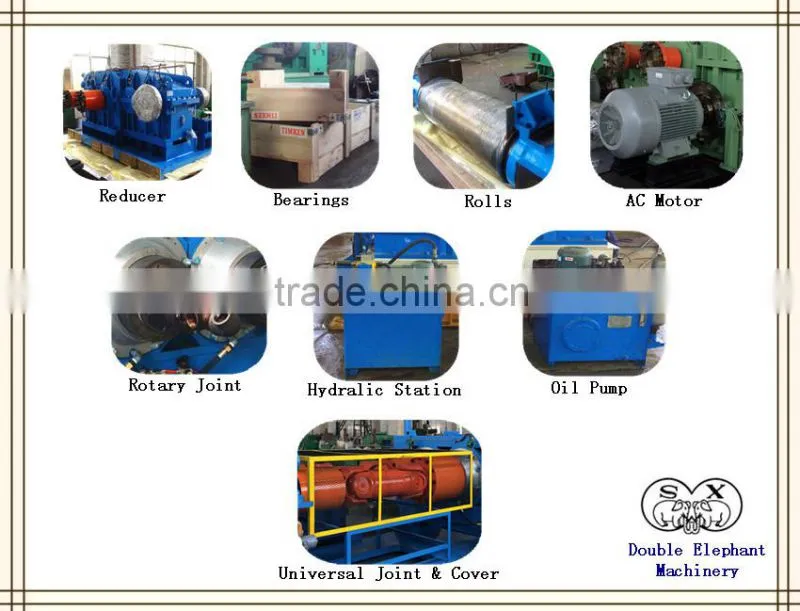

Main Parts:
Welcome to visit !!!
Any request or question, pls feel free to contact me!
Laverder Shen
Wuxi Double Elephant Rubber & Plastics Machiney Co.,Ltd
Add: No.156 Houzhai middle road, Hongshan town, New district, Wuxi city, Jiangsu province, China
Cell:+86-15052223561
Tel:+86-510-88998022
Fax:+86-510-88990983
Web: .en
